Bradley Express SS Series Installation Manual

Lavatory system
Hide thumbs Also See for Express SS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SS-2N/ndt/STD/LSD-2
SS-2N/ndt/WH/LSD-2
215-1576 Rev. K; ECN 17-08-026
© 2018 Bradley
Page 1 of 15
5/15/2018

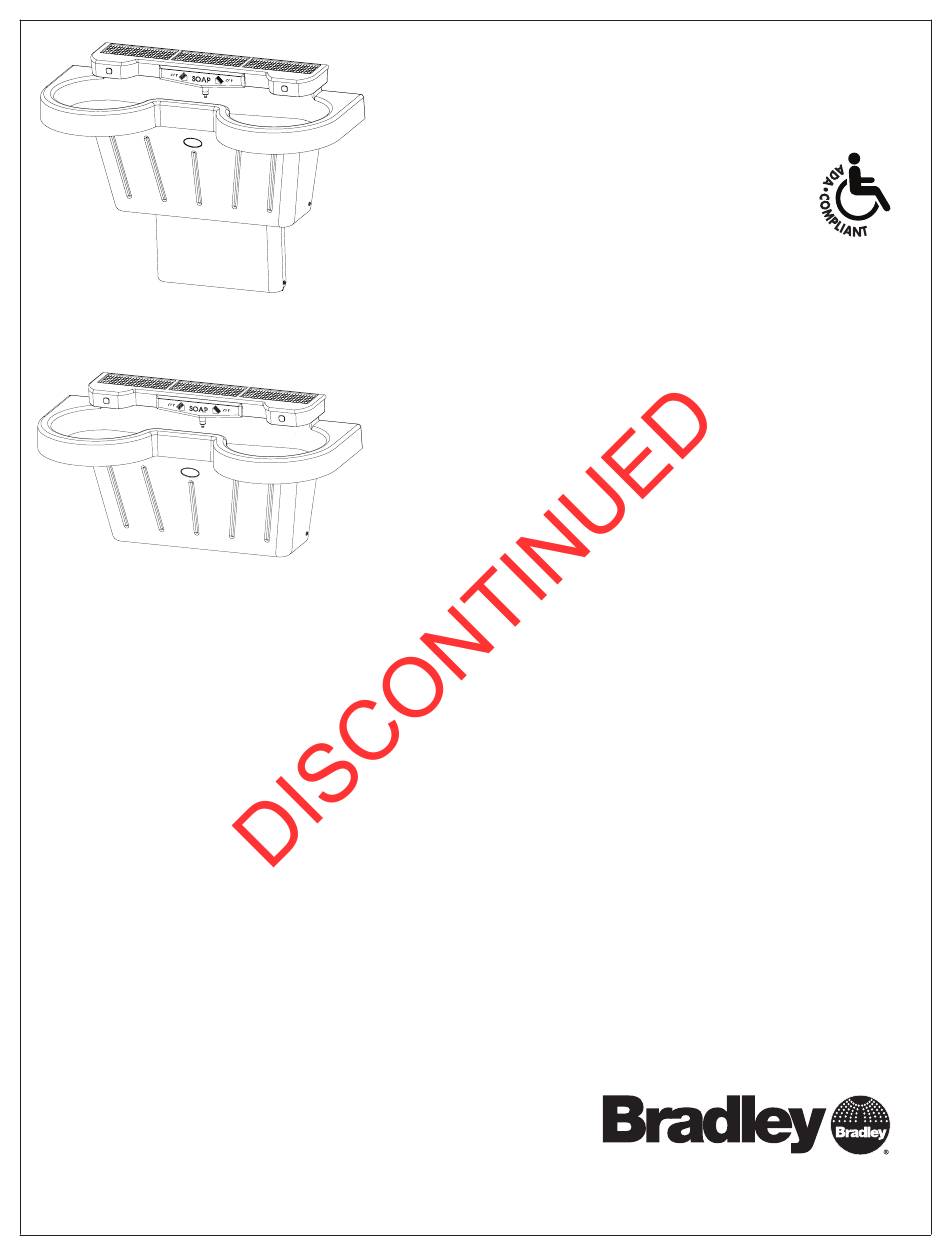

Installation
SS-2N/ndt/STD
SS-2N/ndt/WH
Express
Lavatory System SS-Series
®
Express Lavatory Systems are ADA and TAS compliant
U .S . Pat . Nos . 5,611,093, D447,224
Other Patents Pending

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . .2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . .4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .7-11
Solenoid Valve Troubleshooting . . . . . . . . . . . . .12
Navigator
®
Stop Valve Troubleshooting . . . . . . . . . . . . . . . .14
Soap Dispenser Maintenance . . . . . . . . . . . . . .15
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
. . . . . . .14
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express SS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley Express SS Series

Summary of Contents for Bradley Express SS Series

  • Page 1: Table Of Contents

    Soap Dispenser Maintenance . . . . . . . . . . . . . .15 215-1576 Rev. K; ECN 17-08-026 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2018 Bradley PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 15 5/15/2018 bradleycorp.com...

  • Page 2: Pre-Installation Information

    Overtightening fasteners can damage the Terreon material. Use caution when tightening bowl and sprayhead fasteners. ® Product warranties may be found in the “Products” section on our Web site at www. bradleycorp.com. Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 3: Components

    DRAIN PLUG (P16-072) HARDWARE 1/8" RUBBER WASHER (125-001DP) 1/4"-20 x 1/2" 1/4"-20 PAN HEAD WASHER SCREW (qty. 2) (qty. 2) P-TRAP (POLYPROPYLENE) TAILPIECE (160-389) (142-002DB) (269-1697) (129-056) OPTIONAL P-TRAP (CHROME-PLATED BRASS) (S29-094) Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 4: Supplies Required

    15" 10" (254mm) Radius (381mm) (381mm) 38¼" (972mm) Front View Standard Frame 7" (178mm) 21¼" (540mm) 30" (762mm) 36" (914mm) 38¼" (972mm) Front View Wall-Hung Frame 7" (178mm) 30" (762mm) 36" (914mm) Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...
  • Page 5 5 or 6 11½" (292mm) 8 or 9 (292mm) 36½" (927mm) 34½" (876mm) 32" 30" (813mm) (762mm) ⁄ " ⁄ " (219mm) 28" 26" (219mm) (711mm) (660mm) 11¼" 9¼" (286mm) (235mm) Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 6: Rough-Ins

    34" None Standard Height 34" None Wall-Hung 32" Subtract 2" TAS, Grades 6 through 8 or 9 31" Subtract 3" Juvenile Height 30" Subtract 4" TAS, Pre-K through Grades 5 or 6 Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 7: Installation

    ³⁄₈" bolts and 1" min. O.D. washers, two places. Do not overtighten. Tighten the pan-head screws Do not overtighten. Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018 SCUFF BASE FRAME AND DRAIN ASSEMBLY NOT SHOWN FOR CLARITY...
  • Page 8 Loosen but do not remove the two mounting screws holding the valve bracket to the frame. Slide the valve bracket up and lift it from the frame. Attach the stop to the tempered wall stub-out. Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...
  • Page 9 Reinstall the valve bracket. Connect the power supply cables from the power management module into the gang valve circuit board plugs (any connection order will work properly). Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...
  • Page 10 Pass your hand in front of each station’s sensor until all the air is purged from the lines and water is flowing smoothly. Reinstall the access panel. Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...
  • Page 11 . If there is inadequate lighting available in the location where the unit is installed, add additional lighting . If additional lighting is unavailable, the system may be converted to battery power . Contact Bradley and order Battery Pack Kit S45-2083 (one per station) . Improper Test for proper water pressure .

  • Page 12: Solenoid Valve Troubleshooting

    . SENSOR ASSY. COMPONENTS Nut, ½"-14 NSPM (110-115) Aerator Assembly (S05-180) Window Sensor Eyes (269-1241) Length of “A” = 36" (251-019A) O-Ring Length of “A” = 60" (251-019B) (125-157) Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 13: Mixing Valve Troubleshooting

    198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...

  • Page 14: Stop Valve Troubleshooting

    Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days .

  • Page 15: Soap Dispenser Maintenance

    To change soap, pour out all of the soap from the dispenser ans rinse with hot water several times until all residue is removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling. Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018...
