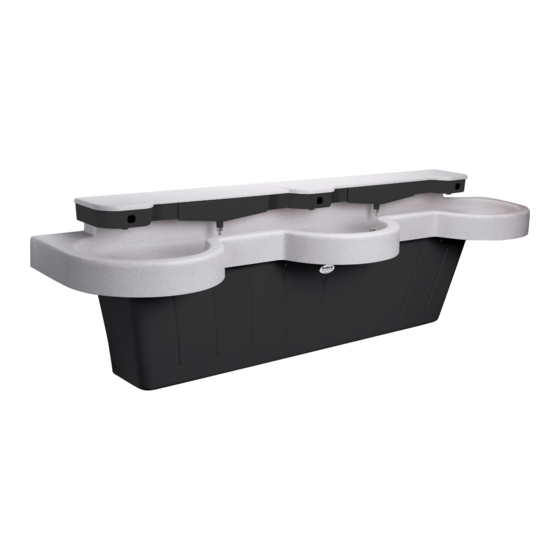

SS-3N/IR/STD/LSD-3
SS-3N/IR-WH/LSD-3
215-1493 Rev. G; ECM 11-08-011
© 2011 Bradley Corporation
Page 1 of 15
10/24/11
Installation
SS-3N/IR/STD
SS-3N/IR-WH
®
Express
Lavatory System SS-Series
Express Lavatory Systems are ADA and TAS compliant
U.S. Pat. Nos. 5,611,093, 5,369,818, D398,969
Other Patents Pending
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Sensor Assembly and Solenoid Valve Access . . . . . . . . 11
Solenoid Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . . 12
®
Navigator
Mixing Valve Troubleshooting . . . . . . . . . . . . 13
Stop Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 14
Soap Dispenser Maintenance . . . . . . . . . . . . . . . . . . . . . . 15
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
®
. . . . . . . . . . . . . 14
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Bradley Express SS-3N/IR/STD
Summary of Contents for Bradley Express SS-3N/IR/STD
-
Page 1: Table Of Contents
Soap Dispenser Maintenance ..... . 15 215-1493 Rev. G; ECM 11-08-011 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2011 Bradley Corporation PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 15 10/24/11 bradleycorp.com... -
Page 2: Pre-Installation Information
Product warranties may be found in the “Products” section on our Web site at bradleycorp.com. Special Note for Sprayhead/Bowl retrofi t to retrofi t new SS-3N sprayhead onto existing SS-3 bowl 2¼" (57mm) Drill hole Ø 1" (25mm) to 1½" (38mm). Existing Hole 1½" (38mm) 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011... -
Page 3: Components
#8-32 x 3/4" WASTE SHOE ROUND HEAD (111-062) MACHINE SCREW (160-276) P-TRAP (POLYPROPYLENE) (269-1697) WASTE TEE OPTIONAL WATER HEATER (111-063) EX95TMLB, 240/208 volts OPTIONAL P-TRAP (269-1767) (CHROME-PLATED BRASS) EX100TMLB, 277 volts (S29-094) (269-1768) Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11... -
Page 4: Supplies Required
30" (762mm) 68¼" (1734mm) Front View Standard Frame SOAP SOAP 8" (203mm) 51¼" (1302mm) 58" (1473mm) 64" (1626mm) 68¼" (1734mm) Front View Wall-Hung Frame SOAP SOAP 8" (203mm) 58" (1473mm) 64" (1626mm) 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011... - Page 5 5 or 6 11½" (292mm) 8 or 9 (292mm) 36½" (927mm) 34½" (876mm) 32" 30" (813mm) (762mm) ⁄ " ⁄ " (219mm) 28" 26" (219mm) (711mm) (660mm) 11¼" 9¼" (286mm) (235mm) Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11...
-
Page 6: Rough-Ins
None Standard Height 34" None Wall-Hung 32" Subtract 2" TAS, Grades 6 through 8 or 9 31" Subtract 3" Juvenile Height 30" Subtract 4" TAS, Pre-K through Grades 5 or 6 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011... -
Page 7: Installation
Do not tighten. Secure the bowl to the wall anchors with ³⁄₈" bolts and 1" min. O.D. washers, two places. Do not overtighten. Tighten the pan-head screws Do not overtighten. Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11... - Page 8 Loosen but do not remove the two mounting screws holding the valve bracket to the frame. Slide the valve bracket up and lift it from the frame. Attach the stop to the tempered wall stub-out. 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011...
- Page 9 Connect the ½" flexible the solenoid valve assembly. hose from the cold water supply stub-out to the hot water heater inlet. Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11...
- Page 10 START-UP NOTE: Wait two full minutes after making the power connection before using the lav. The sensors will take up to eight full minutes (while not in use) to adapt to the bowl if another object is detected during the two-minute start-up period. 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011...
-
Page 11: Sensor Assembly And Solenoid Valve Access
• To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body using the screws provided. Sprayhead INFRARED SENSOR Nut, ½"-14 NSPM Components 269-1608HP (110-115) Window (269-1241) Aerator Assembly (S05-180) O-Ring (125-157) Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11... -
Page 12: Solenoid Valve Troubleshooting
• reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor. 10/24/11 Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011... -
Page 13: Mixing Valve Troubleshooting
Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11... -
Page 14: Stop Valve Troubleshooting
Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days. -
Page 15: Soap Dispenser Maintenance
To change soap, pour out all of the soap from the dispenser ans rinse with hot water several times until all residue is removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling. Bradley Corporation • 215-1493 Rev. G; ECM 11-08-011 10/24/11...
