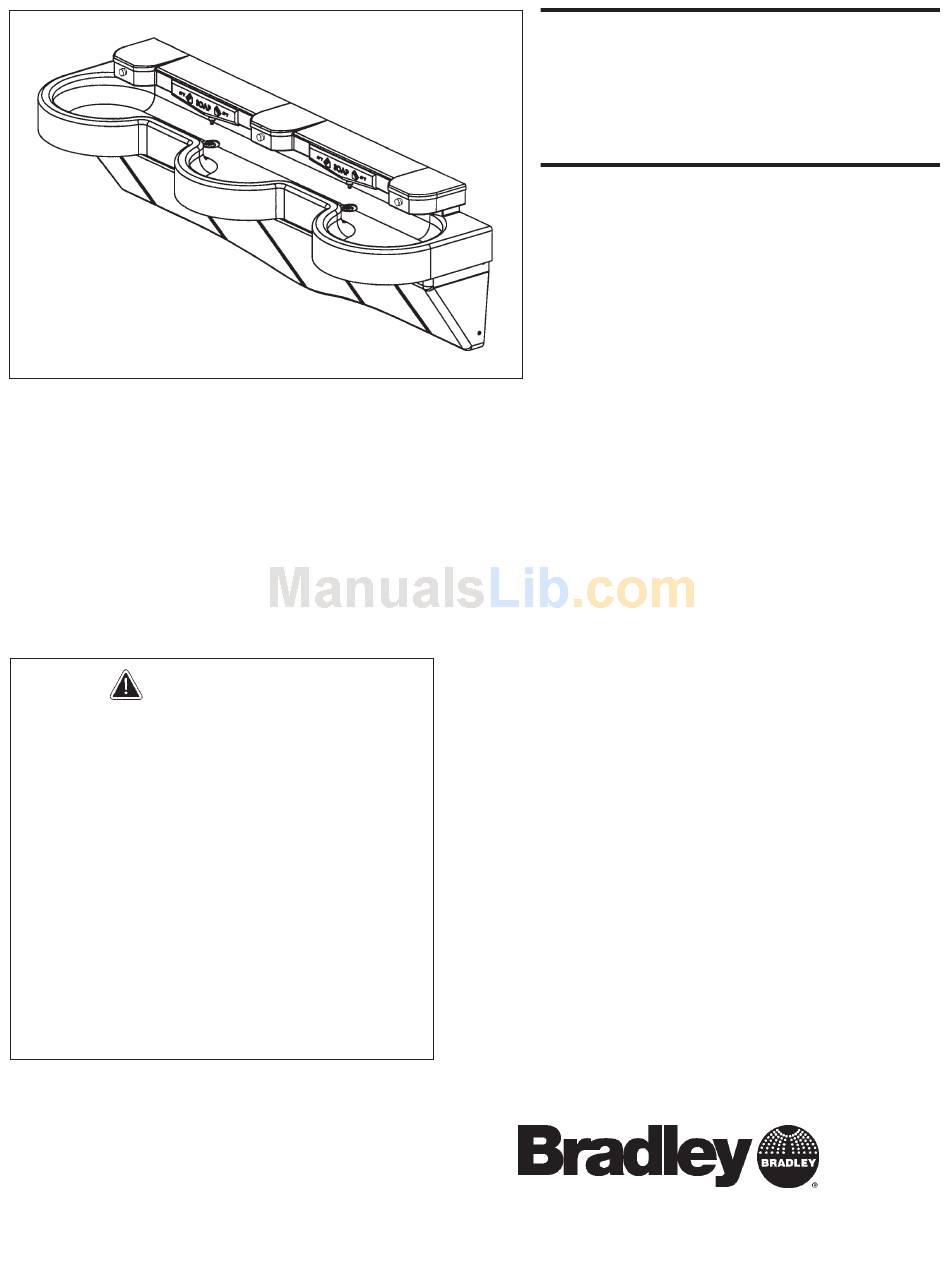

IMPORTANT
Read this entire installation manual
to ensure proper installation, then
file these instructions with the
owner or maintenance department.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
Product warranties may be found
under "Product Information" on our
web site at www.bradleycorp.com..
215-1240 Rev. E; EN 08-805
© 2008 Bradley Corporation
Page 1 of 19
4/24/08

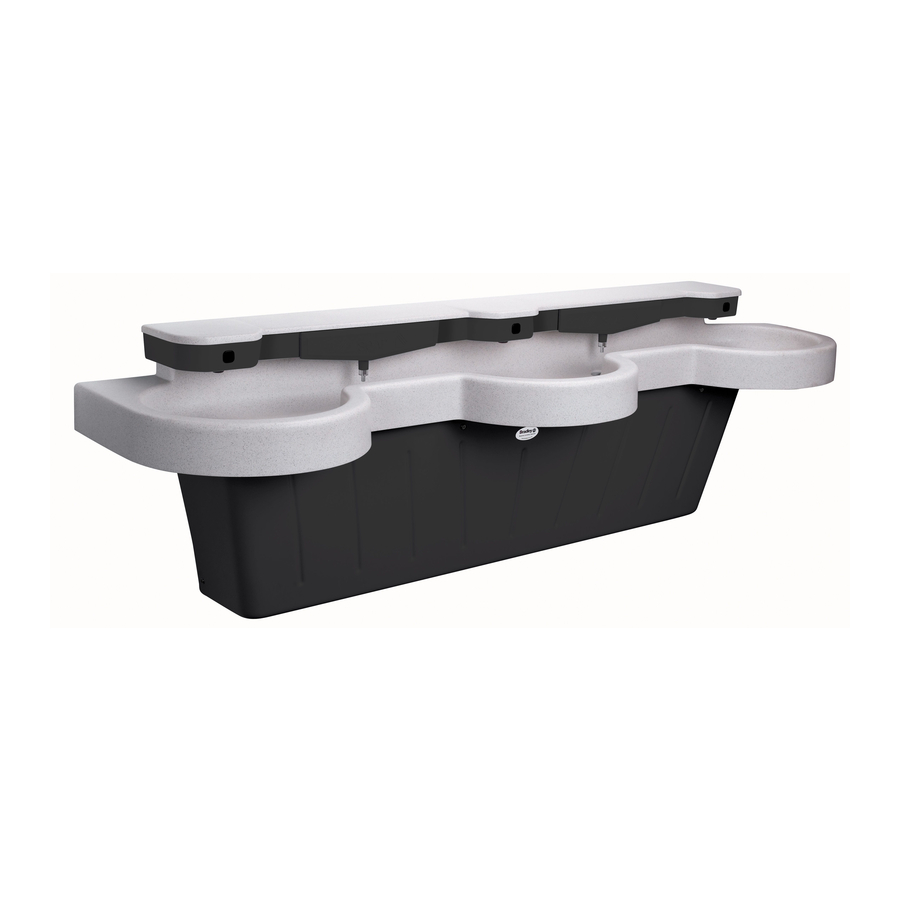

Installation
Instructions
OBSOLETE
SS-3/AST/WH97TAS
Express® Lavatory
System SS-Series
*Complies with Texas Accessibility
Standards (TAS) for Juvenile Height
applications.

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions . . . . . . . . . . . . . . . . 5-11
Cleaning and Maintenance . . . . . . . . . . . . . . . .12
Soap Dispenser Maintenance . . . . . . . . . . .13-14
Check Valve Troubleshooting . . . . . . . . . . . . . .14
Assembly of Components . . . . . . . . . . . . . .15-16
Metering Air Valve Maintenance . . . . . . . . . . .17
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bradley SS-3

  • Page 1: Table Of Contents

    215-1240 Rev. E; EN 08-805 © 2008 Bradley Corporation Page 1 of 19 4/24/08 Installation Instructions OBSOLETE SS-3/AST/WH97TAS Express® Lavatory System SS-Series *Complies with Texas Accessibility Standards (TAS) for Juvenile Height applications. Table of Contents Pre-Installation Information ....2 Dimensions .
  • Page 2: Pre-Installation Information

    Express® Lavatory System SS-Series SS-3/AST/WH97TAS Pre-Installation Information Texas Accessibility Standards compliant: The SS-3/AST/WH97TAS Express® Lavatory System meets Texas Accessibility standards (TAS) for barrier-free clearances, reaches and controls. Always check local codes and ordinances for compliance. Pushbutton and air valve Each sprayhead is controlled by a pushbutton air valve, enabling each user to activate a single flow of water.
  • Page 3 Express® Lavatory System SS-Series Installation - Obsolete SS-3/AST/WH97TAS SS-3/AST/WH97TAS Express® Lavatory System Dimensions Dimensions continue . . . Bradley Corporation • 215-1240 Rev. E; EN 08-805 4/24/08...
  • Page 4: Dimensions

    Express® Lavatory System SS-Series SS-3/AST/WH97TAS Installation - Obsolete Dimensions continued . . . Juvenile Height SS-3/AST/WH97TAS Grades Pre-K thru 5 or 6 Juvenile Height SS-3/AST/WH97TAS Grades 6 thru 8 or 9 4/24/08 Bradley Corporation • 215-1240 Rev. E; EN 08-805...
  • Page 5: Installation Instructions

    Figures 1a and 1b. NOTE: The anchors will be used to mount the Express® bowl and frame to the wall. SS-3/AST/WH97 Express® Lavatory System Dimensions Juvenile Height Mounting (Grades Pre-K thru 5 or 6) Figure 1a Bradley Corporation •...
  • Page 6 Express® Lavatory System SS-Series SS-3/AST/WH97TAS SS-3/AST/WH97 Express® Lavatory System Dimensions Juvenile Height Mounting (Grades 6 thru 8 or 9) Figure 1b Figure 2 4/24/08 Installation - Obsolete Installation Instructions continue . . . Bradley Corporation • 215-1240 Rev. E; EN 08-805...
  • Page 7 3/8" bolts and washers to mount the frame to the wall (see Figure 4). (9) TORX-HEAD SCREW PANEL Figure 3 Figure 4 Bradley Corporation • 215-1240 Rev. E; EN 08-805 Express® Lavatory System SS-Series FRAME 3/8" BOLTS AND WASHERS Installation Instructions continue . . . 4/24/08 SS-3/AST/WH97TAS FRAME...
  • Page 8 Express® Lavatory System SS-Series SS-3/AST/WH97TAS Installation Instructions continued . . . Step 3: Install bowl assembly IMPORTANT: Moving and positioning the bowl will require more than one person. Note: Refer to Figure 5 below when installing the bowl assembly. 1. With someone to assist you, place the bowl assembly squarely onto the frame.
  • Page 9 Express® Lavatory System SS-Series VERNATHERM™ THERMOSTATIC MIXING VALVE FLEXIBLE SUPPLY HOSE CONNECT TO 1/2" NPT COLD WATER SUPPLY CHECK VALVE FLEXIBLE SUPPLY HOSE 1/2 NIPPLE (113-006DJ) Figure 6b Installation Instructions continue . . . 4/24/08 SS-3/AST/WH97TAS CONNECT E TO TEMPERED WATER SUPPLY...
  • Page 10 Express® Lavatory System SS-Series SS-3/AST/WH97TAS Installation Instructions continued . . . Step 5: Connecting plastic tubing NOTE: Refer to Figure 7a for hot and cold supplies, and refer to Figure 7b for tempered supply. 1. Connect the plastic tubing for the water supplies from the sprayhead assembly to the quick- connect fittings on the air valve as follows: •...
  • Page 11: Installation Instructions

    2. Install the panel to the frame. Fasten panel with the nine Torx-head screws provided (see Figure 8 below). PANEL Figure 8 Bradley Corporation • 215-1240 Rev. E; EN 08-805 Express® Lavatory System SS-Series SS-3/AST/WH97TAS FRAME (10) TORX- HEAD SCREW 4/24/08...
  • Page 12: Cleaning And Maintenance

    Express® Lavatory System SS-Series SS-3/AST/WH97TAS Cleaning and Maintenance Instructions IMPORTANT: Strong alkaline or acid-based chemicals and cleansers should not be used to clean Terreon®. If these chemicals come in contact with the Terreon® surface, wipe off the surface immediately and flush with soapy water.
  • Page 13: Soap Dispenser Maintenance

    4. After each soap tank is filled, position the soap tanks into the sprayhead openings and push into place. Figure 9a (2) SOAP TANK 133-107 (GRAY) 133-131 (PUTTY) 133-131A (COAL) Figure 9b Bradley Corporation • 215-1240 Rev. E; EN 08-805 Express® Lavatory System SS-Series FILLER HOLE (2) SOAP DISPENSER VALVE S09-007 4/24/08 SS-3/AST/WH97TAS...
  • Page 14: Check Valve Troubleshooting

    Express® Lavatory System SS-Series SS-3/AST/WH97TAS Soap Dispenser Maintenance continued . . . Step 2: Change soap type 1. Pour out all of the soap from the dispenser. 2. Rinse the soap dispenser with hot water several times until all of the residue is removed, and pump the valve until clean water appears.
  • Page 15: Assembly Of Components

    VALVE (S01-116B) FLEX HOSE WITH SWIVEL END FILTER 269-653 WASHER 269-1188 STOP/CHECK VALVE S27-102 Bradley Corporation • 215-1240 Rev. E; EN 08-805 Express® Lavatory System SS-Series SS-3/AST/WH97TAS Optional Stop/Strainer/Check Valve 90° ELBOW 169-639 1/2 NIPPLE (113-006DJ) STOP/STRAINER/CHECK VALVE S60-003 4/24/08...
  • Page 16: Pushbutton Assembly

    Express® Lavatory System SS-Series SS-3/AST/WH97TAS Assembly of Components continued . . . Pushbutton assembly U-CUP 125-099 PUSHBUTTON ASSEMBLY S08-324 PISTON 119-227 110-115 Other Replacement Parts 4/24/08 SCREW 160-396 ACTUATOR BODY 118-279 SPRING AERATOR 135-065 HOUSING 115-133 O-RING 125-001CK DIFFUSER 269-508...
  • Page 17: Metering Air Valve Maintenance

    269-665 PLASTIC DISK 269-664 STAINLESS STEEL DISK 179-082 SPRING 135-053 LOCKWASHER 142-002CR Metering Air Valve Troubleshooting continued . . . 4/24/08 SS-3/AST/WH97TAS PARTS INCLUDED IN KIT S65-110 REPAIR KIT S73-054A (Note: This repair kit also includes kit S65-110) SCREW 160-313...
  • Page 18 Express® Lavatory System SS-Series SS-3/AST/WH97TAS Metering Air Valve Troubleshooting Problem: Valve will not shut off. Cause: Timing mechanism is clogged. Solution: Clean timing mechanism: 1. If compressed air is available, blow water and debris from perforated metal sleeve of timing mechanism.
  • Page 19: Maintenance Instructions

    No Water Cold Cold Cold Cold No Water No Water Cold Cold Cold Express® Lavatory System SS-Series SS-3/AST/WH97TAS Power Element* S27-019 Valve Slide S01-039 Cover 107-261B THEN Valve Delivers Mixed 107° Valve shuts off or drips Valve shuts off or drips Cold Cold/below 107°...
