Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplies Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions - Front and Top Views . . . . . . . . . . . . . . . . . . . . . . . 4-5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mount the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Install the Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect the Supply - Hot and Cold Supply . . . . . . . . . . . . . . . . . . 8
Connect the Supply - Single Tempered Supply . . . . . . . . . . . . . . . 8
Install the Drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect Electrical and Sprayhead Supplies. . . . . . . . . . . . . . . . . . 9
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting - BIR3 Components . . . . . . . . . . . . . . . . . . . . . 12
Solenoid Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stop Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thermostatic Mixing Valve Troubleshooting . . . . . . . . . . . . . . . . . 14
Fill Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clean Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Bradley Express SS-2N/BIR3/STD
Summary of Contents for Bradley Express SS-2N/BIR3/STD
-

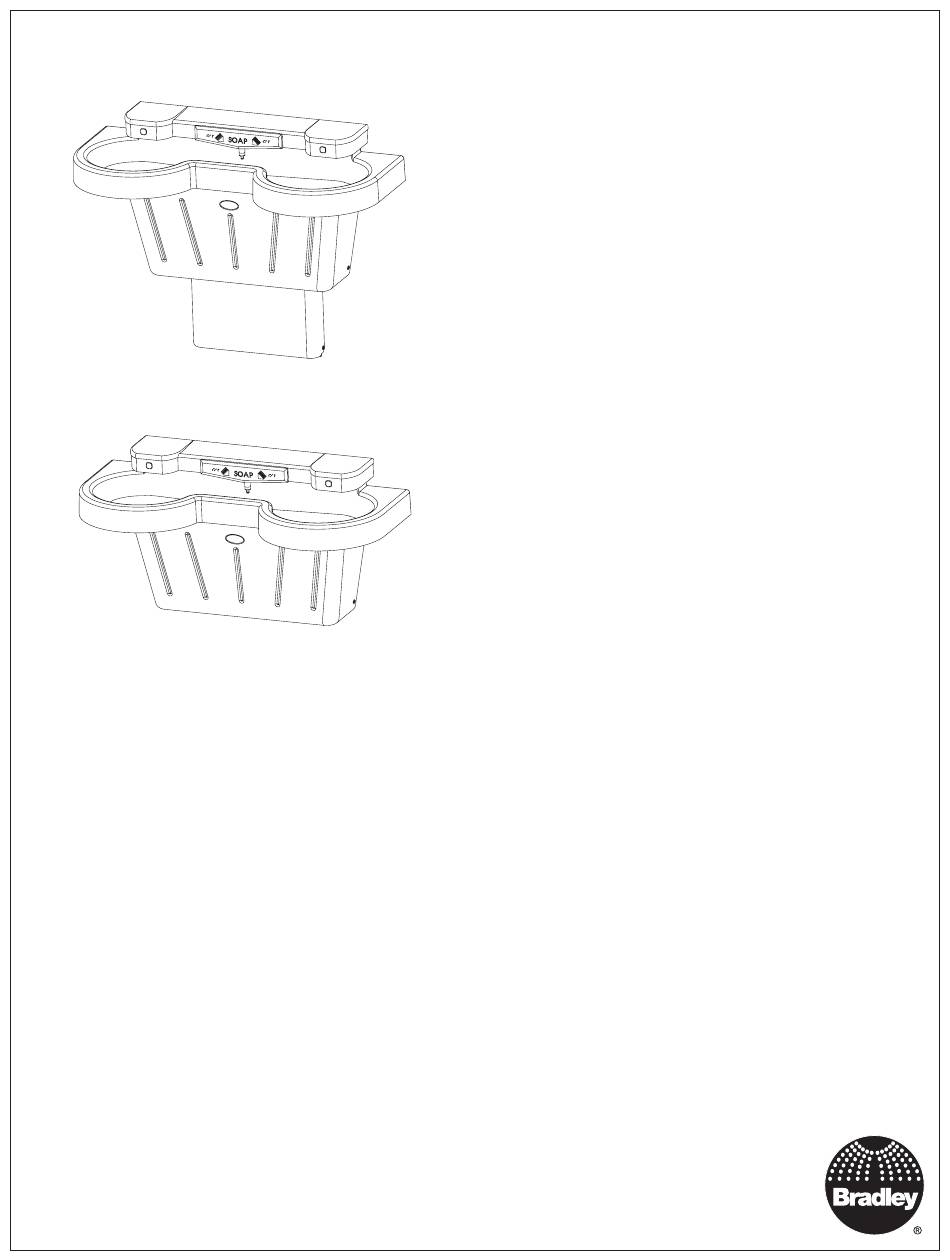

Page 1: Table Of Contents
Clean Soap Dispenser ....... . . 15 P.O. Box 309 215-1500 Rev. J; ECN 17-08-026 Menomonee Falls, WI 53052 USA © 2018 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 15 5/14/2018 bradleycorp.com... -
Page 2: Pre-Installation Information
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not begin installation until you obtain the missing parts. Product warranties may be found under “Products” on our website at www.bradleycorp.com. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 3: Components
Drain Plug (P16-072) Bowl Mounting Hardware 1/8" Rubber Washer (125-001DP) 1/4"-20 1/4"-20x1/2" Washer Pan Head (qty 4) Screw (qty 4) P-Trap (Polypropylene) (142-002DB) Tailpiece (129-056) (160-389) (269-1697) Optional P-Trap (Chrome-Plated Brass) (S29-094) Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 4: Supplies Required
15" 10" (254) (381) (381) Radius 38-1/4" (972) Front View Standard Frame 7" (178) 21-1/4" (540) 30" (762) 36" (914) 38-1/4" (972) Front View Wall-Hung Frame 7" (178mm) 30" (762) 36" (914) Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... - Page 5 Grades: 6 through 8 or 9 Grades: Pre-K through 5 or 6 11-1/2" 11-1/2" (292) (292) 36-1/2" 34-1/2" (927) (876) 32" 30" (813) (762) 8-5/8" 8-5/8" 28" (219) 26" (219) (711) (660) 11-1/4" 9-1/4" (286) (235) Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018...
-
Page 6: Rough-Ins
34" None Standard Height 34" None Wall-Hung 32" Subtract 2" TAS, Grades 6 through 8 or 9 31" Subtract 3" Juvenile Height 30" Subtract 4" TAS, Pre-K through Grades 5 or 6 Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 7: Mount The Frame
3/8" bolts and 1" min. O.D. washers, two places. DO NOT OVERTIGHTEN! Tighten the pan-head screws. Do not overtighten. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018 SCUFF BASE FRAME AND DRAIN ASSEMBLY NOT SHOWN FOR CLARITY... -
Page 8: Connect The Supply - Hot And Cold Supply
Loosen but do not remove the two mounting screws holding the valve bracket to the frame. Slide the valve bracket up and lift it from the frame. Attach the stop to the tempered wall stub-out. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 9: Install The Drains
Insert the batteries into Green Supply Tubing the battery holders. Snap the sensor cable Snap the battery cable plugs from the sprayhead into the proper valve’s plugs into the female circuit board plugs. circuit board. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 10: Adjust The Temperature
Reinstall the valve bracket. Turn on the water supply to the Express and check for leaks. Push the operating buttons of each station until all the air is purged from the lines and water is flowing smoothly. Reinstall the access panel. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 11: Cleaning And Maintenance
For complete instructions on this additional maintenance, visit bradleycorp.com. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days. -
Page 12: Troubleshooting - Bir3 Components
Make a note of the numbers printed on the circuit board, then contact your Bradley representative for assistance. Bradley • 215-1500 Rev. J; ECN 17-08-026... -
Page 13: Solenoid Valve
2. Inspect the stop valves to see that they have been properly installed. 3. Inspect the thermostatic mixing valve for proper installation and connection to hot and cold supplies. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 14: Thermostatic Mixing Valve Troubleshooting
198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018... -
Page 15: Fill Soap Dispenser
To change soap, pour out all of the soap from the dispenser and rinse with hot water several times until all residue is removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling. Bradley • 215-1500 Rev. J; ECN 17-08-026 5/14/2018...
