Bradley Express SS Series Installation Instructions Manual
Lavatory system
Hide thumbs
Also See for Express SS Series:
- Installation manual (27 pages) ,
- Installation instructions manual (17 pages) ,
- Installation manual (14 pages)
Table of Contents
Advertisement
Quick Links
IMPORTANT
Read this entire installation manual
to ensure proper installation, then
file these instructions with the
owner or maintenance department.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
Product warranties may be found
under "Product Information" on our
web site at www.bradleycorp.com.
215-1453 Rev. B; EN 08-805
© 2008 Bradley Corporation
Page 1 of 17
4/24/08

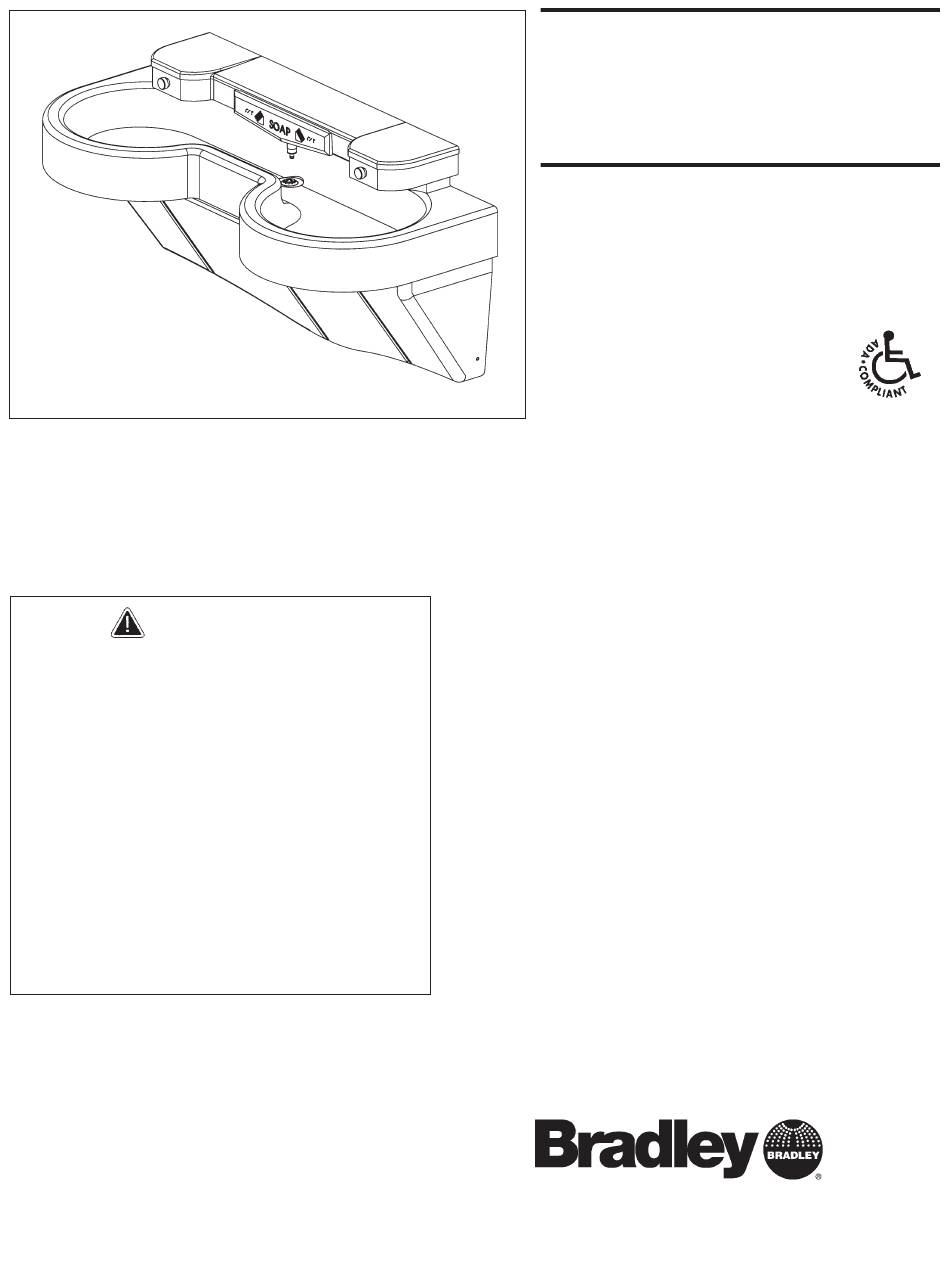

Installation
Instructions
OBSOLETE
SS-2/TT/WH97

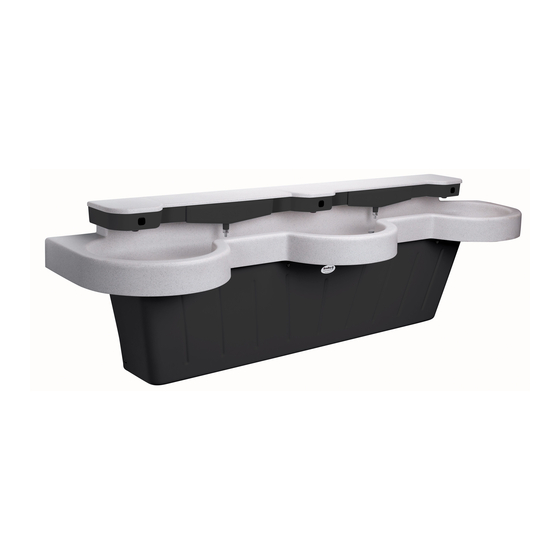

Express® Lavatory
System SS-Series
Express® Lavatory Systems
are ADA compliant.
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation Instructions . . . . . . . . . . . . . . . . . 4-9
Cleaning and Maintenance Instructions . . . . . .10
Soap Dispenser Maintenance . . . . . . . . . . .11-12
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . .12
Assembly of Components . . . . . . . . . . . . . .13-14
Check Valve Troubleshooting . . . . . . . . . . . . . .15
Solenoid Valve Troubleshooting . . . . . . . . .15-16
Vernatherm™ Thermostatic Mixing Valve . . . .17
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817
Advertisement
Table of Contents
Related Manuals for Bradley Express SS Series
Summary of Contents for Bradley Express SS Series
-
Page 1: Table Of Contents
Product warranties may be found under "Product Information" on our web site at www.bradleycorp.com. P.O. Box 309, Menomonee Falls, WI 53052-0309 215-1453 Rev. B; EN 08-805 TEL. 1-800-BRADLEY FAX 262-251-5817 © 2008 Bradley Corporation http://www.bradleycorp.com Page 1 of 17 4/24/08... -
Page 2: Pre-Installation Information
1,000 lbs.) and bowl to wall • 1/2" NPT tempered supply piping • 1-1/2" NPT drain piping • 110 volt electrical outlet for 110/24 VAC plug-in transformer (supplied) 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805... -
Page 3: Dimensions
Express® Lavatory System SS-Series Installation - Obsolete SS-2/TT/WH97 SS-2/TT/WH97 Express® Lavatory System Dimensions Standard Height Mounting Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08... -
Page 4: Installation Instructions
4. Install eight 3/8" wall anchors with a minimum pull-out rating of 1,000 lbs. (supplied by installer) at the locations shown in Figure 1a below or Figure 1b on page 5. Figure 1a SS-2/TT/WH97 Express® Lavatory System Dimensions Standard Height Mounting 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805... - Page 5 Express® Lavatory System SS-Series Installation - Obsolete SS-2/TT/WH97 SS-2/TT/WH97 Express® Lavatory System Dimensions Juvenile Height Mounting Figure 1b Figure 2 Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08...
- Page 6 3/8" bolts and washers to mount the frame to the wall (see Figure 4). Installation Instructions continue... FRAME (7) TORX-HEAD SCREW PANEL Figure 3 FRAME (6) 3/8" BOLTS AND WASHERS Figure 4 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805...
- Page 7 4. Tighten the screws installed in #2 above to secure the bowl assembly to the frame. Do not overtighten. Installation Instructions continue... BACK VIEW Figure 5 Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08...
- Page 8 CONNECT TO 1/2" NPT COLD 1/2" NPT HOT WATER SUPPLY WATER SUPPLY 90° ELBOW FLEXIBLE 169-639 SUPPLY HOSE (TO SOLENOID BRACKET) 1/2 NIPPLE (113-006DJ) STOP/STRAINER/CHECK VALVE (S60-003) Figure 7 Figure 6b 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805...
-
Page 9: Installation Instructions
120v TRANSFORMER GRAY SUPPLY S83-134 GREEN SUPPLY TUBE (FROM TERMINAL TUBE FROM SPRAYHEAD) BLOCK SPRAYHEAD) 269-1311 SOLENOID COMPRESSION RACK WATER SUPPLY REFER TO WIRING DIAGRAM AT RIGHT WIRING DIAGRAM Figure 8 Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08... -
Page 10: Cleaning And Maintenance Instructions
Brite pad or with an abrasive cleaner. • Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily and inexpensively be repaired. Contact your Bradley representative to order a repair kit and be sure to specify color when ordering. -
Page 11: Soap Dispenser Maintenance
4. After the soap tank is filled, position the soap tank in the sprayhead opening and push into place. Figure 9a FILLER HOLE SOAP TANK 133-107 (GRAY) 133-131 (PUTTY) 133-131A (COAL) (2) SOAP DISPENSER VALVE S09-007 Figure 9b Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08... -
Page 12: Wiring Diagram
Then remove the chain and rinse out the soap tank. Clean internal components: To clean the internal components of the soap dispenser, pump hot water through the soap dispenser until a clean flow of water comes out of the valve. 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805... -
Page 13: Assembly Of Components
Vernatherm™ Thermostatic Mixing Valve Optional Stop/Strainer/Check Valve Assembly S67-571 VERNATHERM 90° ELBOW VALVE (S01-116B) 169-639 FLEX HOSE WITH SWIVEL END FILTER 1/2 NIPPLE 269-653 WASHER (113-006DH) 269-1188 STOP/STRAINER/CHECK VALVE (S60-003) STOP/CHECK VALVE S27-102 Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08... -
Page 14: Assembly Of Components
To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body using the eight screws provided. Other Replacement Parts 110-24 VAC CLASS II PLUG-IN TRANSFORMER S83-152 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805... -
Page 15: Check Valve Troubleshooting
• reconnect to the adjacent valve and turn on electrical and water supplies to the unit; • press the Touch Time™ switch. If the station still fails to turn on, replace the Touch Time™ switch (see page 14). Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08... - Page 16 Express® Lavatory System SS-Series SS-2/TT/WH97 Installation - Obsolete 4/24/08 Bradley Corporation • 215-1453 Rev. B; EN 08-805...
-
Page 17: Vernatherm™ Thermostatic Mixing Valve
No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1453 Rev. B; EN 08-805 4/24/08...
