Manufacturing information
Recommended footprint
We recommend that you use the following PCB footprints for surface-mounting. The dimensions
without brackets are in inches, and those in brackets are in millimeters.

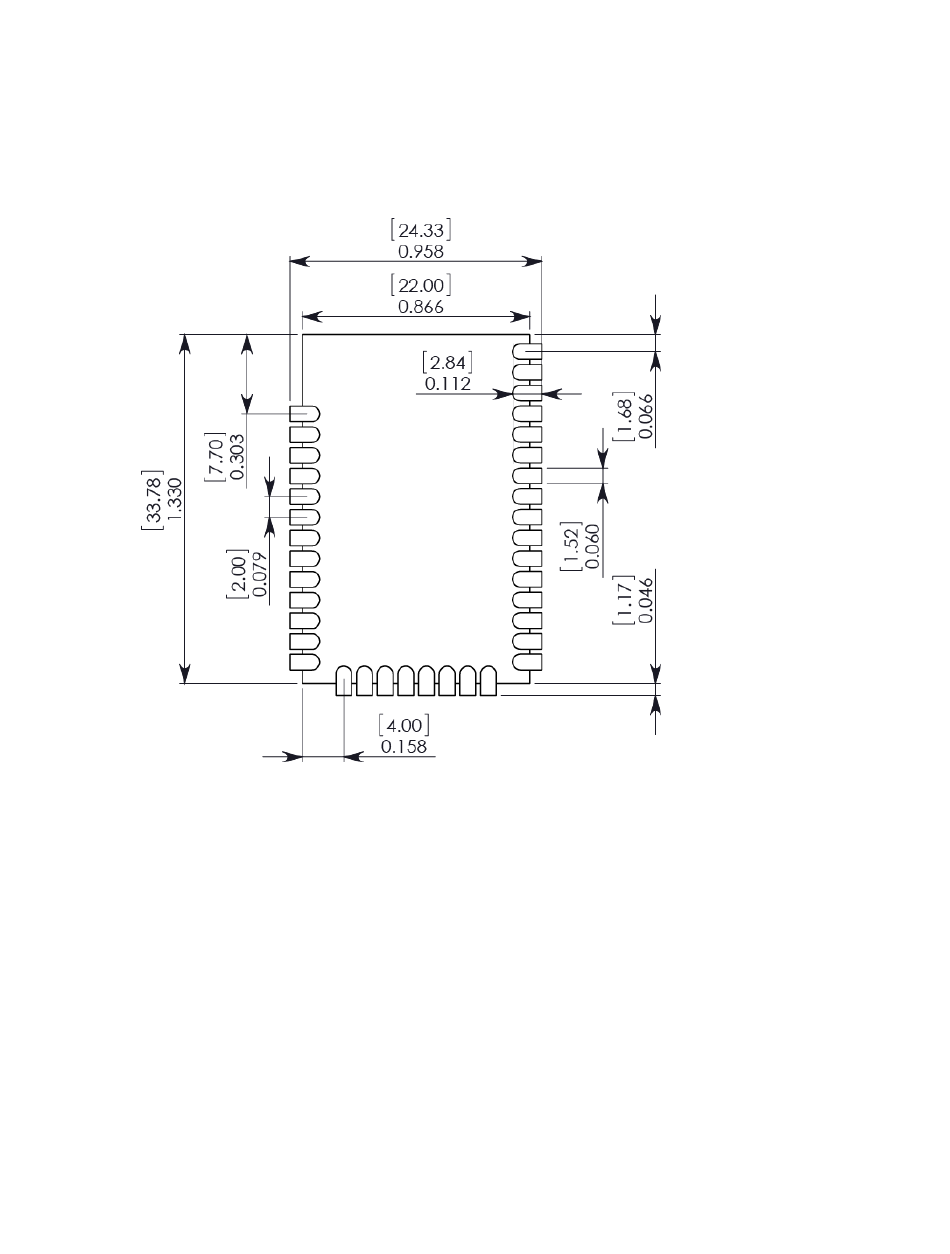

XBee3 surface-mount recommended footprint
XBee3™ RF Module Hardware Reference Manual
Recommended footprint
41
