Hardware

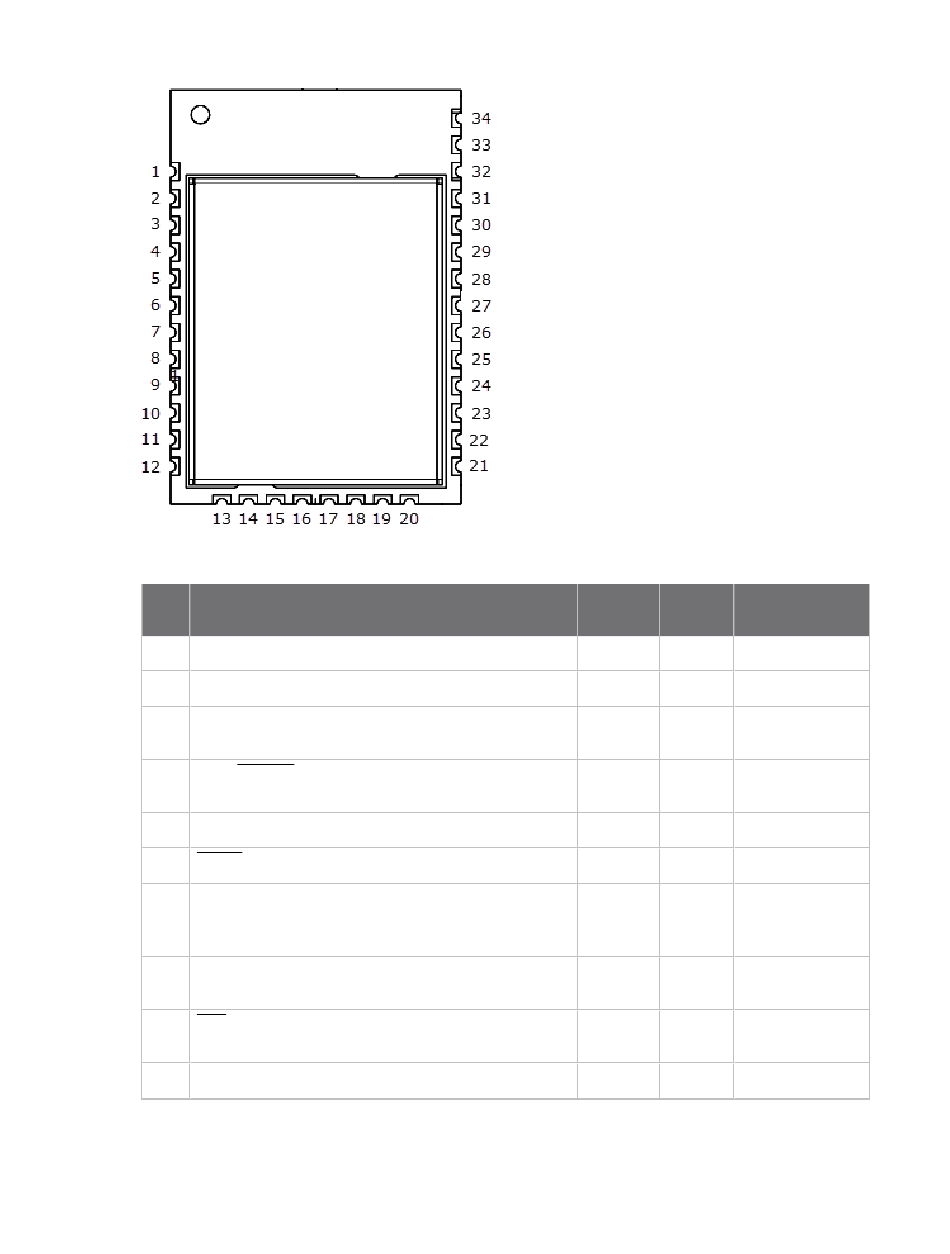

The following table shows the pin signals and their descriptions for the XBee3 Micro device.
Pin# Name
1 GND
2 VCC
3 DOUT /DIO13
4 DIN / CONFIG /DIO14
5 DIO12
6 RESET
7 RSSI PWM/DIO10
8 PWM1/DIO11
9 DTR/SLEEP_RQ /DIO8
10 GND
XBee3™ RF Module Hardware Reference Manual
Pin signals for the XBee3 micro module
Default
Direction state Description
- - Ground.
- - Power supply.
Both Output UART data out
/GPIO.
Both Input UART data in
/GPIO.
Both GPIO.
Input Device reset.
Both Output RX signal
strength
Indicator /GPIO.
Both Disabled Pulse width
modulator/GPIO.
Both Input Pin sleep control
Line/GPIO.
- - Ground.
