1.

Introduction

1.1

Features

• ATmega4809-MFR microcontroller
• One yellow user LED
• One mechanical user switch
• One 32.768 kHz crystal
• Onboard debugger
– Board identification in Atmel Studio/Microchip MPLAB
– One green power and status LED
– Programming and debugging
– Virtual COM port (CDC)
– Two logic analyzer channels (DGI GPIO)
• USB powered
• Adjustable target voltage
– MIC5353 LDO regulator controlled by the onboard debugger
– 1.8-5.1V output voltage (limited by USB input voltage)
– 500 mA maximum output current (limited by ambient temperature and output voltage)
1.2

Kit Overview

The Microchip ATmega4809 Curiosity Nano evaluation kit is a hardware platform to evaluate the
Microchip ATmega4809.

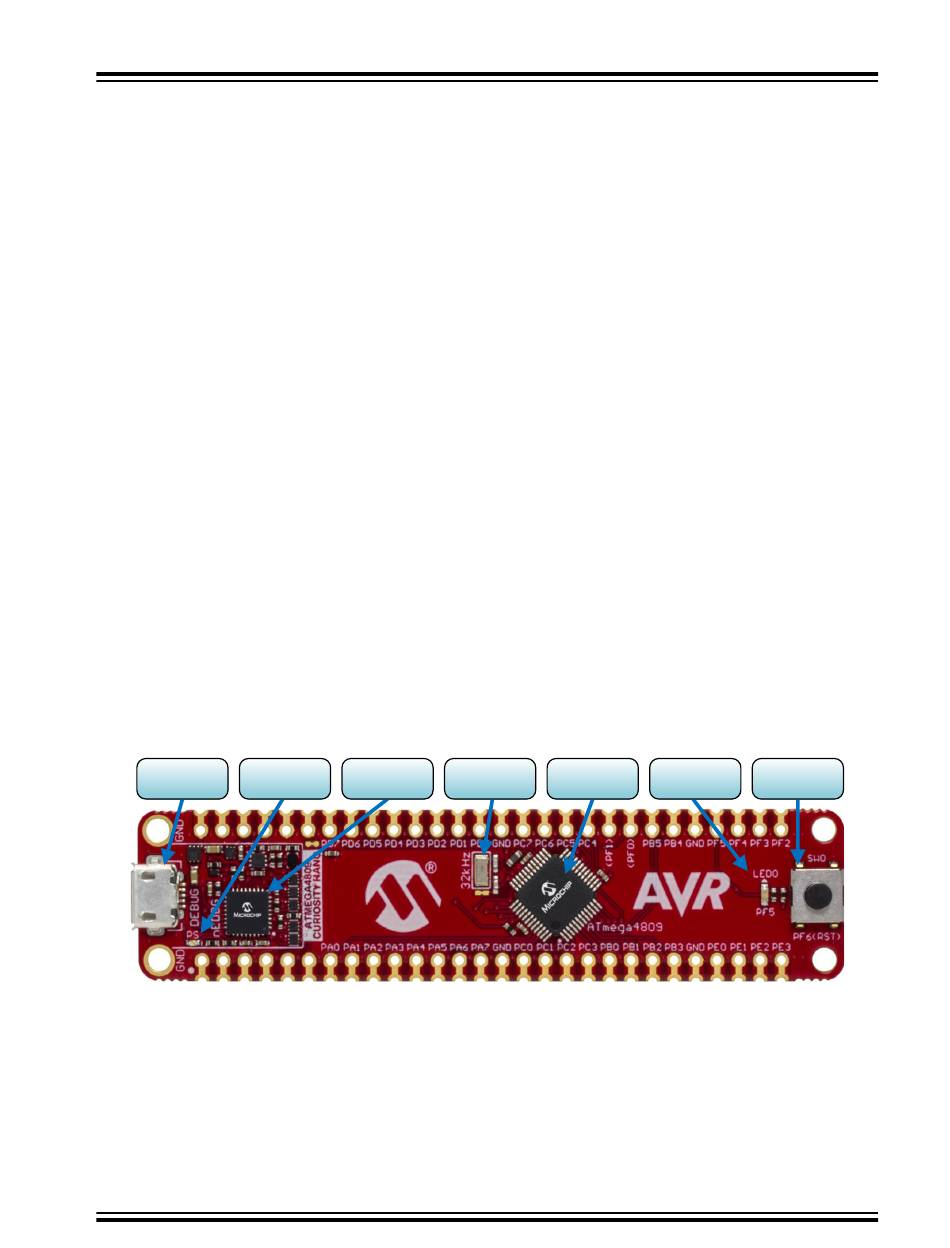

Figure 1-1. ATmega4809 Curiosity Nano Evaluation Kit Overview
Micro USB
Connector
©
2018 Microchip Technology Inc.
Power/Status
Debugger
LED
ATmega4809 Curiosity Nano
®
X
32.768 kHz ATmega4809
Crystal MCU
User Guide
Introduction
User LED User Switch
(LED0) (SW0)
