ATBTLC1000ZR-XPRO
ATBTLC1000ZR Xplained Pro User's Guide
Description
The ATBTLC1000ZR Xplained Pro is an extension board in the Xplained Pro evaluation platform. It is
®
designed to demonstrate ultra-low power Bluetooth
Low Energy (BLE 4.1) ATBTLC1000-ZR110CA
module together with Xplained Pro MCU boards.
User Guide
DS50002637A-page 1
©
2017 Microchip Technology Inc.
Advertisement
Table of Contents
Related Manuals for Microchip Technology ATBTLC1000ZR-XPRO
Summary of Contents for Microchip Technology ATBTLC1000ZR-XPRO
-
Page 1: Description
The ATBTLC1000ZR Xplained Pro is an extension board in the Xplained Pro evaluation platform. It is ® designed to demonstrate ultra-low power Bluetooth Low Energy (BLE 4.1) ATBTLC1000-ZR110CA module together with Xplained Pro MCU boards. User Guide DS50002637A-page 1 © 2017 Microchip Technology Inc. -
Page 2: Table Of Contents
The Microchip Web Site....................15 Customer Change Notification Service................15 Customer Support......................15 Microchip Devices Code Protection Feature..............15 Legal Notice........................16 Trademarks........................16 Quality Management System Certified by DNV.............17 Worldwide Sales and Service..................18 User Guide DS50002637A-page 2 © 2017 Microchip Technology Inc. -
Page 3: Introduction

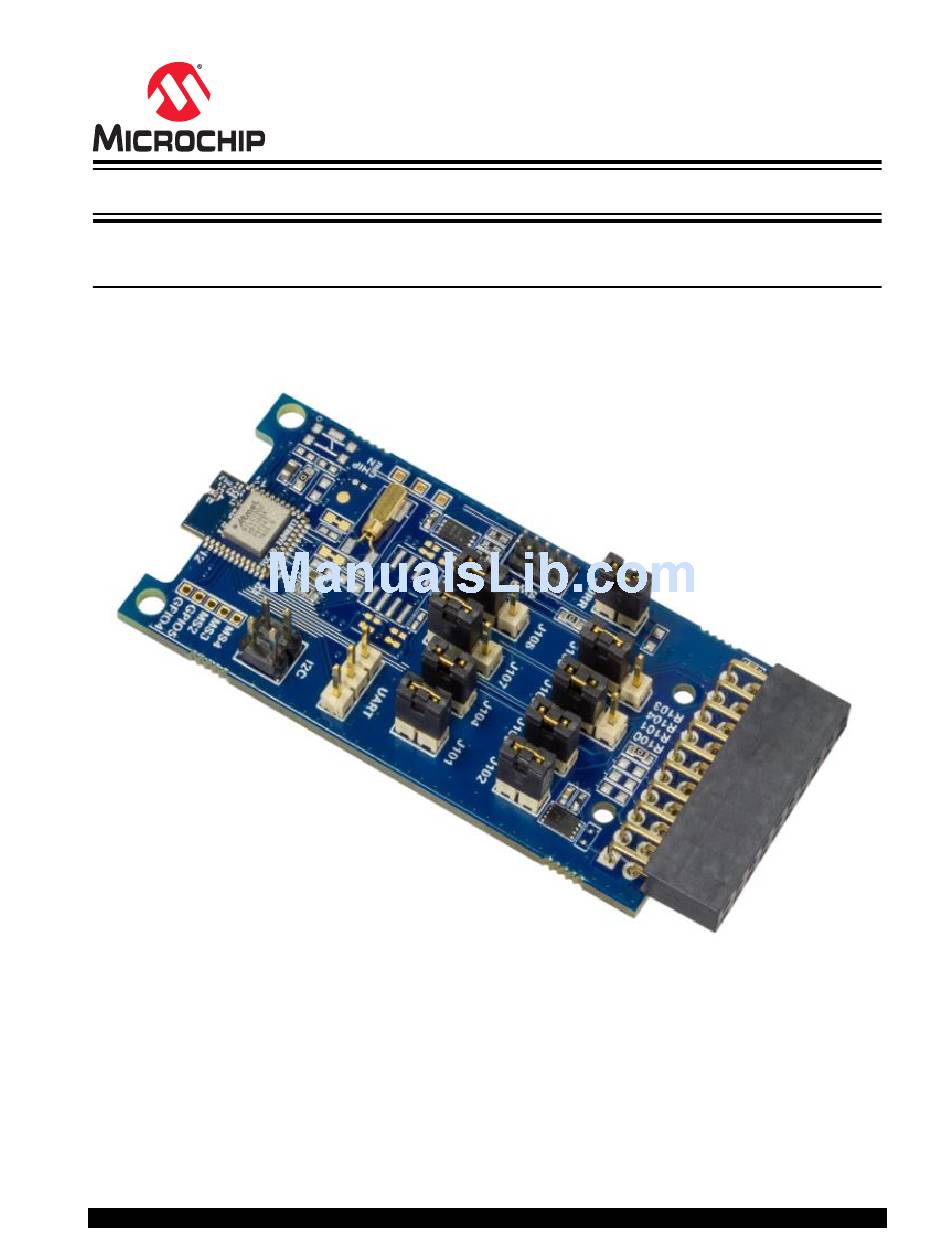

The ATBTLC1000ZR Xplained Pro is an extension board containing the ultra-low power Bluetooth module ATBTLC1000-ZR110CA for the Xplained Pro platform. The kit can be connected to the EXT1 extension header on an Xplained Pro MCU Board. Figure 1-1. ATBTLC1000ZR Xplained Pro Extension board User Guide DS50002637A-page 3 © 2017 Microchip Technology Inc. -
Page 4: Getting Started
Atmel START, example application codes for the kit. The target device is programmed and debugged by the on-board Embedded Debugger and therefore no external programmer or debugger tool is required. User Guide DS50002637A-page 4 © 2017 Microchip Technology Inc. -
Page 5: Design Documentation And Relevant Links
Interface found on Xplained Pro boards and COM ports. • ATBTLC1000ZR Xplained Pro Design Documentation - Package containing schematics, BOM, assembly drawings, 3D plots, layer plots, etc. • ATBTLC1000ZR Xplained Pro BluSDK - Software, firmware, applications, and tools packages. User Guide DS50002637A-page 5 © 2017 Microchip Technology Inc. -
Page 6: Xplained Pro
Slave select pin for Serial Peripheral Interface (SPI) and/or general GPIO purpose I/O pin C_SDA Data pin for I C interface. Always connected, bus type C_SCL Clock pin for I C interface. Always connected, bus type User Guide DS50002637A-page 6 © 2017 Microchip Technology Inc. -
Page 7: Hardware Identification System
ASCII string Segment LCD1 Xplained Pro'\0' Product Revision ASCII string 02'\0' Product Serial Number ASCII string 1774020200000010’\0’ Minimum Voltage [mV] uint16_t 3000 Maximum Voltage [mV] uint16_t 3600 Maximum Current [mA] uint16_t User Guide DS50002637A-page 7 © 2017 Microchip Technology Inc. -
Page 8: Hardware Users Guide
UART_RTS UART RTS CHIP_EN Master Enable for chip EXT_CLK_ RTC 32.768 kHz RTC Clock (optional feature) GPIO_MS1 Mixed signal/Analog interface pin LP_GPIO_16 General purpose I/O pin TWI_SDA C SDA of AT30TSE758A User Guide DS50002637A-page 8 © 2017 Microchip Technology Inc. - Page 9 1x3 Pin headers (J105, J106, J107, J108) - 4 The pin headers and its functionality are mentioned in the table. Table 5-3. Pin Headers and Functions Pin on EXT1 Pin headers Function J101 UART_CTS J102 UART_RTS J104 UART_TXD J103 UART_RXD User Guide DS50002637A-page 9 © 2017 Microchip Technology Inc.
- Page 10 Pin on ATBTLC1000ZR module Function DEBUG_UART_RXD DEBUG_UART_TXD Ground Note: BluSDK does not support debug information through debug I C and debug UART. Debug I2C and debug UART headers are placeholders for future usage. User Guide DS50002637A-page 10 © 2017 Microchip Technology Inc.
-
Page 11: Peripherals
Table 5-8. Temperature Sensor Connections Pin on EXT Pin name AT30TSE758A Comment connector temperature sensor pin Data line of serial interface Clock line of serial interface ALERT Temperature alarm signaling pin 2, 19 User Guide DS50002637A-page 11 © 2017 Microchip Technology Inc. - Page 12 RTC_CLK_P pin of the ATBTLC1000-ZR110CA module. Table 5-9. Configuring the RTC Oscillator Configuration option Board configuration 32.768 kHz RTC oscillator Open R101, Close J121 External signal on RTC_CLK_P Close R101,R116,R117 and Open J121,J122 User Guide DS50002637A-page 12 © 2017 Microchip Technology Inc.
-
Page 13: Hardware Revision History
The serial number string has the following format: "nnnnrrssssssssss" n = product identifier r = revision s = serial number The product identifier for the ATBTLC1000ZR Xplained Pro is A09-2689. Revision Revision 3 is the initially released revision. User Guide DS50002637A-page 13 © 2017 Microchip Technology Inc. -
Page 14: Document Revision History
ATBTLC1000ZR-XPRO Document Revision History Rev A - 07/2017 Section Changes Document Initial Release User Guide DS50002637A-page 14 © 2017 Microchip Technology Inc. -
Page 15: The Microchip Web Site
Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property. • Microchip is willing to work with the customer who is concerned about the integrity of their code. User Guide DS50002637A-page 15 © 2017 Microchip Technology Inc. -
Page 16: Legal Notice
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 17: Quality Management System Certified By Dnv
® DSCs, KEELOQ code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified. User Guide DS50002637A-page 17 © 2017 Microchip Technology Inc. -
Page 18: Worldwide Sales And Service
Sweden - Stockholm Tel: 408-735-9110 Tel: 86-29-8833-7252 Tel: 66-2-694-1351 Tel: 46-8-5090-4654 Tel: 408-436-4270 Fax: 86-29-8833-7256 Fax: 66-2-694-1350 UK - Wokingham Canada - Toronto Tel: 44-118-921-5800 Tel: 905-695-1980 Fax: 44-118-921-5820 Fax: 905-695-2078 User Guide DS50002637A-page 18 © 2017 Microchip Technology Inc.
