4.

Hardware User Guide

4.1

Connectors

4.1.1

ATmega4809 Curiosity Nano Pinout

All the ATmega4809 I/O pins are accessible at the edge connectors on the board. The image below
shows the kit pinout.
PF6 and the UPDI pin are only available at the edge connector in the debugger section as long as the
cut-straps on the bottom side are not cut.
PF0 and PF1 are connected to the onboard crystal and not connected to the edge connector by default.
See Section 4.2.3 Crystal

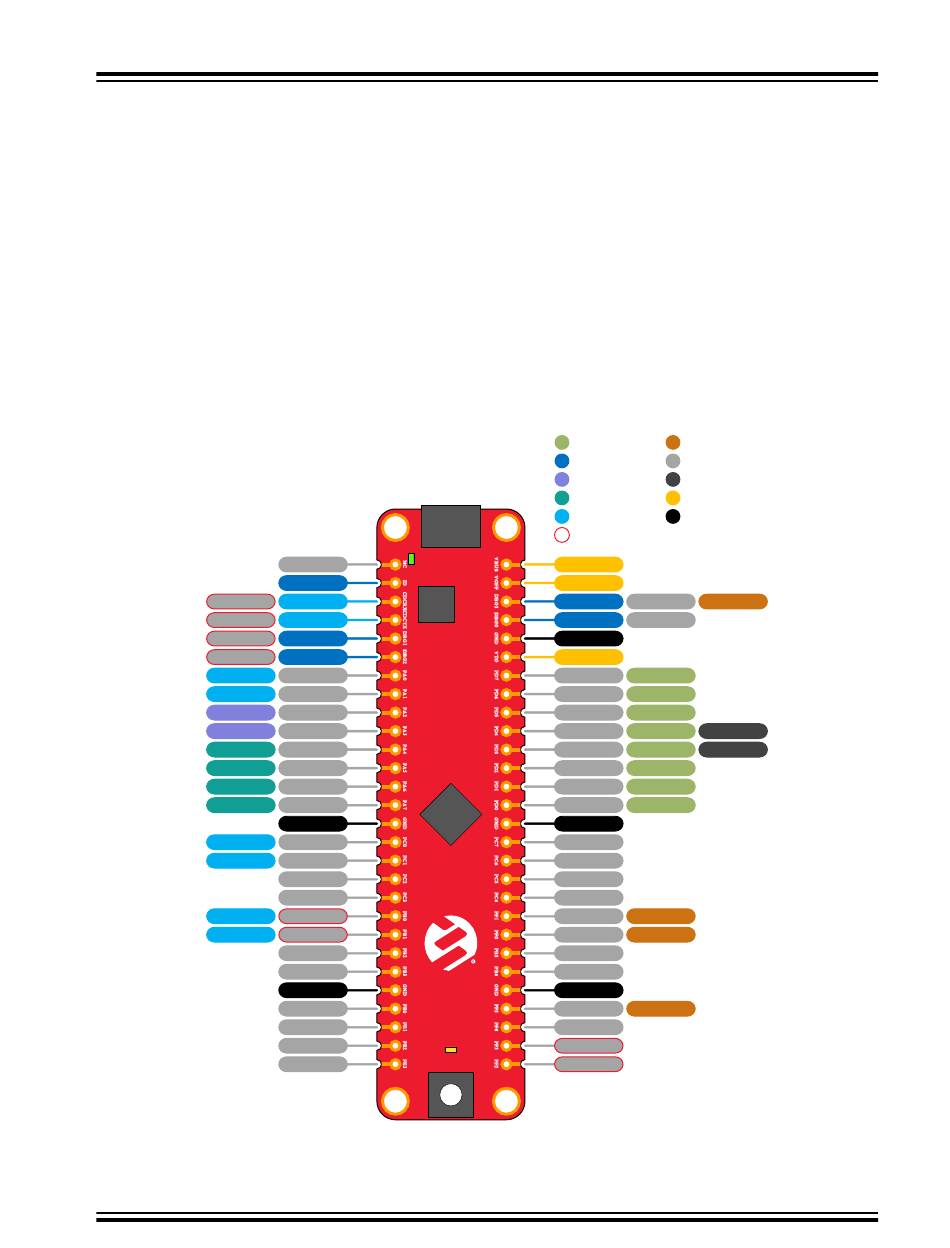

Figure 4-1. ATmega4809 Curiosity Nano Pinout
©
2018 Microchip Technology Inc.
for more information.
NC
ID
PB0 CDC RX
PB1 CDC TX
PF3 DBG1
PF2 DBG2
TX PA0
RX PA1
SDA PA2
SCL PA3
MOSI PA4
MISO PA5
SCK PA6
SS PA7
GND
TX PC0
RX PC1
PC2
PC3
TX PB0
RX PB1
PB2
PB3
GND
PE0
PE1
PE2
PE3
ATmega4809 Curiosity Nano
Analog
Debug
I2C
SPI
UART
USB
Shared pin out
PS LED
VBUS
VOFF
DBG3
DEBUGGER
DBG0
GND
ATmega4809
VTG
CURIOSITY NANO
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
ATmega4809
GND
PC7
PC6
PC5
PC4
PF1
PF0
PB5
PB4
GND
PF5
PF4
LED0
PF3
PF2
SW0
User Guide
Hardware User Guide
Peripheral
Port
PWM
Power
Ground
PF6 SW0
UPDI
AIN7
AIN6
AIN5
AIN4 TCA0 WO4
AIN3 TCA0 WO3
AIN2
AIN1
AIN0
TOSC2
TOSC1
LED0
