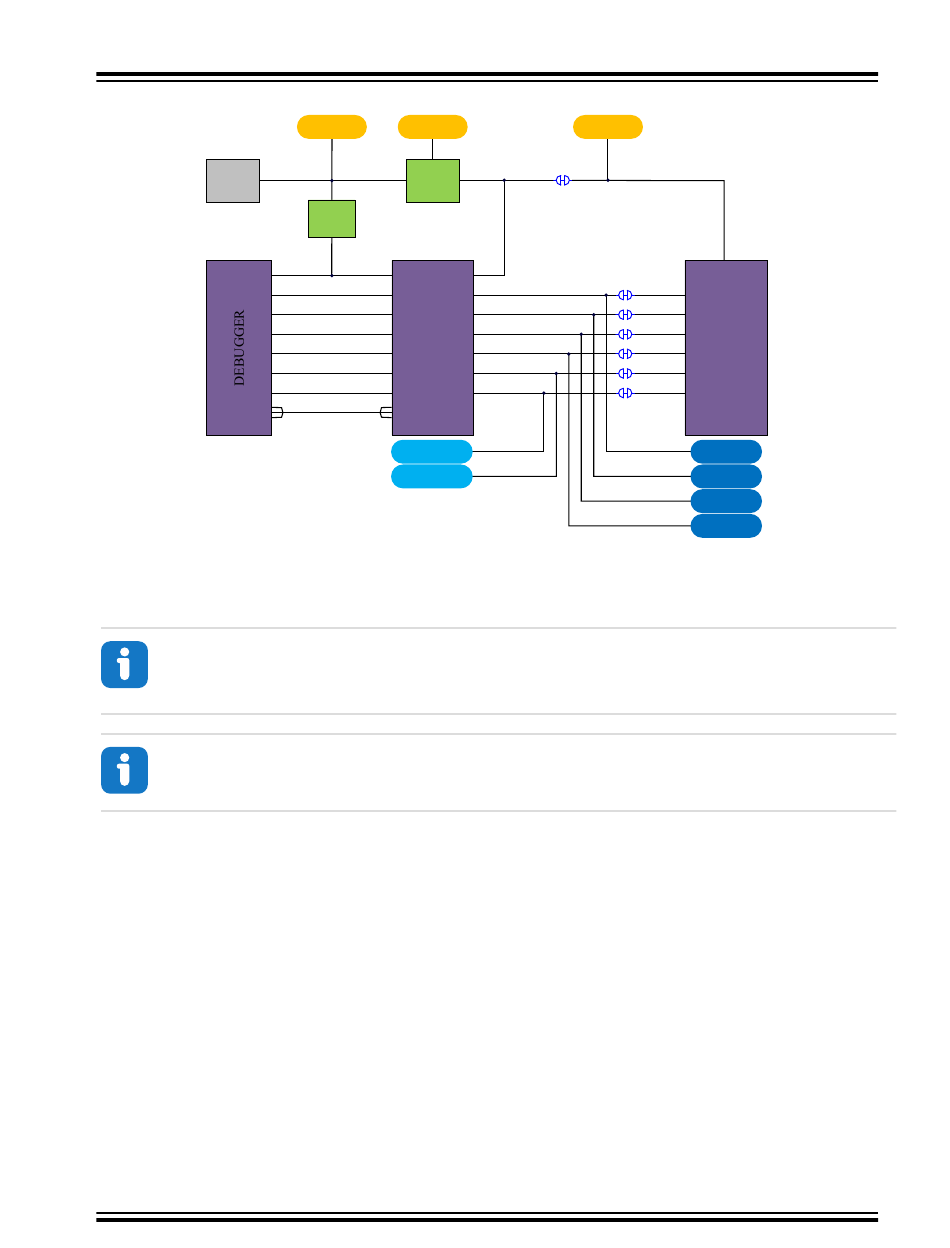

Figure 3-4. Onboard Debugger Connections to the ATmega4809
USB
By cutting the GPIO straps with a sharp tool, as shown in
debugger and the ATmega4809 are completely disconnected. To completely disconnect the target
regulator, cut the VTG strap shown in
Info: Cutting the connections to the debugger will disable programming, debugging, data
streaming, and the target power supply. The signals will also be disconnected from the board
edge next to the onboard debugger section.
Info: Solder in 0Ω resistors across the footprints or short-circuit them with tin solder to
reconnect any cut signals.
©
