User Manual
Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Quick Start Guide
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111I102Q
Please read these instructions carefully before using this product, and save this guide for future use.
Full IP67 Stainless
Resistive Panel PC
R10IB3S-67T2
R15IB3S-67C3
R19IB3S-67A1
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate R10IB3S-67T2
Summary of Contents for Winmate R10IB3S-67T2
- Page 1 R19IB3S-67A1 Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I102Q Please read these instructions carefully before using this product, and save this guide for future use.
-
Page 2: Table Of Contents
- 21 - 3.3.2 Yoke Mounting - 22 - 4 SPECIFICATIONS - 23 - APPENDIX A: Cleaning the Monitor - 25 - Appendix B: Winmate Software Development Kit - 26 - Appendix C: Ordering Information - 26 - - 2 -... - Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
- Page 4 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We...
- Page 5 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 6 Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
-
Page 7: Introduction

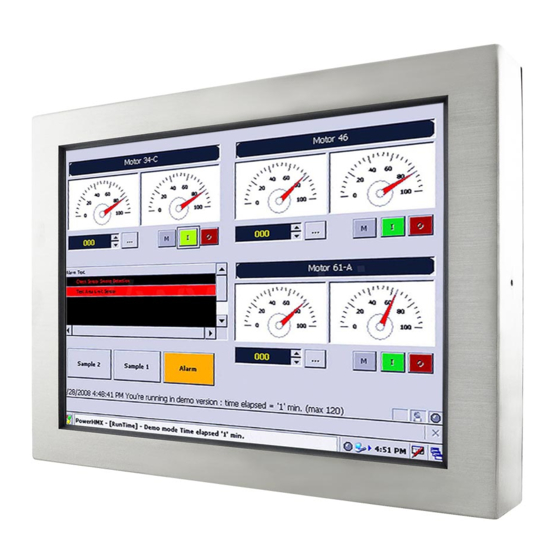

All of the models in the series are sealed to IP67 standard. Stainless housing features anti-corrosion properties making it suitable for food, chemical and pharmaceutical industries. Winmate® IP67 Stainless Resistive Panel PC goes beyond that of the standard industrial panel computers with rugged construction, powerful performance, and flexible mounting options. -
Page 8: Package Contents
1.2 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &... -
Page 9: Product Overview
1.3 Product Overview This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.3.1 Dimensions 10.4" Unit: mm 1.3.2 Dimensions 15” Unit: mm - 9 -... - Page 10 1.3.3 Dimensions 19” Unit: mm - 10 -...
-
Page 11: Connectors
1.4 Connectors IP67 Stainless Resistive Panel PC has IP67 type connectors with protection cap. - 11 -... -
Page 12: Physical Buttons And Led Indicators
1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Press to power on or power off the device LED Indicators LED Type Status... -
Page 13: Getting Started
2 GETTING STARTED 2.1 Turning on Your Device Follow the following steps to turn on your device: 1. Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. 2. Connect the power cord to AC adapter. 3. -
Page 14: How To Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1. -
Page 15: Turning Off Your Device
Settings Description The system automaticity restarts when Watchdog Countdown this countdown time reaches zero. Time Default: 10 min To set a cycle time to automatically reset watchdog timer. Periodically Feed Time Default: 9 min Enable or disable watchdog. Enable / Disable Default: Enable 2.3 Turning off Your Device To shut down your device, do the following:... -
Page 16: Installation
3 INSTALLATION 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 17: Connector Pin Assignment
Be careful when handling the unit. When the unit is plugged in, the internal components generate a lot of heat which may leave the outer casing too hot to touch. 3.2 Connector Pin Assignment This Panel PC is equipped with four connectors which are IP67 level and fool-proofing design. -
Page 18: Serial Cable
3.2.2 Serial Cable The IP67 Stainless Resistive Panel PC has IP67 serial port connector. Use serial cable to connect serial interfaces. - 18 -... -
Page 19: Ethernet Cable
3.2.3 Ethernet Cable The IP67 Stainless Resistive Panel PC has IP67 Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. - 19 -... -
Page 20: Usb 2.0 Cable
3.2.4 USB 2.0 Cable The IP67 Stainless Resistive Panel PC has one Full IP67 USB2.0 connector. Use USB2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. - 20 -... -
Page 21: Mounting
3.3.1 VESA Mounting IP65 Stainless Resistive Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Screw Hole Dimensions Diameter 10.4”, 15”, 19”... -
Page 22: Yoke Mounting
3.3.2 Yoke Mounting Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand. -
Page 23: Specifications
4 SPECIFICATIONS Hardware Specifications Model Name R10IB3S-67T2 R15IB3S-67C3 R19IB3S-67A1 Display 10.4” 15” 19” Size Resolution 1024 x 768 1280 x 768 1280 x 1024 Brightness (typ.) (typ.) (typ.) Contrast 1200 : 1 (typ.) 700 : 1 (typ.) 1000 : 1 (typ.) - Page 24 Power 1 x 12V DC Mechanical Specification Cooling Fanless System Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C Temperature Operating 30% to 90% (non-condensing) Humidity IP Rating Full IP67 Power Specifications Power Input 12V DC IN (Lockable Power Jack) Power 38W (typ.) 43W (typ.)
-
Page 25: Appendix A: Cleaning The Monitor
APPENDIX A: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. -
Page 26: Appendix B: Winmate Software Development Kit
Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP67 Stainless Resistive Panel PC. Item File Description Type Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 27 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
