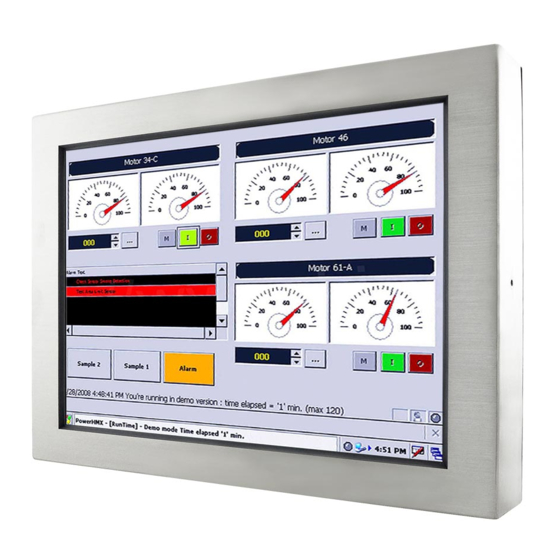

- Page 1 Full IP67 Stainless Resistive Panel PC ® ® Intel Celeron Bay Trail-M N2930 1.83 GHz R10IB3S-67T2 R15IB3S-67C3 R19IB3S-67A1 User Manual Version 1.1...
-
Page 2: Table Of Contents
USER MANUAL CONTENTS Contents PREFACE ......................... - 4 - ABOUT THIS USER MANUAL ................- 12 - CHAPTER 1: INTRODUCTION ................- 14 - 1.1 Product Features ..................- 14 - 1.2 Package Content ..................- 15 - 1.3 Schematics and Dimensions ..............- 16 - 1.3.1 Dimensions 10.4"... - Page 3 USER MANUAL CONTENTS 4.2.4 Security Menu ................- 57 - 4.2.5 Boot Configuration ................ - 58 - 4.2.6 Save & Exit ..................- 60 - 4.3 Using Recovery Wizard to Restore Computer ..........- 62 - CHAPTER 5: DRIVER INSTALLATION ..............- 66 - 5.1 Chipset Driver ..................
-
Page 4: Preface
Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for the... - Page 5 USER MANUAL PREFACE Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 6 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 7 USER MANUAL PREFACE Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 8 USER MANUAL PREFACE Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. • Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. •...
- Page 9 USER MANUAL PREFACE CAUTION/ATTENTION Use the recommended mounting apparatus to avoid risk of injury. Utiliser l’appareil de fixation recommandé pour éliminer le risque de blessure. WARNING! / AVERTISSEMENT! Only use the connection cords that come with the product. When in doubt, please contact the manufacturer.
- Page 10 USER MANUAL PREFACE Important Information Countries/ Symbol This equipment complies with essential Area requirements of: Electromagnetic Compatibility Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) European Union FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules.
- Page 11 USER MANUAL PREFACE European Union This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) • EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014...
-
Page 12: About This User Manual
This User Manual provides information about using the Winmate® IP67 Stainless Resistive Panel PC with Intel ® Celeron ® Bay Trail-M N2930 1.83 GHz processor. This User Manual applies to the IP67 Stainless Resistive Panel PC – R10IB3S-67T2, R15IB3S-67C3 and R19IB3S-67A1. -
Page 13: Chapter 1: Introduction
USER MANUAL CHAPTER 1 INTRODUCTION INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the device in the packing list. Mechanical dimensions and drawings included in this chapter. - 13 -... -
Page 14: Product Features
IP67 standard. Stainless housing features anti-corrosion properties making it suitable for food, chemical and pharmaceutical industries. Winmate® IP67 Stainless Resistive Panel PC goes beyond that of the standard industrial panel computers with rugged construction, powerful performance, and flexible mounting options. -
Page 15: Package Content
USER MANUAL CHAPTER 1 INTRODUCTION 1.2 Package Content Carefully remove the box and unpack your Panel PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list IP67 Stainless Resistive Panel PC... -
Page 16: Schematics And Dimensions
USER MANUAL CHAPTER 1 INTRODUCTION 1.3 Schematics and Dimensions This section contains mechanical drawing of the panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.3.1 Dimensions 10.4" Unit: mm 1.3.2 Dimensions 15" Unit: mm - 16 -... -
Page 17: Dimensions 19
USER MANUAL CHAPTER 1 INTRODUCTION 1.3.3 Dimensions 19” Unit: mm - 17 -... -
Page 18: Connector Placement
USER MANUAL CHAPTER 1 INTRODUCTION 1.4 Connector Placement IP67 Flat Stainless Resistive Panel PC has IP67 type connectors with protection cap. For cable specifications refer to the Ch.2,“Cable Specifications” of this user manual. - 18 -... -
Page 19: Physical Button And Led Indicators
USER MANUAL CHAPTER 1 INTRODUCTION 1.5 Physical Button and LED Indicators Physical Button and LED Indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Press to power on or power off the device LED Indicators LED Type Status... -
Page 20: Chapter 2: Getting Started
USER MANUAL CHAPTER 2 GETTING STARTED GETTING STARTED This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. - 20 -... -
Page 21: Powering On
USER MANUAL CHAPTER 2 GETTING STARTED CHAPTER 2: GETTING STARTED This chapter provides information on how to connect the panel PC to the source of power, connector pinouts and the guideline to turn on/off the Panel PC. 2.1 Powering On 2.1.1 AC Adapter Components AC Adapter supplied with the power cord. -
Page 22: Power Considerations
USER MANUAL CHAPTER 2 GETTING STARTED ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. Use only a grounded AC outlet. Install the additional PE ground wire if the local installation regulations require it. *If you do not use a grounded outlet while using the device, you may notice an electrical tingling sensation when the palms of your hands touch the device. -
Page 23: Connecting The Power
USER MANUAL CHAPTER 2 GETTING STARTED 2.1.4 Connecting the Power Cable Mounting Instruction Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. Connect the power cord to AC adapter. Plug the power cord to the AC outlet and the device will turn on automatically. -
Page 24: Connector Pin Assignments
USER MANUAL CHAPTER 2 GETTING STARTED 2.2 Connector Pin Assignments This Panel PC is equipped with four connectors which are IP67 level and fool- proofing design. Use only the cables that are included in the package. The pin assignments of the cables are as follows. 2.2.1 Power Cable The IP67 Stainless Resistive Panel PC has IP67 connector. -
Page 25: Serial Cable
USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2 Serial Cable The IP67 Stainless Resistive Panel PC has IP67 serial port connector. Use serial cable to connect serial interfaces. - 25 -... -
Page 26: Ethernet Cable
USER MANUAL CHAPTER 2 GETTING STARTED 2.2.3 Ethernet Cable The IP67 Stainless Resistive Panel PC has IP67 Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. - 26 -... -
Page 27: Usb 2.0 Cable
USER MANUAL CHAPTER 2 GETTING STARTED 2.2.4 USB 2.0 Cable Flat IP67 Stainless Resistive Panel PC has one Full IP67 USB2.0 connector. Use USB2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. - 27 -... -
Page 28: Turning On And Off
USER MANUAL CHAPTER 2 GETTING STARTED 2.3 Turning On and Off The unit is configured to Power ON when is connected to the power source (refer to Ch.2, “Powering On” section of this user manual for more details on how to power on the HMI device). -
Page 29: Chapter 3: Operating The Device
USER MANUAL CHAPTER 3 OPERATING THE DEVICE OPERATING THE DEVICE This chapter provides detailed information on how to operate the device. If you have been using touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. - 29 -... -
Page 30: Operating System
USER MANUAL CHAPTER 3 OPERATING THE DEVICE CHAPTER 3: OPERATING THE DEVICE In this chapter you will find instructions on how to operate the Panel PC with Hot Tab. 3.1 Operating System IP67 Stainless Resistive Touch Panel PC supports several versions of Windows OS: Windows 10 IoT Enterprise, Windows Embedded 8 Standard, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7 –... -
Page 31: How To Enable Watchdog
OPERATING THE DEVICE 3.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the Ch.7, “Technical Support”... -
Page 32: Chapter 4: Ami Uefi Bios Setup
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. -
Page 33: When And How To Use Bios Setup
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP CHAPTER 4: AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. 4.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del>... - Page 34 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP The following Keys can be used after entering the BIOS Setup. Function General Help Previous Values Optimized Defaults Save & Exit Exit Change Opt. Enter Select or execute command Cursor ↑ Moves to the previous item Cursor ↓...
-
Page 35: Main Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears: BIOS Setting... -
Page 36: Advanced Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. IMPORTANT: Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer. - Page 37 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect ACPI Settings Configures ACPI Enter Opens submenu settings F81866 Super IO Configures IO Enter Opens submenu Configuration settings Hardware Monitor Configures Enter Opens submenu Hardware Monitor settings S5 RTC Wake Configures RTC...
- Page 38 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.1 ACPI Settings Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates. The power supply can be adjusted for power requirements. You can use the screen to select options of ACPI configuration. A description of the selected items will appear on the right side of the screen.
- Page 39 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.2 F81866 Super IO Configuration You can use the screen to select options for Super IO Configuration, and change the value of the option selected. A description of the selected item appears on the right side of the screen.
- Page 40 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP GPI0 Port Configuration You can use the screen to change GPI0 Port setting. Use these items to set parameters related to PIN3-PIN14 Control. 4.2.2.3 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc.
- Page 41 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.4 S5 RTC Wake Settings Wake system from S5 enables or disables system wake on alarm event. It allows you to wake up the system in a certain time. Wake System from S5 with fixed time setting Select Fixed Time to set the system to wake on the specified time.
- Page 42 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP Wake system from S5 after dynamic time setting Select Dynamic Time to set the system to wake on the current time + increase minute (s). - 42 -...
- Page 43 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.5 CPU Configuration BIOS Setting Description Setting Option Effect Socket CPU This item contains Enter Open sub-menu Information socket specific CPU information. CPU Thermal Enter Open sub-menu Thermal control Configuration Limit CPUID Limits CPIID Enable/Disable Disabled/Enabled...
- Page 44 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.6 PPM Configuration BIOS Setting Description Setting Option Effect CPU C State Shows CPU C Enabled/ Enable or Disable Report State Report Disabled CPU C state report to OS Max CPU C- Allows to enter C1, C3, C6, C7, Enable or Disable...
- Page 45 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.7 Thermal Configuration This menu allows controlling thermal settings of the computer. Refer to the descriptions on the top right side of the screen for detailed information about each setting. BIOS Setting Description Setting Option Effect...
- Page 46 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.8 IDE Configuration BIOS Setting Description Setting Option Effect Serial- ATA Responsible for Enabled/ Enable or disable (SATA) supporting chipset Disabled this function drives with SATA interface. SATA Speed Allows forcing the Gen1 The maximum Support...
- Page 48 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP SATA Mode This option specifies [AHCI] Selecting this option the operation mode allows you to take full of modern IDE / advantage of the extended SATA-controller host controller SATA II chipset [IDE] SATA controller will operate in a mechanism similar to a conventional...
- Page 49 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.9 Miscellaneous Configuration OS Selection This item allows users to select the proper Operating System. BIOS Setting Description Setting Option Effect Windows 8.X Allows user to Enter Use Windows choose the proper OS. Windows 7 Allows user to Enter...
- Page 50 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.10 CSM Configuration - 50 -...
- Page 51 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect CSM Support The Compatibility Enabled/ Enable or disable Support Module Disabled the Compatibility (CSM) is a Support Module component of the UEFI firmware that provides legacy BIOS compatibility by emulating a BIOS environment,...
- Page 52 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.11 USB Configuration - 52 -...
- Page 53 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Legacy USB User can enable Disable Will keep USB Support or disable USB devices available port. only for EFI applications. Enable Enable all the USB devices USB 3.0 Support User can enable Enable...
- Page 54 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.12 Platform Trust Technology BIOS Setting Description Setting Option Effect fTPM Trusted Platform Enabled/Disabled Enables or Module disables this parameters function - 54 -...
- Page 55 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.13 Security Configuration BIOS Setting Description Setting Option Effect Trusted Execution Enabled/Disabled Enables or Technology disables this parameters function TXE HMRFPO TXE HMRFPO Enabled/Disabled Enables or parameters disables this function TXE Firmware TXE Firmware Enabled/Disabled Enables or...
-
Page 56: Chipset Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3 Chipset Menu For items marked with ►, please press <Enter> for more options. BIOS Setting Description Setting Option Effect High Precious Allow to set up Enabled/ Enables/Disables Timer High Precious Disabled this function Timer settings Restore AC... -
Page 57: Security Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.4 Security Menu In the Security menu, users can set administrator password, user password, and HDD security configuration. BIOS Setting Description Setting Option Effect Administrator Displays whether Enter Enter password Password or not an administrator password has been set. -
Page 58: Boot Configuration
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.5 Boot Configuration The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system. - Page 59 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Setup Prompt Allows user to Enter Set the prompt Timeout configure the timeout number of seconds to stay in BIOS setup prompt screen. Boot NumLock Enables or Remains On State disables NumLock...
-
Page 60: Save & Exit
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.6 Save & Exit The Exit menu displays a way how to exit BIOS Setup utility. After finishing your settings, you must save and exit for changes to be applied. - 60 -... - Page 61 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Save Changes This saves the Enter <YES> Save changes and Exit changes to the CMOS and exits the BIOS Setup program. Discard This exits the BIOS Enter <YES>...
-
Page 62: Using Recovery Wizard To Restore Computer
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: Plug-in the AC adapter to Bay Trail series computer. - Page 63 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed. - 63 -...
-
Page 64: Chapter 5: Driver Installation
USER MANUAL CHAPTER 5 DRIVER INSTALLATION DRIVER INSTALLATION This chapter describes how to install all necessary drivers. - 64 -... -
Page 66: Chipset Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION CHAPTER 5: DRIVER INSTALLATION This chapter provides guideline to driver installations. 5.1 Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. Step 2 Click Next to continue. - Page 67 USER MANUAL CHAPTER 5 DRIVER INSTALLATION Step 3 Click Yes to agree the license terms. Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation.
-
Page 68: Graphics Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.2 Graphics Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Graphics Driver” and click Setup to execute the setup. Step 2 Setup Welcome Window will appear, click Next to continue the process. Step 3 Carefully read the license terms and click Yes to agree. -
Page 69: Intel Sideband Fabric Device (Intel Mbi) Driver (Windows 8)
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.3 Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) Step 1 Insert the CD that comes with the motherboard. Open the file document “MBI” and click “Setup.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. -
Page 70: Intel Trusted Engine Interface (Intel Txe) Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.4 Intel Trusted Engine Interface (Intel TXE) Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “TXE” and click “Setup TXE.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. -
Page 71: Intel Network Connections Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.5 Intel Network Connections Driver User must confirm the type of operating system is being used before installing Intel Network Connections. Follow the steps below to complete the installation. Step 1 Click “PROWin64.exe” Step 2 Click Yes to start the installation. Step 3 Welcome window will appear, click Next to install the driver. -
Page 72: Audio Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.6 Audio Driver The ALC886 series are high-performance 7.1+2 channel high definition audio codecs that provide ten DAC channels for simultaneous support of 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. -
Page 73: Chapter 6: Mounting
USER MANUAL CHAPTER 6 MOUNTING MOUNTING This chapter provides step-by-step mounting guide for all available mounting options. - 73 -... -
Page 74: Cable Mounting Considerations
USER MANUAL CHAPTER 6 MOUNTING CHAPTER 6: MOUNTING This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. WARNING! / AVERTISSEMENT! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. Suivez les instructions de montage et d'utilisation recommandé... -
Page 75: Safety Precautions
USER MANUAL CHAPTER 6 MOUNTING 6.2 Safety Precautions Observe the following common safety precautions before installing any electronic device: • Use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must be crossed make sure the wires are perpendicular at the intersection point. -
Page 76: Mounting Guide
6.3.1 VESA Mount The IP67 Stainless Resistive Touch Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Screw hole diameter Dimensions 10.4”, 15”,19”... -
Page 77: Yoke Mount
MOUNTING 6.3.2 Yoke Mount Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand. -
Page 78: Chapter 7: Technical Support
USER MANUAL CHAPTER 7 TECHNICAL SUPPORT TECHNICAL SUPPORT This chapter includes directory to Winmate technical support. - 78 -... -
Page 79: Software Developer Support
Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Winmate Download Center > Support > Download Center > Full IP67 Go to http://www.winmate.com /... -
Page 80: Problem Report Form
USER MANUAL CHAPTER 7 TECHNICAL SUPPORT 7.2 Problem Report Form IP67 Stainless Resistive Touch Panel PC Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible. -
Page 81: Appendix A: Product Specifications
USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS This section includes product specifications. Appendix - 81 -... - Page 82 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS APPENDIX A: PRODUCT SPECIFICATIONS Hardware Specifications Model Name R10IB3S-67T2 R15IB3S-67C3 R19IB3S-67A1 Display 10.4” 15” Size 19” 350 ����/�� 300 ����/�� 400 ����/�� Resolution 1024 x 768 1280 x 768 1280 x 1024 Brightness (typ.) (typ.)
- Page 83 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Mechanical Specification Cooling Fanless System Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C Temperature Operating 30% to 90% (non-condensing) Humidity IP Rating Full IP67 Power Specifications Power Input 12V DC IN (Lockable Power Jack) Power 38W (typ.) 43W (typ.)
-
Page 84: Appendix B: Ordering Information
USER MANUAL APPENDIX B ORDERING INFORMATION ORDERING INFORMATION This section includes product specifications. Appendix - 84 -... - Page 85 USER MANUAL APPENDIX B ORDERING INFORMATION APPENDIX B: ORDERING INFORMATION IP67 Stainless Resistive Touch Panel PC available for ordering in the following configurations. Panel PC Windows 10 IoT Enterprise Windows Embedded 8 SODIMM DDR3L Standard 2 GB/ 4 GB/ 8 GB Windows Embedded 7 Standard Storage...
- Page 86 NOTES _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ ________________________________________________________________...
- Page 87 NOTES _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ ________________________________________________________________...
- Page 88 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
