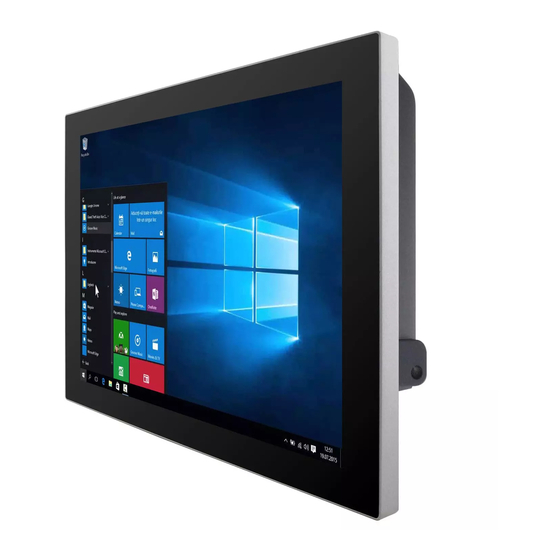

Winmate W07FA3S-GCM1 Quick Start Manual
  1. Manuals
  2. Brands
  3. Winmate Manuals
  4. Touch Panel
  5. W07FA3S-GCM1
  6. Quick start manual

Winmate W07FA3S-GCM1 Quick Start Manual

G-win front ip65 p-cap panel pc freescale cortex a9 i.mx6
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111I102G
Android 4.4 OS
Please read these instructions carefully before using this product, and save this manual for future use.
G-WIN Front IP65
P-Cap Panel PC
Freescale® Cortex® A9 i.MX6
Quick Start Guide
Quad Core
W07FA3S-GCM1(HB)
W10FA3S-GCH1(HB)
R10FA3S-GCT2(HB)
R12FA3S-GCM2(HB)
R15FA3S-GCC3(HB)
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W07FA3S-GCM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate W07FA3S-GCM1

Summary of Contents for Winmate W07FA3S-GCM1

  • Page 1 R12FA3S-GCM2(HB) R15FA3S-GCC3(HB) Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I102G Android 4.4 OS Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    - 33 - VESA Mounting - 34 - Panel Mounting - 35 - Specifications - 36 - Appendix - 38 - Appendix A: Cleaning the Monitor - 38 - Appendix B: Winmate Software Development Kit - 39 - - 2 -...
  • Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful  interference. This device must accept any interference  received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
  • Page 4 European Union Electromagnetic Compatibility Directive (2014/30/EU)  EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014 o IEC61000-4-8: 2010 o IEC61000-4-11: 2004  EN55032: 2012/AC:2013  EN61000-3-2:2014  EN61000-3-3:2013 Low Voltage Directive (2014/35/EU) ...
  • Page 5 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We...
  • Page 6 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
  • Page 7 Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

  • Page 8: Introduction

    Introduction Congratulations on purchasing Winmate® GC65 Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed for heavy duty applications. With rugged construction, ultimate computing power, GC65 series are guaranteed to meet "heavy duty" needs. This series feature high...

  • Page 9: Package Content

    Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &...

  • Page 10: Product Overview

    Product Overview W07FA3S-GCM1(HB) Unit: mm № Description № Description ① Micro SD Card Reader ⑥ USB 2.0 ② LAN ⑦ 9~24V DC in Terminal Block ③ USB OTG ⑧ OSD Control Panel ④ CANBus ⑨ 1 Watt Speaker ⑤ RS-232/422/485...
  • Page 11 W10FA3S-GCH1(HB) Unit: mm № Description № Description ① Micro SD Card Reader ⑥ USB 2.0 ② LAN ⑦ 12V DC in Terminal Block ③ USB OTG ⑧ OSD Control Panel ④ CANBus ⑨ 1 Watt Speaker ⑤ RS-232/422/485 - 11 -...
  • Page 12 R10FA3S-GCT2(HB) Unit: mm № Description № Description ① Micro SD Card Reader ⑥ USB 2.0 ② LAN ⑦ 12V DC in Terminal Block ③ USB OTG ⑧ OSD Control Panel ④ CANBus ⑨ 1 Watt Speaker ⑤ RS-232/422/485 - 12 -...
  • Page 13 R12FA3S-GCM2(HB) Unit: mm № Description № Description ① Micro SD Card Reader ⑥ USB 2.0 ② LAN ⑦ 12V DC in Terminal Block ③ USB OTG ⑧ OSD Control Panel ④ CANBus ⑨ 2 Watt Speaker ⑤ RS-232/422/485 - 13 -...
  • Page 14 R15FA3S-GCC3(HB) Unit: mm № Description № Description ① Micro SD Card Reader ⑥ USB 2.0 ② LAN ⑦ 12V DC in Terminal Block ③ USB OTG ⑧ OSD Control Panel ④ CANBus ⑨ 2 Watt Speaker ⑤ RS-232/422/485 - 14 -...

  • Page 15: Getting Started

    Getting Started Turning On Your Device Follow the following steps to turn on your device: 1. Connect the Panel PC to a thermal block (2-pin). 2. Connect the other side of the thermal block to the AC adapter. 3. Connect the AC adapter to the power cord. 4.

  • Page 16: Operating The Panel Pc

    Operating the Panel PC Winmate® GC65 Panel PC comes with Android 4.4 OS (Default). IMPORTANT: The device is shipped with the OS System according to your order. Contact us if you have any questions regarding OS settings. - 16 -...
  • Page 17 Setting up the Device When you first turn on your device, you will see a Welcome screen. Choose the language you want and touch Start or the Start icon. When prompted, you can sign in with your Google Account to create one at that time.
  • Page 18 Quick Settings To open Settings, Swipe down from the top right of the screen and touch the Settings icon. You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > NOTE Device >...

  • Page 19: Ethernet

    Ethernet 1. Connect Ethernet Cable to the device. 2. Go to APPS > Ethernet 3. Ethernet APP main menu appears Setting Description Check Ethernet connection parameters: IP Check Ethernet mode, IP address, DNS address and others Configure Enable Ethernet connection and configure Ethernet its such as connection type Configure advanced parameters of the...
  • Page 20 Configuring Ethernet To configure Ethernet settings go to Apps > Ethernet > Configure Ethernet. Default settings: Ethernet OFF. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description The device automatically capture IP-address from DHCP the router Allows to manually set up IP-address, DNS, Network Static IP and Gateway - 20 -...
  • Page 21 Checking Ethernet To check the Ethernet settings go to APPS > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. - 21 -...

  • Page 22: Winmate® Home Manager (Whm)

    Winmate® Home Manager (WHM) Winmate® Panel PC running on Android OS comes with preinstalled APP named Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 23 Home Manager automatically after booting. Set the WHM password. Password Manager (Default password is “0000”) Displays information about Winmate® Home About Manager. 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
  • Page 24 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it.  Any time user press home key or back key, the system will go back to the same application which you have selected.
  • Page 25 How to Unlock Applications Follow the instruction below to reset WHM. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager service. 2. System will request the password to login. Default password is “0000”.
  • Page 26 3. Restart the system and you will go back to the normal Launcher. How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change Password.

  • Page 27: Turning Off Your Device

    Turning Off Your Device To turn off the device: 1. Swipe down from the top right of the screen. 2. Touch the POWER OFF item. 3. Again touch POWER OFF item. Disconnect the power cord from the Panel PC to completely power off the device.

  • Page 28: Installation

    Installation Wiring Requirements The following common safety precautions should be observed before installing any electronic device:  Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.

  • Page 29: Connecting To Other Devices

    Connecting to Other Devices This section explains how to connect external interfaces to the Panel Power Connector Panel PC has DC power source input is a 2 pin terminal block connector that accepts power input. 7” Panel PC – 12V DC. 10.1”, 10.4”, 12.1”, 15”...
  • Page 30 RJ45 Connector The GC65 Panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Pin № Signal Name Signal Name TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- USB 2.0 Connector Use USB A Type (USB2.0) connector to connect your HMI device to other USB2.0 compatible devices.
  • Page 31 Micro SD Card Slot Insert microSD card to microSD card slot to extend the memory of your Panel PC. Signal Signal № № Name Name DATA2 DATA3 +3.3V DATA0 DATA1 Card_Det CANBus Connector The connector secured to the motherboard with two screws. Signal Signal №...

  • Page 33: Mounting

    RAM Mounting Notice that only 7” model support RAM Mounting to fit any vehicle application. *The picture is for demonstration purposes only. RAM Mounting accessories are not supplied by Winmate. - 33 -...

  • Page 34: Vesa Mounting

    100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 34 -...

  • Page 35: Panel Mounting

    Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 7” 174.4 x 130.4 M4x4 10.1”...

  • Page 36: Specifications

    Specifications Panel PC Specifications Model Name W07FA3S- W10FA3S- R10FA3S- R12FA3S- R15FA3S- GCM1(HB) GCH1(HB) GCT2(HB) GCM2(HB) GCC3(HB) Display 10.1” TFT 7" TFT 10.4” TFT 12.1” TFT 15” TFT Size/Type (Wide) (Wide) 1024 x 768 1024 x 768 Resolution 1024 x 600 1024 x 600 1024 x 768 350 nits...
  • Page 37 Input/ Output COM Port 1 x RS-232/422/485 CANBus Port 1 x CANbus USB Port 1 x USB 2.0, 1 x USB OTG Ethernet 1 x RJ 45-10/100/1000 Mbps (LAN) Speaker 1 x 1 Watt/ 2 Watt Speaker SD Card 1 x Micro SD Card Reader Power Specifications Power Input 9-24V DC...

  • Page 38: Appendix

    Appendix Appendix A: Cleaning the Monitor Before cleaning:  Make sure the device is turned off.  Disconnect the power cable from any AC outlet. When cleaning:  Never spray or pour any liquid directly on the screen or case. ...

  • Page 39: Appendix B: Winmate Software Development Kit

    Appendix B: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for Winmate® GC65 Panel PC with Freescale® Cortex® A9 processor: Item File Type Description Android Driver Programming Guide Android SDK...
  • Page 40 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
