Summary of Contents for Winmate G-WIN

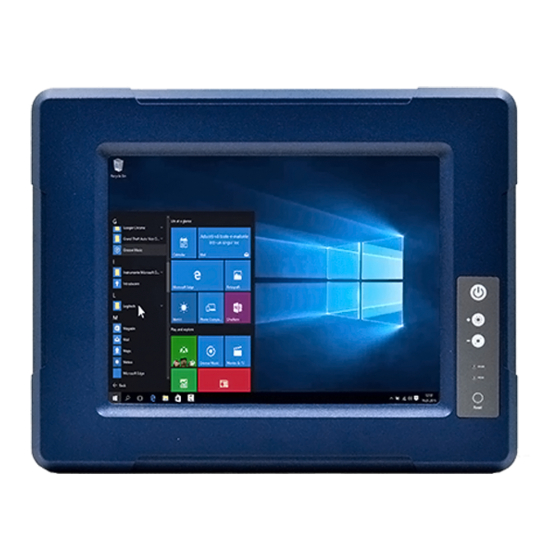

- Page 1 G-WIN Vehicle Mount Panel PC Intel® Core™ i5-7200U 2.5GHz (turbo to 3.1GHz) Model No.: R10IK3S-VMT2 R15IK3S-VMC3(HB) Quick Start Guide Version 1.0 Document Part Number: 9152111I102S Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
G-WIN Vehicle Mount Panel PC Quick Start Guide Contents Preface Chapter 1: Introduction 1.1 Features 1.2 Package Contents 1.3 Mechanical Concept 1.4 Description of Parts 1.4.1 Connector Placement 1.4.2 Physical Buttons and LED Indicators Chapter 2: Getting Started 2.1 Turning On and Off Your Device 2.2 How to Enable Watchdog... -
Page 3: Preface
Preface Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"... - Page 4 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume...
- Page 5 Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
-
Page 6: Chapter 1: Introduction
G-WIN Vehicle Mount Panel PC Quick Start Guide Chapter 1: Introduction Congratulations on purchasing Winmate® G-WIN Vehicle Mount Panel PC. Winmate® G-WIN Vehicle Mount Panel PC comes with fanless, low power but high performance platform design, sunlight readable panel, WLAN integration, great ability for anti-shock & vibration, IP65 protection and anti-corrosion coating with aluminum alloy housing. -
Page 7: Mechanical Concept
Chapter 1: Introduction 1.3 Mechanical Concept On the picture below you can see spare parts exploded drawing of a standard G-WIN Vehicle Mount Panel... -
Page 8: Description Of Parts
G-WIN Vehicle Mount Panel PC Quick Start Guide 1.4 Description of Parts 1.4.1 Connector Placement G-WIN Panel PC 10.4” № № Description Description ① ⑤ 9-36V DC Terminal Block 2 x USB3.0 ② ⑥ CAN Bus or Digital I/O (Optional) HDMI1.4a... -
Page 9: Physical Buttons And Led Indicators
Chapter 1: Introduction 1.4.2 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. G-WIN Panel PC 10.4” Physical Buttons Icon Button Function Power Turn ON or turn OFF the Panel PC. - Page 10 G-WIN Vehicle Mount Panel PC Quick Start Guide LED Indicators Indicator Color Definition Green Power is ON and the device functions normally Orange Panel PC is suspended Green HDD is active HDD is inactive G-WIN Panel PC 15”...
- Page 11 Chapter 1: Introduction Physical Buttons Icon Button Function Power Turn ON or turn OFF the Panel PC. Clear any pending errors or events and brings a system to Reset normal condition or an initial state. Lock / Unlock Tap this button to lock / unlock the function of OSD panel. Tap the button once to AUTOMATICALLY adjust brightness Auto Dimming/ mode.
-
Page 12: Chapter 2: Getting Started
G-WIN Vehicle Mount Panel PC Quick Start Guide Chapter 2: Getting Started 2.1 Turning On and Off Your Device To turn on the Panel PC: 1. Connect the Panel PC to the source of power. 2. Press the power on switch to turn the Panel PC on. - Page 13 Chapter 2: Getting Started Connecting to AC Power Source Connect the AC adapter to the 3 pin terminal block located on the back side of the Panel PC. Connect the power cord to AC adapter. Plug the power cord in to the AC outlet and the device will turn on automatically. AC Adapter specifications vary by panel size.
-
Page 14: How To Enable Watchdog
2.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. -
Page 15: Chapter 3: Installation
Chapter 3: Installation Chapter 3: Installation 3.1 Connecting to Other Devices 3.1.1 Power Input Connector G-WIN Vehicle Mount Panel PC uses 3 Pin Terminal Block for power input and accepts voltage 9-36V DC. Minimum Voltage 9V Maximum Voltage 36V Voltage Maximum Current 6.6A... -
Page 16: Serial Interface (Rs-232/422/485) Connector
STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ USB_D- USB_D+ STDA_SSRX- STDA_SSRX+ STDA_SSTX- STDA_SSTX+ 3.1.6 HDMI Connector G-WIN Panel PC uses HDMI1.4a connector to connect to the external display. Pin № Pin № Signal Name Signal Name TMDS_DATA2+ TMDS_DATA2- TMDS_DATA1+ TMDS_DATA1- TMDS_DATA0+ TMDS_DATA0- TMDS_CLOCK+... -
Page 17: Digital Input/ Output Connector (Optional)
Chapter 3: Installation 3.1.7 Digital Input/ Output Connector (Optional) Notice that Digital Input/ Output Connector is an optional connector for G-WIN Vehicle Mount Panel PC and may not be present in your device. Pin № Pin № Signal Name Signal Name... -
Page 18: Mounting
G-WIN Vehicle Mount Panel PC devices come with different mounting options suitable for most of the industrial and commercial applications. 3.2.1 VESA Mounting G-WIN Vehicle Mount Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size... -
Page 19: Yoke Mounting
Chapter 3: Installation 3.2.2 Yoke Mounting Yoke Mount solution allows to mount your device on a wall or ceiling. You can purchase dash/ yoke mounting kit from Winmate as an optional accessory. Yoke Mounting Kit: Size Winmate Part Number 10.4”... - Page 20 G-WIN Vehicle Mount Panel PC Quick Start Guide Mounting steps: 1. Place the G-WIN Vehicle Mount Panel PC on the bracket stand, aiming screw hole for each other. 2. Secure three M5x10 screws to fix the device upon the bracket stand.
-
Page 21: Roof Mounting
Chapter 3: Installation 3.2.3 Roof Mounting Roof mounting allows mounting your device on the roof. You can purchase roof mounting kit from Winmate as an optional accessory. U-Shape Mounting Kit: Size Winmate Part Number 10.4” 98K010A00018... - Page 22 G-WIN Vehicle Mount Panel PC Quick Start Guide U-Shape Mounting Kit Mechanical Drawing For 10.4” G-WIN Vehicle Mount Panel PC...
-
Page 23: Appendix
To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Go to www.winmate.com >Support > Download Center > Rugged Series > G-WIN Rugged PC-IK32... - Page 24 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
