Winmate W10FA3S-GSH1 Quick Start Manual

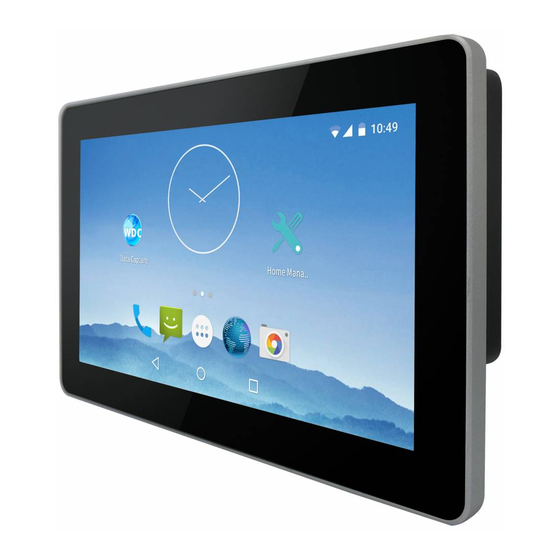

G-win slim ip65 p-cap panel pc, freescale cortex a9 i.mx6 quad core (optional quad core)
Hide thumbs Also See for W10FA3S-GSH1:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 91521110100O
Android 6.0
Please read these instructions carefully before using this product, and save this manual for future use.
G-WIN Slim IP65
P-CAP Panel PC
Freescale® Cortex® A9 i.MX6
Quad Core (Optional Quad Core)
R12FA3S-GSM2(HB)
R15FA3S-GSC3(HB)
W07FA3S-GSO1
W10FA3S-GSH1
R10FA3S-GST2
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W10FA3S-GSH1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate W10FA3S-GSH1

Summary of Contents for Winmate W10FA3S-GSH1

  • Page 1 R12FA3S-GSM2(HB) R15FA3S-GSC3(HB) Quick Start Guide V1.1 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 91521110100O Android 6.0 Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    3 INSTALLATION 3.1 Wiring Requirements 3.2 Connecting to Other Devices 3.3 Connector Description 4 Mounting 4.1 VESA Mounting 4.2 Panel Mounting 5 SPECIFICATIONS Hardware Specifications APPENDIX Appendix A: Cleaning the Monitor Appendix B: Winmate Software Development Kit - 2 -...
  • Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful  interference. This device must accept any interference  received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
  • Page 4 European Union Electromagnetic Compatibility Directive (2014/30/EU)  EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014 o IEC61000-4-8: 2010 o IEC61000-4-11: 2004  EN55032: 2012/AC:2013  EN61000-3-2:2014  EN61000-3-3:2013 Low Voltage Directive (2014/35/EU) ...
  • Page 5 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We...
  • Page 6 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
  • Page 7 Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

  • Page 8: Introduction

    1 INTRODUCTION Congratulations on purchasing Winmate® G-WIN Slim IP65 with P- CAP Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN S65 series is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 12.1” and 15”...

  • Page 9: Package Contents

    1.2 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &...

  • Page 10: Description Of Parts

    1.3 Description of Parts W07FA3S-GSO1 Unit: mm Dimensions: 189.4 x 145.4 x 39.8 № № Description Description USB OTG, Console Port, ① 12V DC (M12 Type) ④ MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 10 -...
  • Page 11 W10FA3S-GSH1 Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № Description № Description USB OTG, Console Port, ① 12V DC (M12 Type) ④ MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 11 -...
  • Page 12 R10FA3S-GST2 Unit: mm Dimensions: 252.61 x 198 x 36.4 № Description № Description USB OTG, Console Port, ① 12V DC (M12 Type) ④ MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 12 -...
  • Page 13 R12FA3S-GSM2(HB) Unit: mm Dimensions: 296.2 x 226.7 x 45.5 № № Description Description USB OTG, Console Port, ① 12V DC (M12 Type) ④ MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 13 -...
  • Page 14 R15FA3S-GSC3(HB) Unit: mm Dimensions: 363.4 x 277.86 x 45.2 № № Description Description USB OTG, Console Port, ① 12V DC (M12 Type) ④ MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 14 -...

  • Page 15: Getting Started

    2 GETTING STARTED 2.1 Turning on Your Device 1. Remove the protective cap of the power connector. 2. Connect power cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection.

  • Page 16: Configuring Serial Port Settings

    2.2 Configuring Serial Port Settings Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port settings application for Android OS. To configure serial port settings: 1. Settings > Accessibility. 2. Accessibility > System: Comport-Setting. - 16 -...
  • Page 17 3. Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. 4. Comport 1 > RS232/RS422/RS485 * Configure Comport 1 settings - 17 -...

  • Page 18: Brightness Adjustment

    2.3 Brightness Adjustment User can adjust the screen brightness in Android settings. Pull down from the top of the screen to get the notifications area. You can also access display settings in the settings menu. To adjust the brightness of the screen: 1.

  • Page 19: Operating The Device

    2.4 Operating the Device G-WIN Slim IP65 with P-CAP Panel PC runs on Android 6.0 OS (Default). 2.4.1 Setting up the Device When you first turn on your device, you will see a Welcome screen. Choose the language you want and touch Start or the Start icon. When prompted, you can sign in with your Google Account to create one at that time.
  • Page 20 Back Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further. Home Returns to the Home screen. To get suggestions based on the screen you’re currently viewing, touch &...
  • Page 21 2.4.3 Quick Settings You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > Device > Sound to change the volume. Use Quick Settings to easily change frequently used settings, like turning on Wi-Fi.
  • Page 22 Open the main Settings menu by touching Settings at the top right. - 22 -...

  • Page 23: Ethernet

    2.5 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. 3. Ethernet APP main menu appears - 23 -...
  • Page 24 Setting Description Check Ethernet connection parameters: IP Check Ethernet mode, IP address, DNS address and others Configure Enable Ethernet connection and configure its Ethernet such as connection type Advanced Configure advanced parameters of the Settings Ethernet 2.5.1 Configuring Ethernet Go to All Apps >...
  • Page 25 2.5.2 Checking Ethernet To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. - 25 -...

  • Page 26: Winmate® Home Manager (Whm)

    2.6 Winmate® Home Manager (WHM) Winmate® Panel PC running on Android OS comes with preinstalled APP named Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 27 Menu Description Set which app you want to run up automatically Home Manager after booting Password Set the WHM password (Default password is “0000”). Manager About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
  • Page 28 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key; the system will go back to the same application which you have selected.
  • Page 29 2.6.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2. System will request the password to login. Touch OK. - 29 -...
  • Page 30 Default password is “0000”. 3. Restart the system and you will go back to the normal Launcher. 2.6.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change Password.

  • Page 31: Turning Off Your Device

    2.7 Turning off Your Device To turn off the device: 1. Swipe down from the top right of the screen. 2. Touch the POWER OFF item. 3. Again touch POWER OFF item. Disconnect the power cord from the HMI device to completely power off the device.

  • Page 32: Installation

    3 INSTALLATION 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device:  Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.

  • Page 33: Connecting To Other Devices

    3.2 Connecting to Other Devices This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used.

  • Page 34: Connector Description

    3.3 Connector Description The Panel PC features M12 type connectors with protective cap and has full IP65 rating. 3.3.1 Power Input Connector Panel PC has M12 type 4 pin male power input connector which accepts 12V DC power input. Use IP65 power cable to connect the Panel PC to the source of power.
  • Page 35 3.3.2 Serial Interface Connector Panel PC has M12 type 10 pin male RS-232 connector. Use IP65 serial cable to connect the Panel PC to external devices. - 35 -...
  • Page 36 3.3.3 Giga LAN + USB 2.0 Connector Panel PC has M12 type 12 pin male Giga LAN and USB connector that supports two LAN and one USB 2.0. - 36 -...
  • Page 37 3.3.4 USB OTG Connector Panel PC has USB OTG connector located either on the rear side or on the bottom. Use USB OTG connector to connect the Panel PC to other USB On-The-Go compliant devices such as flash drives, digital cameras, mice or keyboards.

  • Page 38: Mounting

    100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 38 -...

  • Page 39: Panel Mounting

    4.2 Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 7” 174.4 x 130.4 M4x4 10.1”...

  • Page 40: Specifications

    5 SPECIFICATIONS Hardware Specifications Model Name W07FA3S- W10FA3S- R10FA3S- R12FA3S- R15FA3S- GSO1 GSH1 GST2 GSM2(HB) GSC3(HB) Display 10.1” TFT 7" TFT 10.4” 12.1” TFT 15” TFT Size/Type (Wide) (Wide) 1024 x 768 1024 x 768 1024 x 768 Resolution 1024 x 600 1024 x 600 200 nits 500 nits...
  • Page 41 Input/ Output COM Port 1 x RS232/422/485 (M12 Type) USB Port 1 x USB 2.0 (M12 Type), 1 x USB OTG (On side) Ethernet 1 x 10/100/100 LAN (M12 Type) Speaker 1 x 1 Watt Speaker SD Slot MicroSD Card Slot Power Specifications Power Input 9-24V DC...

  • Page 42: Appendix

    APPENDIX Appendix A: Cleaning the Monitor Before cleaning:  Make sure the device is turned off.  Disconnect the power cable from any AC outlet. When cleaning:  Never spray or pour any liquid directly on the screen or case. ...

  • Page 43: Appendix B: Winmate Software Development Kit

    Appendix B: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for Winmate® G-WIN Slim IP65 with P-CAP Panel PC with Freescale® Cortex® A9 processor: Item File Type Description Android Driver Programming Guide...
  • Page 44 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
