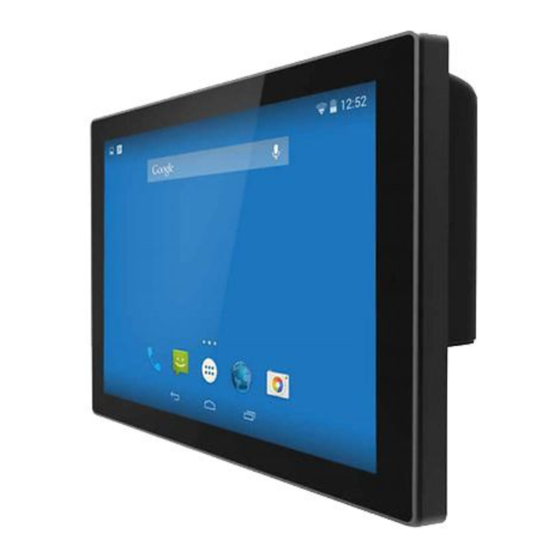

Winmate W10FA3S-GCH1 User Manual

7~15” g-win front ip65 p-cap panel pc
Hide thumbs Also See for W10FA3S-GCH1:
Table of Contents

Advertisement

Quick Links

Download this manual

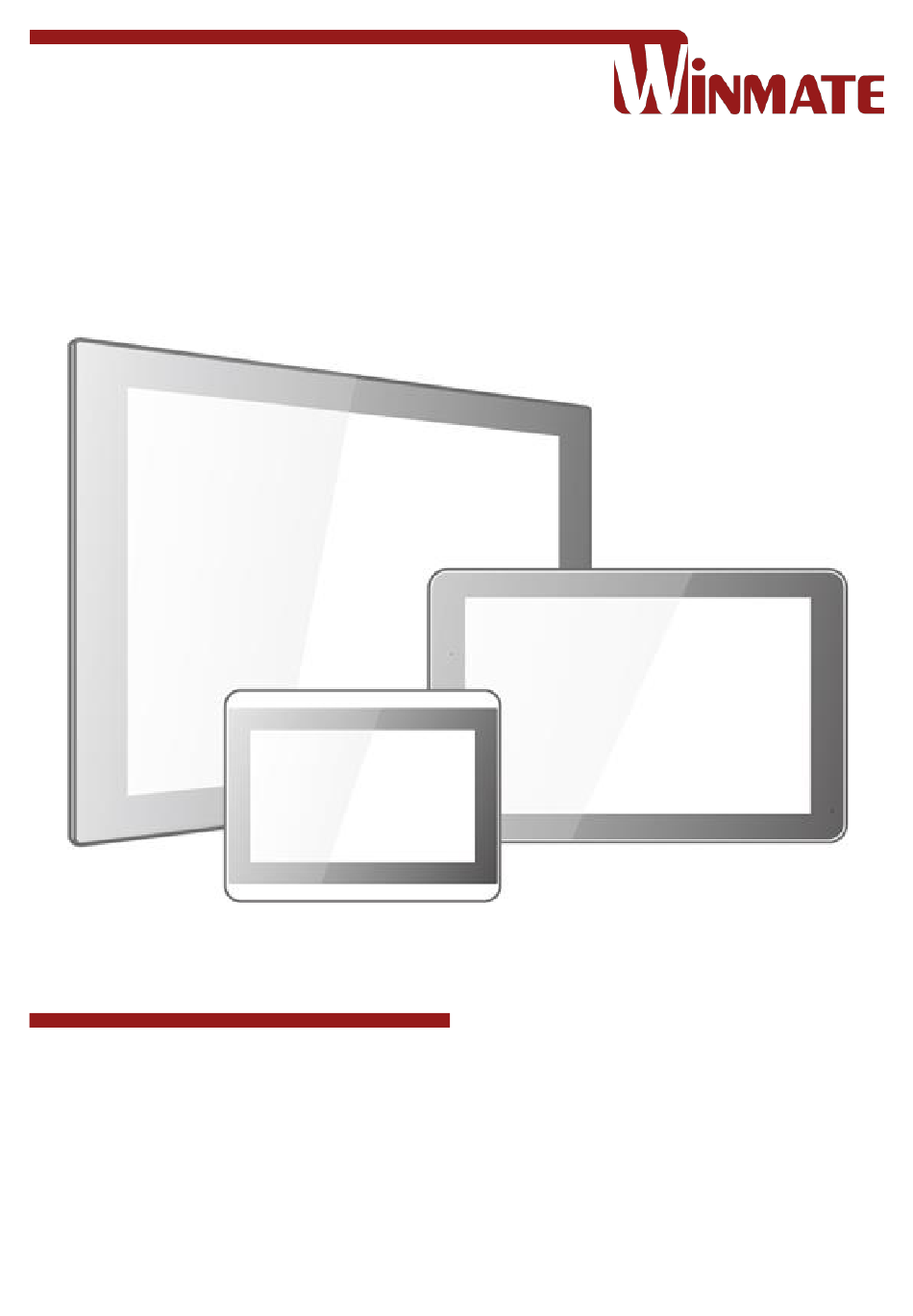

7~15" G-WIN Front IP65
P-Cap Panel PC
Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz
Tailor Made for Your Heavy Duty Needs
Model No. W07FA3S-GCO1
W10FA3S-GCH1(HB)
R10FA3S-GCT2(HB)
R12FA3S-GCM2(HB)
R15FA3S-GCC3(HB)
User Manual
Document Version 1.0
Document Part No. 9152111I102G
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W10FA3S-GCH1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate W10FA3S-GCH1

Summary of Contents for Winmate W10FA3S-GCH1

  • Page 1 7~15” G-WIN Front IP65 P-Cap Panel PC Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz Tailor Made for Your Heavy Duty Needs Model No. W07FA3S-GCO1 W10FA3S-GCH1(HB) R10FA3S-GCT2(HB) R12FA3S-GCM2(HB) R15FA3S-GCC3(HB) User Manual Document Version 1.0 Document Part No. 9152111I102G Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    4.3 Home Screen 4.4 Quick Settings 4.5 Ethernet 4.5.1 Configuring Ethernet 4.5.2 Checking Ethernet Settings 4.6 Winmate® Home Manager (WHM) 4.6.1 How to Lock Applications 4.6.2 How to Unlock Applications 4.6.3 How to Change Password 4.7 Configuring Serial Port Setting Chapter 5: Software Installation 5.1 Android Debug Bridge (ADB) Driver Installation...

  • Page 3: Preface

    5.4 OTA Update Guide 5.5 OS Image Update Guide Chapter 6: Technical Support 6.1 About Technical Support 6.2 Problem Report Form - 55 - Appendix Appendix A: Product Specifications Appendix B: Cleaning the Monitor Appendix C: Winmate Software Development Kit...

  • Page 4: Preface

    GC-Series Panel PC User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 5 Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
  • Page 6 GC-Series Panel PC User Manual Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
  • Page 7 Preface the user manual. o The equipment has been dropped and damaged. o The equipment has obvious signs of breakage.  Do not leave this equipment in an uncontrolled environment where the storage temperature is below -20°C (-4°F) or above 60°C (140°F). It may damage the equipment.

  • Page 8: About This User Manual

    Low Voltage Directive (2014/35/EU)  EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013 About This User Manual This User Manual provides information about using the Winmate® G-WIN GC-Series Panel PC. This User Manual applies to the G-WIN GC-Series Panel PC - W07FA3S-GCO1, W10FA3S-GCH1(HB), R10FA3S-GCT2(HB), R12FA3S-GCM2(HB), R15FA3S-GCC3(HB).

  • Page 9: Chapter 1: Introduction

    Chapter 1: Introduction Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the panel PC in the packing list. Mechanical dimensions and drawings included in this chapter.

  • Page 10: Overview

    Chapter 1: Introduction 1.1 Overview Congratulations on purchasing Winmate® GC65 Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed for heavy duty applications. With rugged construction, ultimate computing power, GC65 series are guaranteed to meet "heavy duty"...

  • Page 11: Product Overview

    GC-Series Panel PC User Manual 1.4 Product Overview W07FA3S-GCO1 Unit: mm № № Description Description ① ⑥ Micro SD Card Reader USB 2.0 ② ⑦ 9~24V DC in Terminal Block ③ ⑧ USB OTG OSD Control Panel ④ ⑨ CANBus 1 Watt Speaker ⑤...
  • Page 12 Chapter 1: Introduction W10FA3S-GCH1(HB) Unit: mm № № Description Description ① ⑥ Micro SD Card Reader USB 2.0 ② ⑦ 12V DC in Terminal Block ③ ⑧ USB OTG OSD Control Panel ④ ⑨ CANBus 1 Watt Speaker ⑤ RS-232/422/485...
  • Page 13 GC-Series Panel PC User Manual R10FA3S-GCT2(HB) Unit: mm № № Description Description ① ⑥ Micro SD Card Reader USB 2.0 ② ⑦ 12V DC in Terminal Block ③ ⑧ USB OTG OSD Control Panel ④ ⑨ CANBus 1 Watt Speaker ⑤...
  • Page 14 Chapter 1: Introduction R12FA3S-GCM2(HB) Unit: mm № № Description Description ① ⑥ Micro SD Card Reader USB 2.0 ② ⑦ 12V DC in Terminal Block ③ ⑧ USB OTG OSD Control Panel ④ ⑨ CANBus 2 Watt Speaker ⑤ RS-232/422/485...
  • Page 15 GC-Series Panel PC User Manual R15FA3S-GCC3(HB) Unit: mm № № Description Description ① ⑥ Micro SD Card Reader USB 2.0 ② ⑦ 12V DC in Terminal Block ③ ⑧ USB OTG OSD Control Panel ④ ⑨ CANBus 2 Watt Speaker ⑤...

  • Page 17: Chapter 2: Getting Started

    GC-Series Panel PC User Manual Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.

  • Page 18: Turning On/ Off Your Device

    Chapter 2: Getting Started 2.1 Turning on/ off Your Device Follow the following steps to turn on your device: 1. Connect the Panel PC to a thermal block (2-pin). 2. Connect the other side of the thermal block to the AC adapter. 3.

  • Page 19: Connector Description

    GC-Series Panel PC User Manual 2.2 Connector Description This section explains how to connect external interfaces to the Panel PC. 2.2.1 Power Connector Panel PC has DC power source input is a 2 pin terminal block connector that accepts power input. 7”...

  • Page 20: Usb Otg Connector

    Chapter 2: Getting Started 2.2.5 USB OTG Connector Use USB OTG cable to install software on the Panel PC. Signal Signal Pin № Pin № Name Name USB_OTG_D- USB_OTG_D+ USB_OTG_ID 2.2.6 Micro SD Card Slot Insert microSD card to microSD card slot to extend the memory of your Panel PC. Signal Signal №...

  • Page 21: Chapter 3: Mounting

    GC-Series Panel PC User Manual Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.

  • Page 22: Cable Mounting Considerations

    Chapter 3: Mounting 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the panel PC. Refer to Chapter 2, section 2.1 for the cable installation instruction. Caution/ Attention Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection.

  • Page 23: Ram Mount

    GC-Series Panel PC User Manual 3.3.1 RAM Mount Notice that only 7” model support RAM Mounting to fit any vehicle application. *The picture is for demonstration purposes only. RAM Mounting accessories are not supplied by Winmate.

  • Page 24: Vesa Mount

    10.4”, 15” 100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate.

  • Page 25: Panel Mount

    GC-Series Panel PC User Manual 3.3.3 Panel Mount Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw, mm 7”...

  • Page 26: Chapter 4: Operating The Device

    Chapter 4: Operating the Device Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the G-WIN GC- Series Panel PC .

  • Page 27: Operating System

    GC-Series Panel PC User Manual 4.1 Operating System G-WIN GC-Series Panel PC supports Android 6.0. Important: The watchdog timer is set by default. The system will automatically reboot if it hangs after 30 seconds. If the app hangs, watchdog function will not be activated. 4.2 Multitouch The touchpad supports the core gestures for Android.

  • Page 28: Home Screen

    Chapter 4: Operating the Device 4.3 Home Screen Your device runs on Android 7.1 Operation System (Default). Navigation Buttons Back Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further. Home Returns to the Home screen.

  • Page 29: Quick Settings

    GC-Series Panel PC User Manual 4.4 Quick Settings You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > Device > Sound to change the volume.

  • Page 30: Configuring Ethernet

    Chapter 4: Operating the Device 3. Ethernet APP main menu appears 4.5.1 Configuring Ethernet Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router Static IP...

  • Page 31: Checking Ethernet Settings

    Ethernet settings menu appears on the top right side of the desktop. 4.6 Winmate® Home Manager (WHM) Winmate® G-WIN GC-Series Panel PC comes with preinstalled APP called Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 32 Chapter 4: Operating the Device Menu Description Home Manager Set which app you want to run up automatically after booting Set the WHM password (Default password is “0000”). Password Manager About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
  • Page 33 GC-Series Panel PC User Manual 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings.

  • Page 34: How To Unlock Applications

    Chapter 4: Operating the Device The system will automatically start the application which you selected and lock it. Any time user presses home key or back key; the system will go back to the same application which you have selected. 4.6.2 How to Unlock Applications Follow the instruction below to reset Home Manager.

  • Page 35: How To Change Password

    GC-Series Panel PC User Manual Default password is “0000”. Restart the system and you will go back to the normal Launcher. 4.6.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2.

  • Page 36: Configuring Serial Port Setting

    Chapter 4: Operating the Device 4.7 Configuring Serial Port Setting Serial port setting can be configured for RS-232, RS-422 or RS-485. Winmate provide serial port settings application for Android OS. To configure serial port settings: 1. Settings > Accessibility. 2. Accessibility > System: Comport-Setting.
  • Page 37 GC-Series Panel PC User Manual 3. Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. 4. Comport 1 > RS232/RS422/RS485...
  • Page 38 Chapter 4: Operating the Device * Configure Comport 1 settings...

  • Page 39: Chapter 5: Software Installation

    GC-Series Panel PC User Manual Chapter 5: Software Installation This chapter contains software installation and updates guide. All the programming guides can be found in the driver CD included in the package.

  • Page 40: Android Debug Bridge (Adb) Driver Installation

    Chapter 5: Software Installation 5.1 Android Debug Bridge (ADB) Driver Installation Important:  If your computer is running on Windows 10, Windows Embedded 8 Standard or Windows 8.1 Industry Pro OS system, you need to disable driver signature.  For Win XP / Win 7 skip disabling driver signature section, and directly proceed to ADB driver installation.
  • Page 41 GC-Series Panel PC User Manual 2. Click Change PC Settings. 3. Click General. 4. Under Advanced Startup, click Restart Now. Note: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery - > Recovery.’ 5.
  • Page 42 Chapter 5: Software Installation 6. Click Advanced Options.
  • Page 43 GC-Series Panel PC User Manual 7. Click Windows Startup Settings. 8. Click Restart. 9. After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard.
  • Page 44 Chapter 5: Software Installation Your computer will restart automatically. 10. After restarting, you will be able to install the ADB drivers normally; however, Windows will display a warning message. When the warning appears, click Install this driver software anyway. If you are unfamiliar with installing drivers, check out our Installing ADB driver tutorial for a step by step guide.

  • Page 45: Adb Driver Installation

    GC-Series Panel PC User Manual 5.1.2 ADB Driver Installation 1. Confirm whether the USB device was found by the system. Device Manager > Other devices > RK30 > Update Driver Software 2. In the Update Driver Software window choose Browse my computer for driver software. 3.
  • Page 46 Chapter 5: Software Installation 6. The system is looking for the driver folder. Click Browse. 7. Select the driver for your OS system. Click Open.
  • Page 47 GC-Series Panel PC User Manual 8. Windows Security window will pop up. This message is used to confirm whether the user wants to install the driver. Select Install this driver software anyway to continue. 9. When the installation is successfully completed you will see Android ADB Interface driver in the Update Driver Software window.

  • Page 48: Installing Android Debug Bridge (Adb)

    Chapter 5: Software Installation 5.2 Installing Android Debug Bridge (ADB) For detailed Android Debug Bridge (ADB) information refer to Android Developers Platform: http://developer.android.com/tools/help/adb.html 5.2.1 Installing Android Debug Bridge (ADB) 1. Decompress adb.zip. Open ADB terminal and move into the adb archive. ADB Terminal window 2.

  • Page 49: Using Android Debug Bridge (Adb)

    2>&1 | tee storage/sdcard1/logcat.log b. When the get action stops, press "Ctrl + C" to leave logcat. 5.3 Downloading Image Tool Download OS Image Tool update guide from Winmate Download Center. Winmate Download Center https://www.winmate.com/ > Support > Download Center 5.4 OTA Update Guide...
  • Page 50 Chapter 5: Software Installation System shows OTA firmware related information.
  • Page 51 GC-Series Panel PC User Manual 3. Click Auto-check Update. The system is checking OTA File. It may take some time. 4. Tap Update Image...
  • Page 52 Chapter 5: Software Installation 5. Make sure the file founded by the system is image update file. Tap OK. 6. Make sure the battery level is at least 50%. Tap OK.

  • Page 53: Os Image Update Guide

    7. Tap OK. Important: Do not disconnect the power source! Do not remove the battery! 8. After update the system will automatically restart. 5.5 OS Image Update Guide Download OS Image update guide from Winmate Download Center. Winmate Download Center: https://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=3018...

  • Page 54: Chapter 6: Technical Support

    Chapter 6: Technical Support Chapter 6: Technical Support This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

  • Page 55: About Technical Support

    6.1 About Technical Support To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Winmate provides the following Drivers for S-Series HMI:...

  • Page 56: Appendix

    Appendix Appendix Appendix A: Product Specifications Model Name W07FA3S- W10FA3S- R10FA3S- R12FA3S- R15FA3S- GCO1 GCH1(HB) GCT2(HB) GCM2(HB) GCC3(HB) Display 10.1” TFT 10.4” TFT 12.1” TFT 15” TFT Size/Type 7" TFT (Wide) (Wide) Resolution 1024 x 600 1024 x 600 1024 x 768 1024 x 768 1024 x 768 Brightness...
  • Page 57 GC-Series Panel PC User Manual Model Name W07FA3S- W10FA3S- R10FA3S- R12FA3S- R15FA3S- GCO1 GCH1(HB) GCT2(HB) GCM2(HB) GCC3(HB) Power Specifications Power Input 9-24V DC 12V DC 12V DC 12V DC 12V DC Mechanical Specifications Cooling Fanless Fanless Fanless Fanless Fanless Panel Mount, Panel Mount, Panel Mount, Panel Mount,...

  • Page 58: Appendix B: Cleaning The Monitor

    Appendix Appendix B: Cleaning the Monitor Before cleaning:  Make sure the device is turned off.  Disconnect the power cable from any AC outlet. When cleaning:  Never spray or pour any liquid directly on the screen or case. ...

  • Page 59: Appendix C: Winmate Software Development Kit

    ADB Driver To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center or Winmate File Share. Winmate Download Center Go to https://www.winmate.com/...
  • Page 60 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
