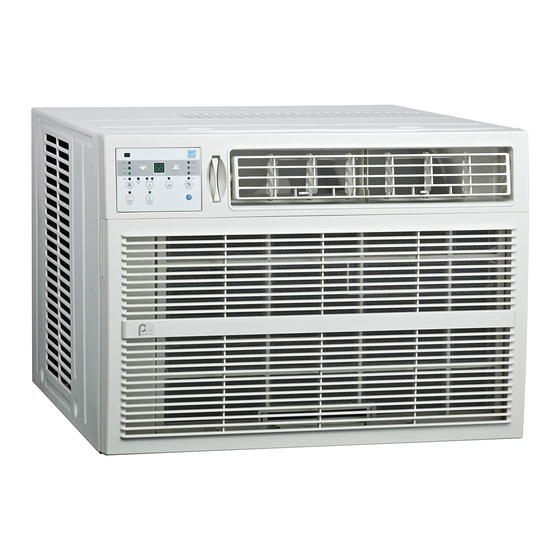

(8,000, 11,000 & 12,000 BTU)
WINDOW
AIR CONDITIONER
USER MANUAL
FOR MODELS:
2PACH8000
with 3,500 BTU electric heater
PACH12000
with 11,000 BTU electric heater
PAHP12002
with 16,000 BTU heat pump
Before using your window air
conditioner, please read this manual
carefully and keep it for future
reference, along with your receipt.
Your Source for Home Comfort
Advertisement
Table of Contents
Related Manuals for Perfect Aire 2PACH8000
Summary of Contents for Perfect Aire 2PACH8000
- Page 1 Your Source for Home Comfort (8,000, 11,000 & 12,000 BTU) WINDOW AIR CONDITIONER USER MANUAL FOR MODELS: 2PACH8000 with 3,500 BTU electric heater PACH12000 with 11,000 BTU electric heater PAHP12002 with 16,000 BTU heat pump Before using your window air...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..................2 IMPORTANT SAFETY INSTRUCTIONS .............. 4 NORMAL SOUNDS ....................5 AIR CONDITIONER FEATURES................6 INSTALLATION INSTRUCTIONS .................8 CARE AND CLEANING..................15 TROUBLESHOOTING TIPS ................16 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury. - Page 4 ! CAUTION When removing air filter, do not Ensure proper ventilation touch metal parts of the unit. especially in rooms with a stove or other appliances. Doing so may cause an injury. Water may enter the unit and Failure to do so may result in an degrade the insulation causing an oxygen shortage.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For Your Safety WARNING! NOTE The power supply cord with this air conditioner contains a current DO NOT store or use gasoline or other flammable vapors or liquids in detection device designed to reduce the vicinity of this or any other appliance. the risk of fire. -
Page 6: Normal Sounds
NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter during the cooling cycle. Vibration Unit may vibrate and make noise because of poor wall or window Sound of Rushing Air construction or incorrect installation. At the front of the unit , you may hear the sound of rushing air being moved by the fan. -
Page 7: Air Conditioner Features
AIR CONDITIONER FEATURES (CONTINUED) TO ADJUST THE FAN SPEED: TO SELECT THE OPERATING MODE: Press to select one of four fan speeds: “Auto,” To choose operating mode, press the Mode button. “Low,” “Med” or “High.” Each time the button is Each time you press the button, a mode is selected in pressed, the fan speed mode is shifted. - Page 8 AIR CONDITIONER FEATURES (CONTINUED) DISPLAYS Displays Error Codes: AS - Room temperature sensor error - Unplug the unit and plug it back in. If error repeats, call customer service. Shows the set temperature in “°C” or “°F” HS - Electric heating sensor error - Unplug the unit and and the Auto-timer settings.
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION To avoid risk of personal injury, property damage, or product damage due to the weight of this unit and sharp edges that may be exposed, please note the following: • Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install the unit. -
Page 10: Location Requirements
INSTALLATION INSTRUCTIONS Note: Installation parts are supplied for double-hung windows up to 36″ (91.4 cm) wide. A special Wide Window Kit is available from your dealer or service center. See “Accessories.” Do not use any screws other than those specified here. Do not use an extension cord. - Page 11 INSTALLATION INSTRUCTIONS FIG. 3 FIG. 4 FIG. 5 Note: Handle the air conditioner gently. • Be sure your air conditioner cabinet does not fall out of the opening during installation or removal. • The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a •...
- Page 12 INSTALLATION INSTRUCTIONS Attach foam adhesive seal: Attach foam adhesive seal along the bottom of the curtain bottom channel (FIG. 8). FIG. 8 FIG. 9 FIG. 10 Angle of cabinet bracket securely seated on edge of inner sill. Cabinet Window Bracket Inner Sill Window Outer Sill...
-
Page 13: Complete Installation
INSTALLATION INSTRUCTIONS Attach Side Curtains to Window Frame: 1. Extend the side curtains out against the window frame (FIG. 11/page. 13). FIG. 14A FIG. 14B 2. Drill holes and drive locking screws: A: For wooden windows: Use a 3/32″ drill bit to drill 4 starter holes through the holes in the side curtains into the window. - Page 14 INSTALLATION INSTRUCTIONS Through-the-Wall Cabinet Installation: FIG. 18 A B C Option 1- Wood, Metal or Plastic Molding When using a wood, metal or plastic molding, the wood frame should line up with the inside wall. Option 2- Plastered wall with no molding (FIG. 18): If the plastered wall is to be flush with the cabinet and no molding is used, the wood frame must be set 1/2″...
- Page 15 INSTALLATION INSTRUCTIONS Install Cabinet into Wood Frame: 1. Insert cabinet into the framed wall opening. The top of the cabinet should extend 3/4″ (19.1 mm) into the room. If there is trim, the cabinet should extend 3/4″ (19.1 mm) past trim (FIG. 22). 2.
-
Page 16: Care And Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be cleaned at least every two weeks or as necessary. -
Page 17: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. - Page 18 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in PRC...
