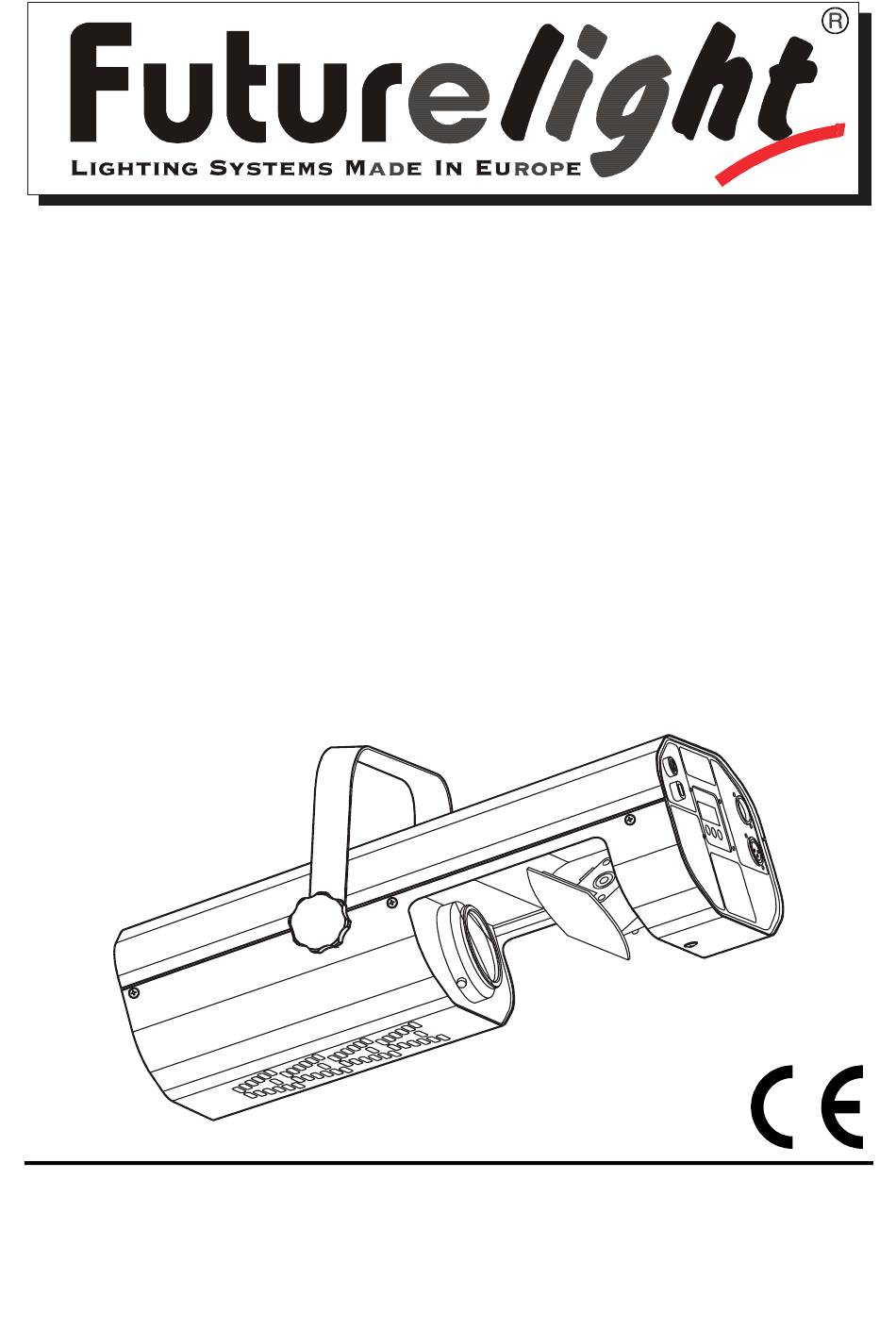

BEDIENUNGSANLEITUNG
USER MANUAL
MODE D'EMPLOI
MANUAL DEL USUARIO
$
$.,3307
© Copyright
Für weiteren Gebrauch aufbewahren!
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d'emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.
Advertisement
Table of Contents
Related Manuals for Future light SC-240 Scanner
Summary of Contents for Future light SC-240 Scanner
- Page 1 BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO $ $.,3307 © Copyright Für weiteren Gebrauch aufbewahren! Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos. Prohibida toda reproducción.
- Page 2 FUTURELIGHT MIRACLE HMI 575 W lighting effect 51832090 FUTURELIGHT MIRACLE HMI 1200 W lighting effect 51832092 FUTURELIGHT CC-150 color-changer 51832100 FUTURELIGHT CC-200 PRO color-changer 51832200 FUTURELIGHT SC-240 scanner 51832281 FUTURELIGHT SC-370 scanner 51832286 FUTURELIGHT AS-200 Advertising Scan black 51832290 FUTURELIGHT AS-200 Advertising Scan white 51832291...
-
Page 3: Table Of Contents
6&6FDQQHU 8VHUPDQXDO Table of contents 1. Safety ..........................4 1.1 Safety instructions .....................4 1.2 Operating determinations ..................5 2. Introduction ........................6 2.1 Features ........................6 2.2 Description of the fixture ....................7 3. Installation ........................8 3.1 Fitting/Exchanging the lamp ..................8 3.2 Beampath ........................9 3.3 Rigging the fixture......................9 3.4 Connection to the mains ....................9 3.5 DMX-512 connection / connection between fixtures ..........10 4. -
Page 4: Safety
CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety 1.1 Safety instructions Every person involved with the installation, operation and maintenance of this device has to: - be qualilfied - follow the instructions of this manual Caution ! Be careful with your operations. -
Page 5: Operating Determinations
CAUTION! EYEDAMAGES! Avoid looking directly into the light source. (meant especially for epileptics)! 1.2 Operating determinations This device is a mirror-moved lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only. If the device has been exposed to drastic temperature fluctuation (e.g. -
Page 6: Introduction
2. Introduction Thank you for having chosen a FUTURELIGHT SC-240. You acquired a versatile, powerful and intelligent lighting-effect. Unpack your FUTURELIGHT SC-240 and make sure that there are no damages caused by transportation. Should there be any, please consult your local dealer and do not take the device into operation. 2.1 Features Small, compact scanner For HIT 150 W lamp with high luminosity and long life at a very low price •... -
Page 7: Description Of The Fixture
2.2 Description of the fixture 1 - Fastening screws 2 - Fixation screw for bracket 3 - Bracket 4 - Objective 5 - Mirror Rearpanel: 6 - DMX Output 7 - DMX Input 8 - Powercord 9 - Fuseholder 10 - Control board Control Board: 11 - Enter/release-button 12 - Up-button... -
Page 8: Installation
3. Installation 3.1 Fitting/Exchanging the lamp DANGER! Install the lamp with the device switched off only. Unplug from mains before! Screws X and Y To insert the lamp HIT 230 V/150 W open the small cover at the rearpanel (see the drawing) by loosening the 2 Phillips screws X and Y on the cover. -
Page 9: Beampath
The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp and focus the light on a flat surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "A, B, C”. Turn one screw at a time to drag the hot-spot diagonally across the projected image. -
Page 10: Dmx-512 Connection / Connection Between Fixtures
3.5 DMX-512 connection / connection between fixtures The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly. Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. -
Page 11: Dmx-Protocol
4. DMX-Protocol 4.1 Function of the control channels - 16 bit protocol 4.1.1 Channel 1 - Horizontal mirror movement (Pan) Push slider up in order to move the mirror horizontally (PAN). Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center). -
Page 12: Addressing
4.1.4 Channel 4 - Shutter, Strobe, Gobos 0 - 5 Shutter closed 6 - 63 Full open position 64 - 127 Strobe-effect from slow to fast (max. 8 flashes/second) 128 - 132 Closed 133 - 135 Reset of the fixture 136 - 143 Full open position 144 - 151... -
Page 13: Main Functions
6.1 Main functions - DMX 512 Address settings The "001" flashes. Use the [ ] and [ ] keys to select required address (001 - 509) and press [ ] to confirm and return to the main menu. - Pan reverse This function allows you to invert the Pan-movement. -
Page 14: Maintenance And Cleaning
- 4 control-channels: Channel 1: Horizontal mirror-movement (Pan) Channel 2: Vertical mirror-movement (Tilt) Channel 3: Colour-wheel Channel 4: Shutter, Strobe, Gobos Housing - Easy access to lamp and main components thanks to large opening cover and the projector‘s modular construction. Temperatures Maximum ambient temperature t : 55°...
