Basic Instructions to be used with StageTek
For Replacement Parts and more detailed product information,
CAUTION
!
Make sure anyone assembling or
installing the StageTek component has
read and understands the instructions.

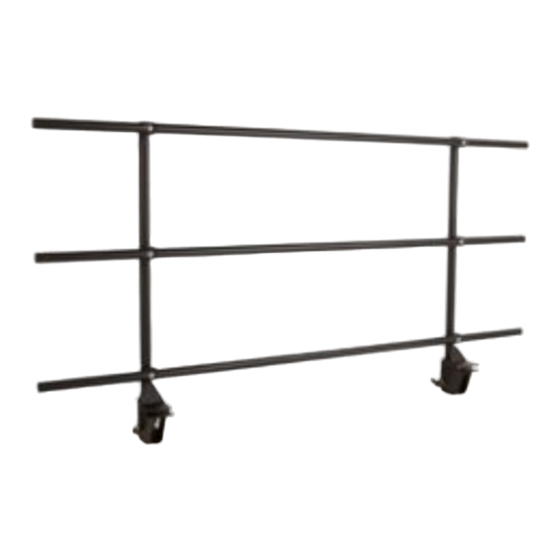

Assembly Without Optional Infill Panels
To assemble the guardrail without the optional infill panels:
Attach rails to the top, middle and bottom positions of both upright weldments using 3/8-16 x 3" carriage bolts,
guardrail tube saddles, 1/2" ID toothed lock washers and 3/8-16 hex cap nuts as shown.
Top
Rail
Middle
Rail
Bottom
Rail
Visit the StageTek web page at wengercorp.com for detailed instructions and videos.
Note: Please read and understand these instructions before starting the assembly or installation.
Note: If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2022
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
Assembly and Operating Instructions
StageTek
refer to the StageTek Owner's Manual 280A099.
!
Always comply with Warnings
or Cautions in the instructions
or posted on the equipment.
3/8-16 x 3"
Carriage Bolt
Printed in China 2022-10
Guardrail Accessory
®
Guardrails only!
®
CAUTION
Tube saddle
orientation
CAUTION
!
Guardrails are recommended
for instances where the deck
height is 12" (305 mm) or more.
Upright
Weldment
3/8-16
Hex Cap Nut
1/2" ID
Toothed
Lock Washer
Guardrail
Tube Saddle
End caps may
need to be
installed in
rail ends
Part #281D442-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger StageTek Guardrail Acceossory
Summary of Contents for Wenger StageTek Guardrail Acceossory
- Page 1 Visit the StageTek web page at wengercorp.com for detailed instructions and videos. Note: Please read and understand these instructions before starting the assembly or installation. Note: If you need additional information, contact Wenger Corporation using the information below. ©Wenger Corporation 2022...
- Page 2 Assembly With Optional Infill Panels To assemble the guardrail with the optional infill panels: 1. Attach a rail to both the top and bottom positions of both upright weldments using 3/8-16 x 3” carriage bolts, guardrail tube saddles, 1/2” ID toothed lock washers and 3/8-16 hex cap nuts as described on the previous page.
- Page 3 Assembly With Optional Infill Panels (continued) 5. Attach the middle rail to both upright weldments using a 3/8-16 x 3” carriage bolt through the guardrail tube saddle, 1/2” ID toothed lock washer and 3/8-16 hex cap nut on each end as previously described.
- Page 4 Operation To attach the guardrail to the stage deck: 1. Be sure that the lower slide at the base of both upright weldments are in the open position. To move the lower slide to the open position: a. Loosen the knob. b.
