Controller Specification
Temperature Range:
 -25°C to 75°C (-13°F to 167°F)
Environmental Protection:
 IP66 and NEMA 4 Controller
Connector Type:
 5-pin keyed (see manual for pinout)
Response Time:
 Approximately 50 ms
Certifications:
 CE
Weight:
 8 button – 7 oz
 12 button – 10.5 oz
Dimensions:
 8 button – (LxWxH) 7.2" x 3.0 "x 1.3" (183 x 76
x 33 mm)
 12 button – (LxWxH) 9.0" x 3.0" x 1.3" (227 x 76
x 33 mm)
Button Travel:
 3/8 inch
P.O. Box 13615
Milwaukee, WI 53213
Toll‐Free Phone 800.288.8178
Toll‐Free Fax 800.298.3503
N49 W13650 Campbell Drive Enrange Facility
Menomonee Falls, WI 53051 #5 Four Coins Drive
Phone 262.783.3500 Canonsburg, PA 15317
Fax 262.783.3510 Phone 262.783.3500
Fax 262.783.3510

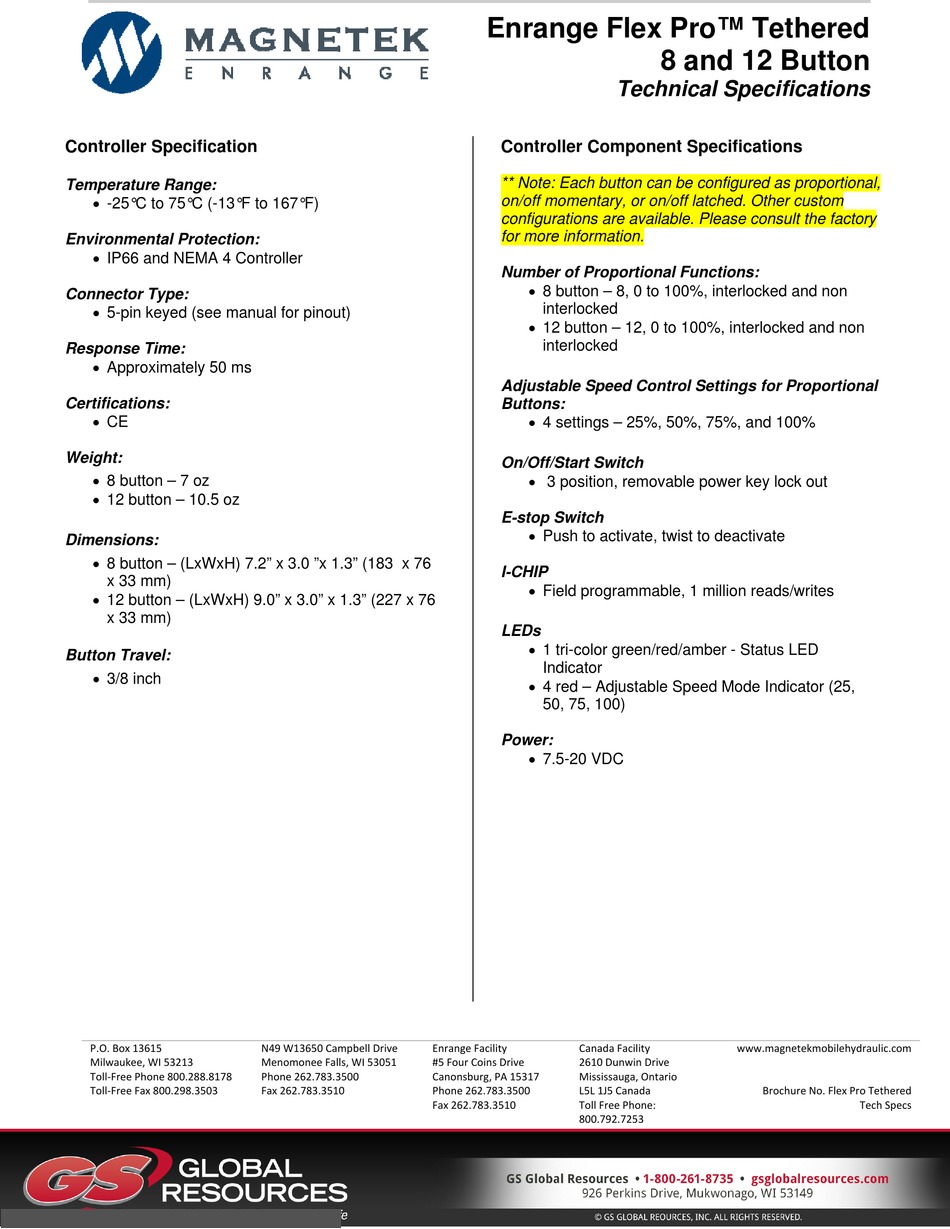

Enrange Flex Pro™ Tethered
8 and 12 Button
Technical Specifications
Controller Component Specifications
** Note: Each button can be configured as proportional,
on/off momentary, or on/off latched. Other custom
configurations are available. Please consult the factory
for more information.
Number of Proportional Functions:
 8 button – 8, 0 to 100%, interlocked and non
interlocked
 12 button – 12, 0 to 100%, interlocked and non
interlocked
Adjustable Speed Control Settings for Proportional
Buttons:
 4 settings – 25%, 50%, 75%, and 100%
On/Off/Start Switch
 3 position, removable power key lock out
E-stop Switch
 Push to activate, twist to deactivate
I-CHIP
 Field programmable, 1 million reads/writes
LEDs
 1 tri-color green/red/amber - Status LED
Indicator
 4 red – Adjustable Speed Mode Indicator (25,
50, 75, 100)
Power:
 7.5-20 VDC
