3. General Controller Information
A. External Illustration (Pro 12 Configuration)

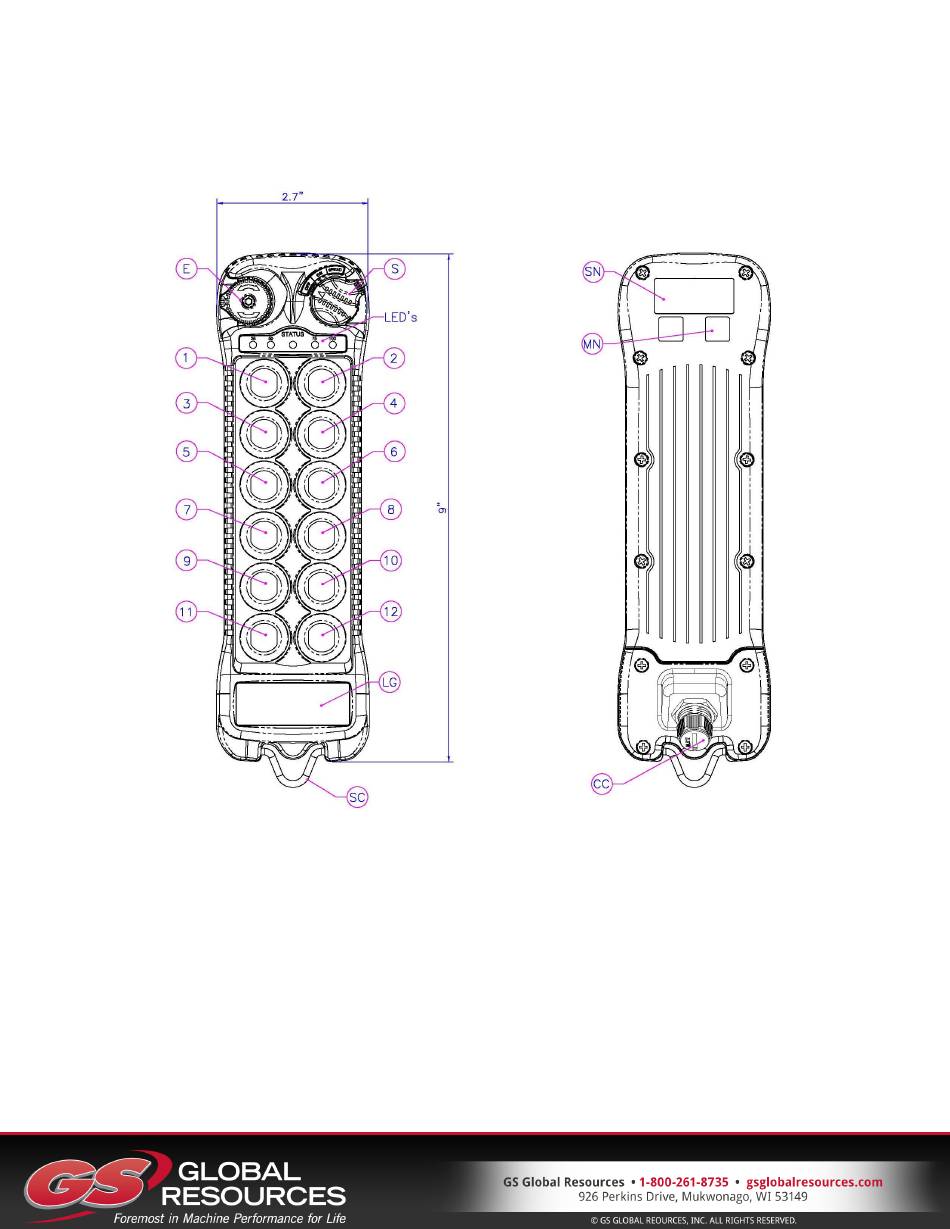

(Fig. 01)
E. Emergency Stop Button
S. Removable Power Key Switch 7.
1. Push Button #1
2. Push Button #2
3. Push Button #3
4. Push Button #4
5. Push Button #5
NOTE: Push Buttons #9-#12 are not present on the Flex Pro 8 Module
6.
Push Button #6
Push Button #7
8.
Push Button #8
9.
Push Button #9
10.
Push Button #10
11.
Push Button #11
12.
Push Button #12
(Fig. 02)
SC.
Strap Ring
SN.
System Information
CC.
CAN Connector
MN.
Crane Number
Flex Pro Tethered Controller
Instruction Manual
July 2011
8 of 17
