A.
Installation of Tethered Controller Cable
The tethered controller cable is attached to the CAN connector on the controller by lining up the
alignment groove and inserting the plug into the CAN connector receptacle. Twist the locking ring
on the CAN plug clockwise to tighten it down and prevent accidental disengagement.
B.

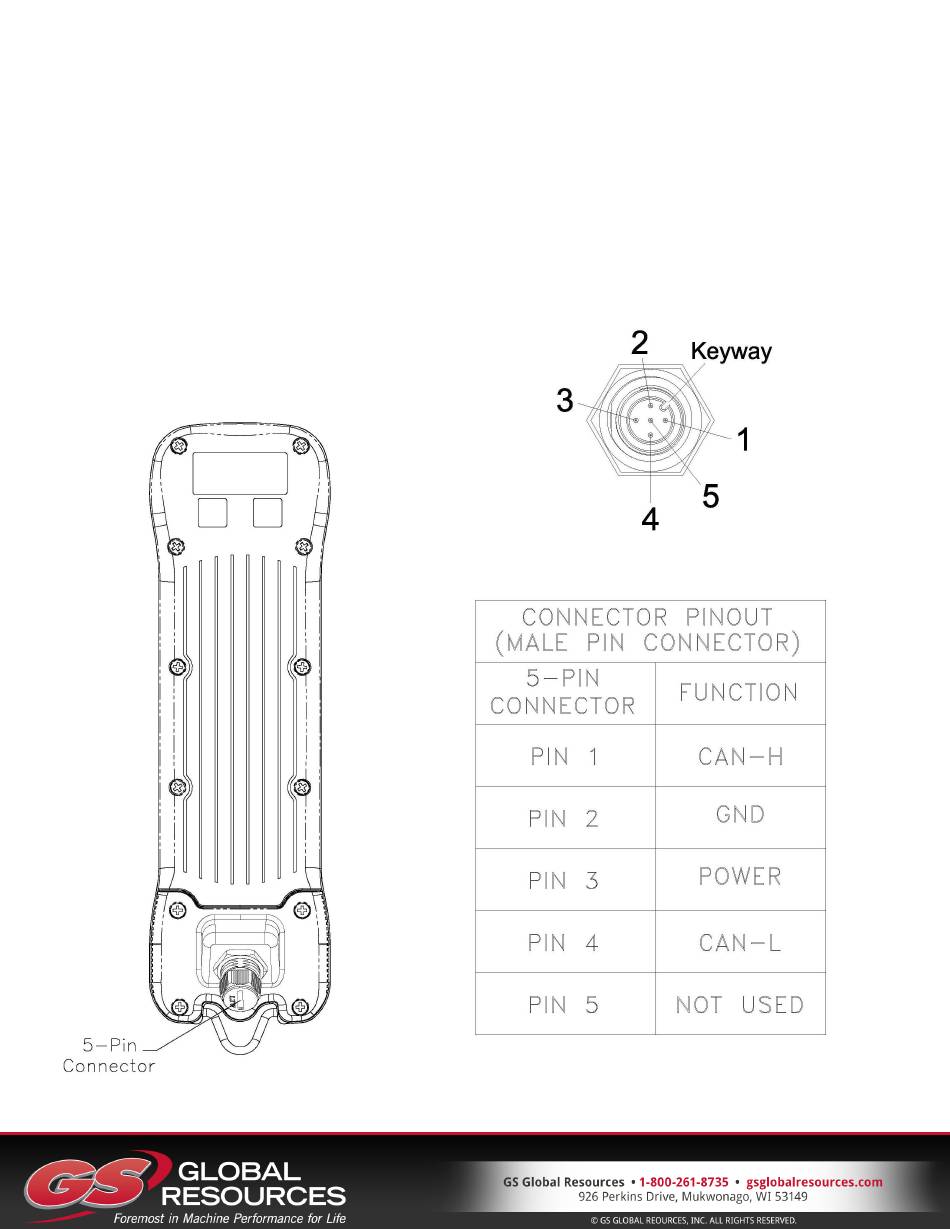

CAN Connector Pinout
5. Setup
Flex Pro Tethered Controller
Instruction Manual
July 2011
12 of 17
