Description (Continued)
Easy Interface. Switches are alternate action ON/OFF
(depending on programming selection) using a tactile feel,
raised rubber button. High efficiency LEDs provide clear
status annunciation readily visible through the glass door.
Selectable Functions. Switch functions, LED status
indications, and printer output is selected when the
control panel CPU is customized for site specific
requirements. Slide-in labels are locally printed to
indicate the exact function of the LEDs and switches.

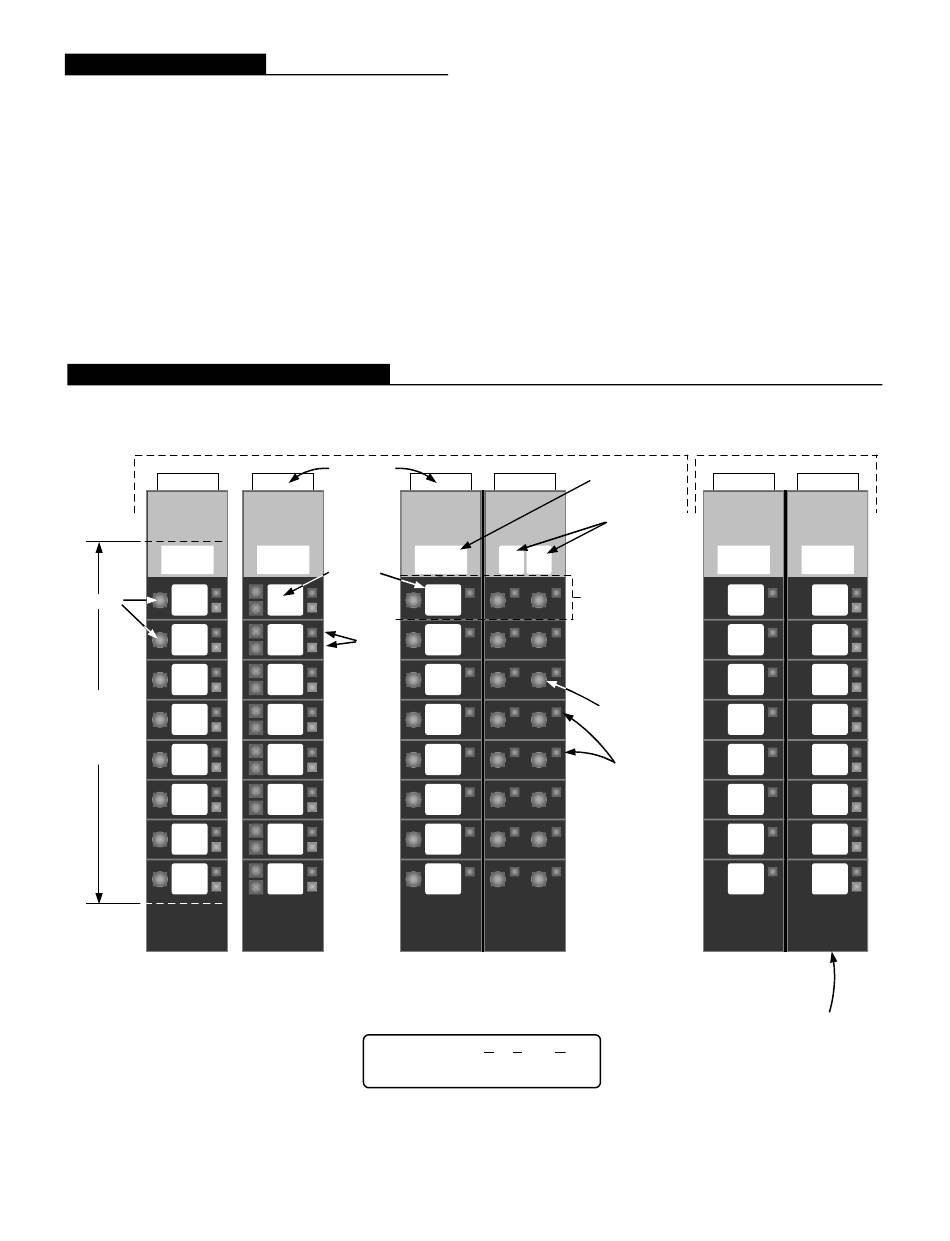

LED/Switch Module Detail Reference
Switches
Visible area
8-1/4" H,
2" W
(210 mm
x 51 mm)
8 Switches
with 16 LEDs:
4100-1282, R/Y 4100-1300, R/Y
4100-1283, Y/Y (pluggable LEDs)
4100-1284, R/G
4100-1296, G/Y
LED/Switch Modules
Label insert
Custom
label area
LEDs
Garage
Basement
16 Switches 8 Switches
with 16 LEDs: with 8 LEDs:
4100-1280, R
4100-1281, Y
LED Color Legend: Red, Yellow, Green;
R/Y = Red on top, Yellow on bottom;
R-Y = Red on left, Yellow on right
The 24 Point I/O Module is selectable for input switch
type and supervision type. Outputs are selectable for
steady on or pulsing to drive remotely connected relays,
incandescent lamps, or LEDs.
Primary
function label
Fan Fan
Control
On Off
Designates area
East
for each column of
Wing
switches and LEDs
West
Wing
South
Wing
Switch
North
Wing
Annex
Boiler
Room
16 Switches
with 16 LEDs:
4100-1278, R-Y
4100-1285, R
2
LED Modules
Additional
function labels
LEDs
8 LEDs:
4100-1276, R
(pluggable LEDs)
4100-1277, R/Y
(pluggable LEDs)
