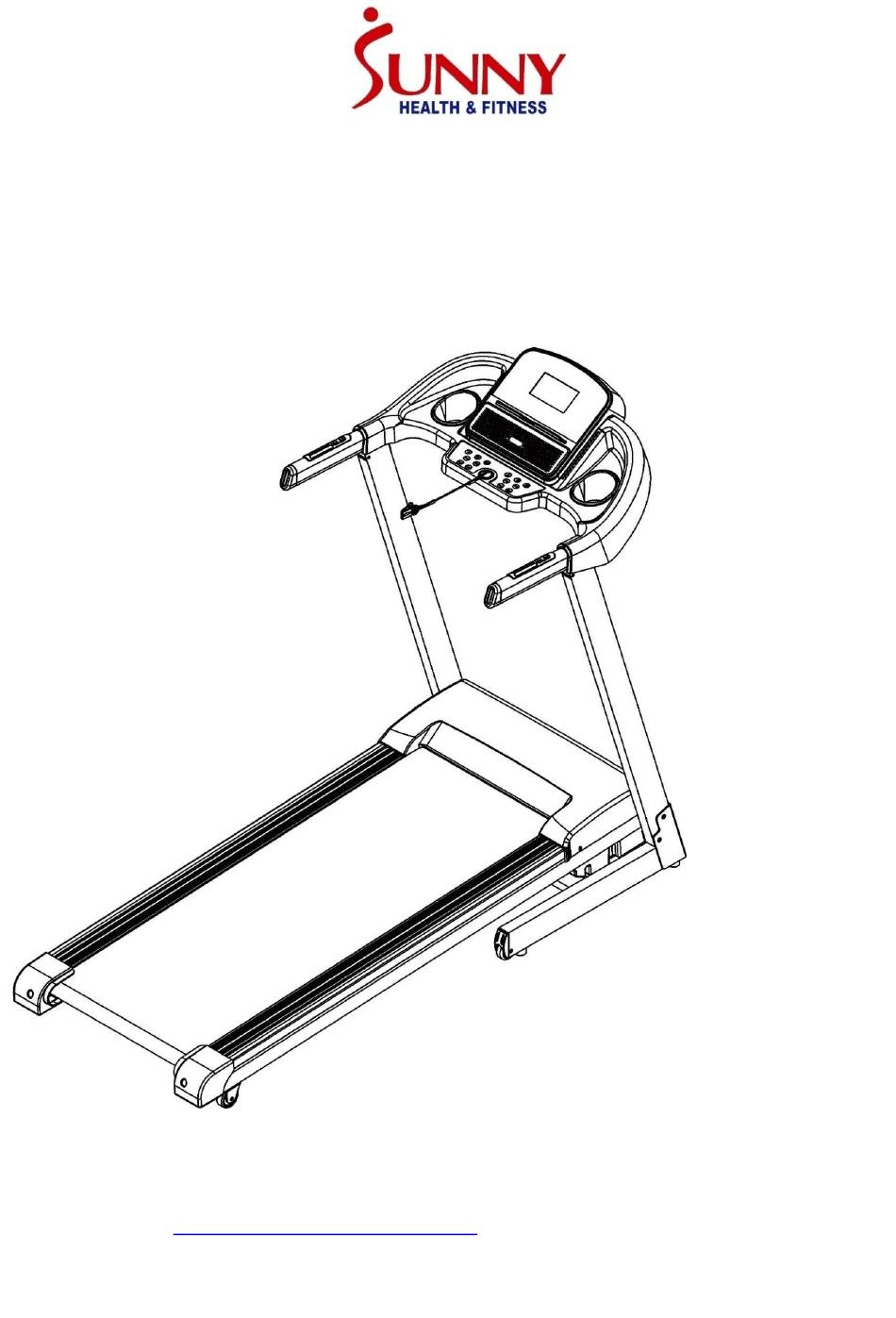

- Page 1 ELECTRIC TREADMILL WITH INCLINE SF-T7861 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
- Page 2 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
- Page 3 EXPLODED DIAGRAM ASSEMBLY CONTENTS When you open the carton, and you will find the below parts in the carton.
- Page 4 PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Computer Seal Cover Base Frame Interval Sleeve Hand Pulse with Speed Upright Frame +/- key Hand Pulse with Incline Motor Bracket +/- key Computer Bracket Control Circuit Board Motor Bottom Cover Computer Bottom Wire Cushion Computer Upper Wire...
- Page 5 Description Spec. Qty. Description Spec. Qty. Safety Key Cushion Oil Bottle Screw ST4.2*13 Incline Bracket Bolt M10*42 Φ Spring Washer Bolt M10*45 Bolt HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
-
Page 6: Main Frame (
ASSEMBLY INSTRUCTIONS STEP 1: Open the carton and remove all contents. Place the Main Frame (No. 1) on level ground and ensure that you have a clean, adequate work space. Do not cut the Packing Belt (No. B) until the assembly is complete! STEP 2: Attach Computer Bracket (No. -
Page 7: Base Frame (
STEP 4: Attach Upright Frames (No. 3) onto Base Frame (No. 2) with 2 Bolts (No. 70), 2 Bolts (No. 51), and 4 Lock Washers (No. 64). Tighten secure with Allen Wrench (No. 12). Notice: Support the Upright Frames (No. 3) with both hands to avoid falling down and causing injury. -
Page 8: Cylinder 1
FOLDING INSTRUCTIONS NOTE: Please make sure the incline is at ZERO when folding and unfolding. To fold the treadmill, place your hands at position A and lift the running board all the way up until you hear the safety lock ‘Click’ from the safety cylinder. -
Page 9: Wheel
HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “K”... - Page 10 IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user.
- Page 11 CONSOLE GUIDE WINDOW DISPLAY 1. SPEED: The speed range is 0.5-7.5 MPH. The initial default speed is 0.5 MPH. 2. CALORIES: Displays total calories burned. 3. TIME: Displays the elapsed running time. 4. DISTANCE: Display the total distance traveled. 5. PULSE/INCLINE: Displays your pulse data when hands are placed on the sensors. When pulse is not used, the treadmill will display the number of incline segments.
-
Page 12: Running Belt 1
“MODE” BUTTON: When the treadmill is in the standby state, press MODE to choose from the following: manual mode, time count down mode, distance count down mode, and calories count down mode. SPEED +/- KEYS: During use, press these +/- keys to increase or decrease your speed. The speed will adjust 0.1 MPH at a time. - Page 13 HEARTBEAT TEST When holding the hand pulse with two hands, the pulse window will show your heartbeat after 5 seconds. To get an accurate heartbeat, please test when the treadmill is stopped, and you are holding the hand pulse for more than 30 seconds. The heartbeat data is just for reference, it cannot be used as medical data.
- Page 14 USB CHARGING FUNCTION After the power is turned on, the device can be recharged by connecting to a mobile phone or iPad that needs to be recharged. Interface output voltage for dc5v. Note: due to the phone or iPad specifications, charging requirements are inconsistent, so it cannot support all devices.
-
Page 15: Switch
EXERCISE INSTRUCTIONS GETTING STARTED Before starting any exercise programs, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. - Page 16 MAINTENANCE GUIDE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis, cleaning the two exposed sides of the running belt will prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from the shoes does not wear out the running belt.
- Page 17 LUBRICATING THE TREADMILL Lubricating the running belt & running board is essential as the friction affects the life span and operations on the treadmill. Inspect the running belt regularly. If you find any wear on the running board, please contact us at support@sunnyhealthfitness.com. WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or repairing the unit.
- Page 18 TROUBLESHOOTING CODE Description How to troubleshoot 1. Message wire is broken or not 1. Check if the computer and bottom control connected well. board wire is connected well. 2. Check if IC on bottom control board is loose, 2. Computer or control board is reset the IC.
