Sunny Health & Fitness SF-T7860 User Manual

Electric treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

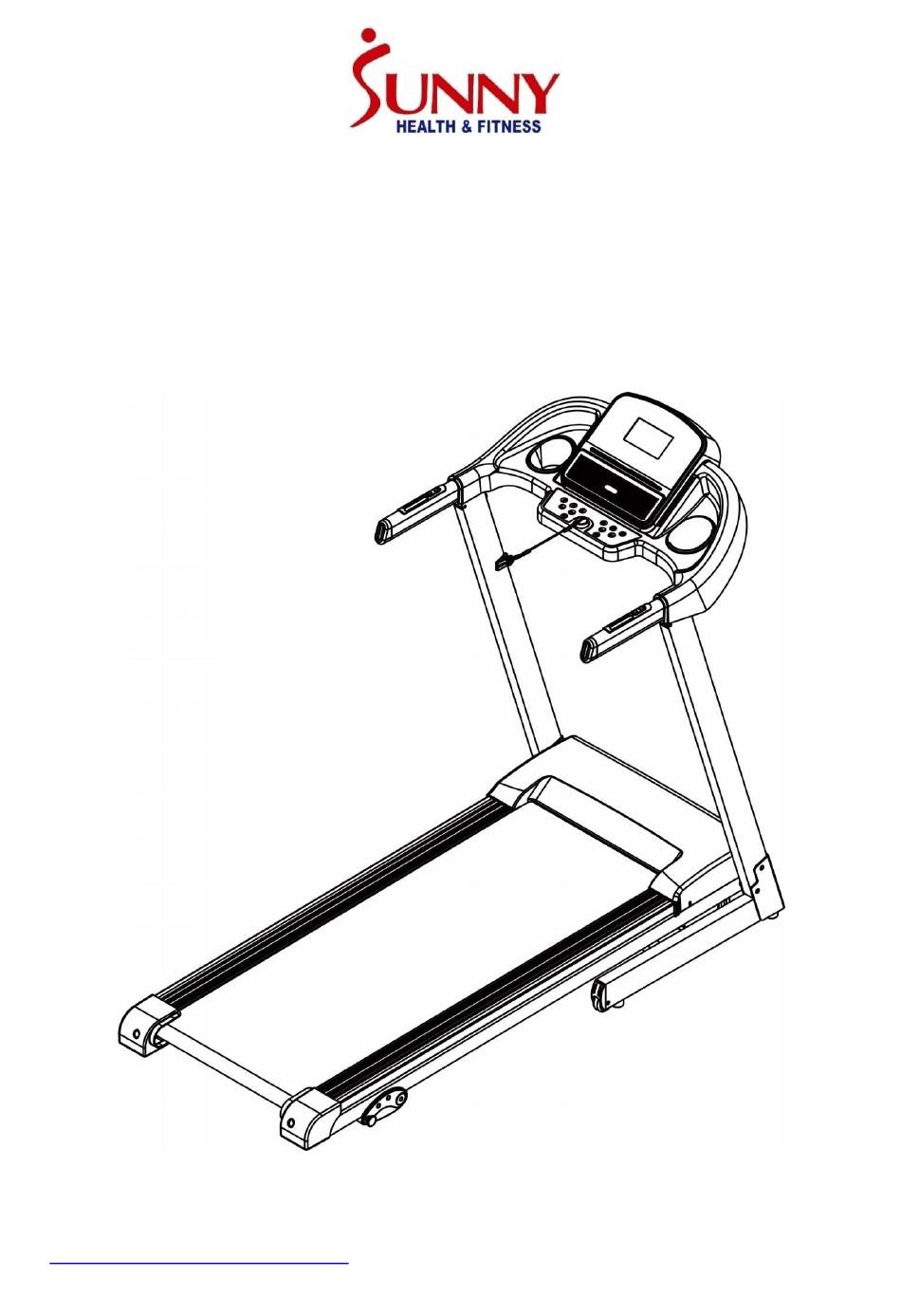

ELECTRIC TREADMILL
SF-T7860
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US:
support@sunnyhealthfitness.com
or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-T7860 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-T7860

Summary of Contents for Sunny Health & Fitness SF-T7860

  • Page 1 ELECTRIC TREADMILL SF-T7860 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM ASSEMBLY CONTENTS When you open the carton, and you will find the below parts in the carton.

  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Hand Pulse with Main Frame Speed +/- key Hand Pulse with Start Base Frame / Stop Key Upright Frame Control Circuit Board Computer Bottom Motor Bracket Wire Computer Upper Computer Bracket Wire Screw ST4.2*25 Rubber Pad 2...

  • Page 5: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1: Open the carton and remove all contents. Place the Main Frame (No. 1) on level ground and ensure that you have a clean, adequate work space. Do not cut the Packing Belt (No. B) until the assembly is complete! STEP 2: Attach Computer Bracket (No.
  • Page 7 STEP 4: Attach Upright Frames (No. 3) onto Base Frame (No. 2) with 2 Bolts (No. 53), 2 Bolts (No. 51) and 4 Lock Washers (No. 64). Tighten and secure with Allen Wrench (No. 12). Notice: Support the Upright Frames (No.

  • Page 8: Folding Instructions

    FOLDING INSTRUCTIONS To fold the treadmill, place your hands at position A and lift the running board all the way up until you hear the safety lock ‘Click’ from the safety cylinder. Pulling down: To unfold the treadmill, simply give the safety cylinder a light kick at position B and pull down the running board at position A at the same time.

  • Page 9: How To Move The Treadmill

    HOW TO MOVE THE TREADMILL Before attempting move treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “K”...
  • Page 10 HOW TO ADJUST THE INCLINE The treadmill slope is manual mode, the highest gradient is a 3-degree high slope mode, the second gradient is a 1-degree high slope mode, and the lowest gradient is flat land mode. You could adjust the slope by inserting 2 Fix Pins (No.

  • Page 11: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 110 Volts to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user.

  • Page 12: Console Guide

    CONSOLE GUIDE WINDOW DISPLAY 1. SPEED: The speed range is 0.5-7.5 MPH. The initial default speed is 0.5 MPH. 2. CALORIES: Displays total calories burned. 3. TIME: Displays the elapsed running time. 4. DISTANCE: Display the total distance traveled. 5. PULSE: Displays your pulse data when hands are placed on the sensors. BUTTON FUNCTION “START”...
  • Page 13 “MODE” BUTTON: When the treadmill is in the standby mode, press MODE to choose from the following: manual mode, time count down mode, distance count down mode, and calories count down mode. SPEED +/- KEYS: During use, press these +/- keys to increase or decrease your speed. The speed will adjust 0.1 MPH at a time.
  • Page 14 RUNNING DATA DISPLAY AND SETTING RANGE INITIAL INITIAL SET RANGE SHOW RANGE DATE SETTING DATE 30:00 0:00－99:59 PROGRAM TIME 0:00 5:00-99:00 SPEED(M/H) 0.5-7.5 DISTANCE(MILE) 0.5-99.9 0.00－99.9 PULSE 50-200 50.0 CALORIES(CAL) 10.0-999 0－999 15:00 MODE TIME 0:00 5:00-99:00 0:00-99:59 DATE TABLE: TIME Setting time/20= interval running time 10 11...
  • Page 15 1. DATA DISPLAY AND SET RANGE Parameter Type Default Setting Range Mark SEX (-1-) 1 (MALE) 1—2 1=MALE 2=FEMALE AGE (-2-) 10—99 HEIGHT (-3-) 68 in 40—78 in WEIGHT (-4-) 154 LBS 44—330 LBS 2. BMI REFERENCE FAT ≤19 Under weight 19<FAT ≤25 Normal weight 25<FAT ≤29...

  • Page 16: Exercise Instructions

    EXERCISE INSTRUCTIONS GETTING STARTED Before starting any exercise programs, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.

  • Page 17: Adjusting The Running Belt

    MAINTENANCE GUIDE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis, cleaning the two exposed sides of the running belt will prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from the shoes does not wear out the running belt.

  • Page 18: Lubricating The Treadmill

    LUBRICATING THE TREADMILL Lubricating the running belt & running board is essential as the friction affects the life span and operations on the treadmill. Inspect the running belt regularly. If you find any wear on the running board, please contact us at support@sunnyhealthfitness.com. WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or repairing the unit.

  • Page 19: Troubleshooting

    TROUBLESHOOTING CODE Description How to troubleshoot 1. Message wire is broken or 1. Check if the computer and bottom not connected well. control board wire is connected well. 2. Check if IC on bottom control board is loose, reset the IC. 2.
