SMART SLIM UNDER DESK WALKING
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
TREADPAD
SF-T7945SMART
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-T7945SMART
Summary of Contents for Sunny Health & Fitness SF-T7945SMART

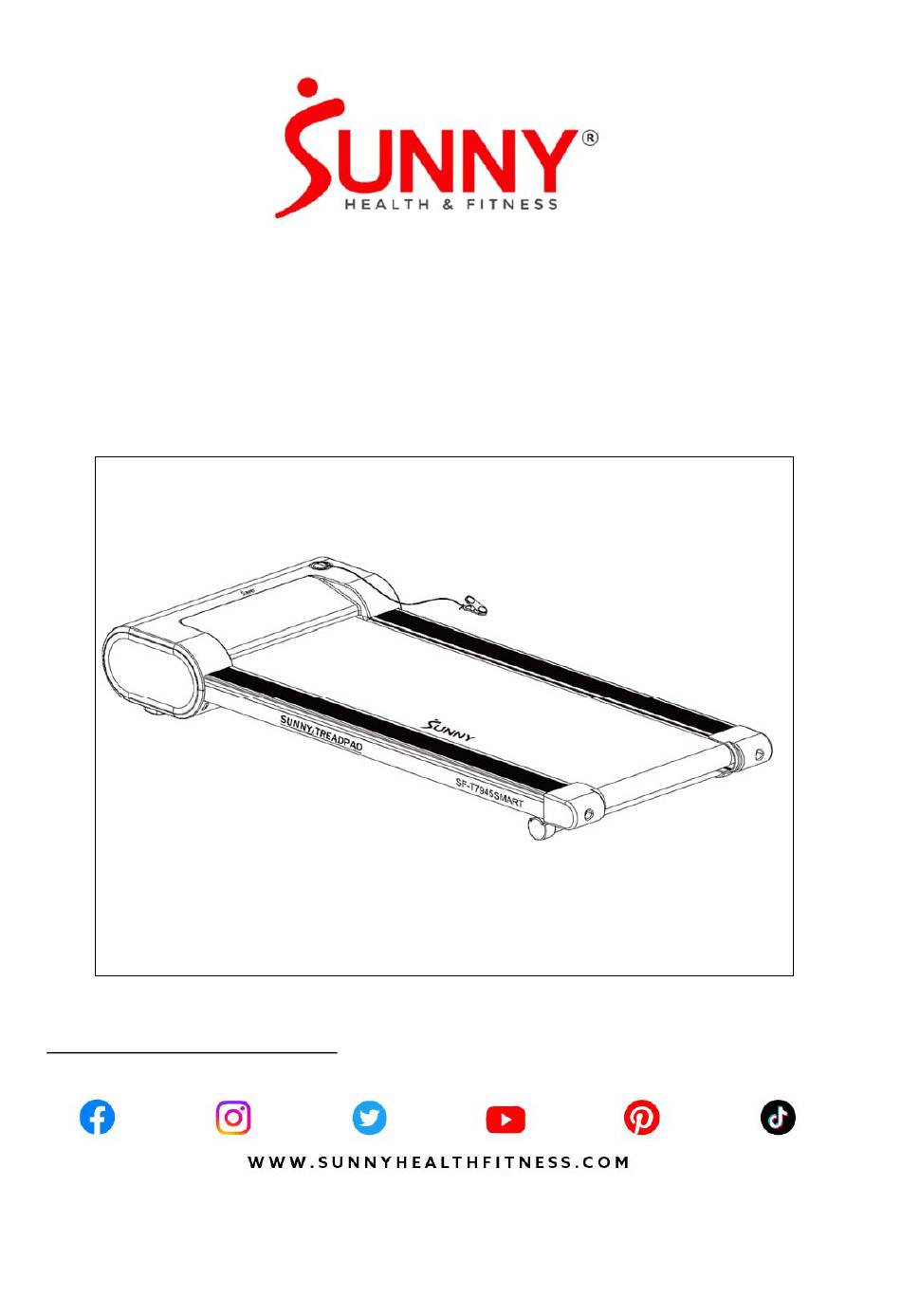

- Page 1 SMART SLIM UNDER DESK WALKING TREADPAD SF-T7945SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. - Page 3 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 5: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the remote control. The speed will increase gradually. 4. -
Page 6: Carton Contents
CARTON CONTENTS Description Specification Qty. Walking Treadmill Remote Control Power Cord Safety Key Allen Wrench Lubricant 20ml/bottle User Manual Screwdriver Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ... -
Page 7: Battery Safety Warning
BATTERY SAFETY WARNING NOTES: 1) Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. 2) Even used batteries may cause severe injury or death. 3) Call a local poison control center for treatment information. - Page 8 USER INSTRUCTIONS STEP 1: STEP 2: STEP 3: NOTE: Attach the clip end of the Safety Key (No. E08) to your clothes before you start your workout.
-
Page 9: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 10: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. Clean the Running Belt (No. C07) and Running Board (No. E12) before lubricating. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. E12) and Running Belt (No. C07) is essential as the friction between the two affects the life span and function of the treadmill. -
Page 11: How To Move The Treadmill
HOW TO MOVE THE TREADMILL... -
Page 12: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 8 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 13: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Use a Screwdriver (No. H) to loosen and remove the screw from the battery cover. 2. Take out the 1pc CR2032 battery that is included inside the remote control box. 3. Install the battery into the battery holder with the positive end facing up. 4. -
Page 14: The Display Console
THE DISPLAY CONSOLE WINDOW DISPLAY: Displays time, distance, calories, steps and speed value in turn every 5 seconds. REMOTE CONTROL FUNCTIONS: Please remove the plastic tab from the remote control before use！ Note: If the treadmill does not respond to the remote control, you will need to resync the treadmill and remote control. - Page 15 1. START/PAUSE BUTTON: Press the START button, so that treadmill begins running. 0.5 MPH (Miles per hour) is the default start speed. During exercise, you also can press this button to pause the machine. 2. SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in increments of 0.1 MPH (Miles per hour).
-
Page 16: Exercise Instructions
POWER SAVE FUNCTION: When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While the treadmill is in this mode, the window display of the console will be turned off. To turn it back on, press any button on the remote control. -
Page 17: App Connection
APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key not inserted. Insert Safety Key. Running belt tension not Tighten the adjustment bolts on Running belt not centered correct on the left or right the left and right side of the rear sides of the running board. - Page 19 Check motor wires to see if the motor is connected. If the wire The motor wire is not 0006 ERROR: Motor has been punctured or damaged, connected, or the motor is abnormality you will need to replace it. If the damaged.
-
Page 20: Exploded Diagram
EXPLODED DIAGRAM... -
Page 21: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Screw ST2.9*6 Running Board Spring Washer Strengthen Tube Front Roller Flat Washer Rear Roller Washer Allen Wrench Washer Pan Head Tapping ST4.2*12 Safety Key Plate Screw Head with washer Motor Top Cover Screw ST4.2*12 Motor Bottom Cover...
