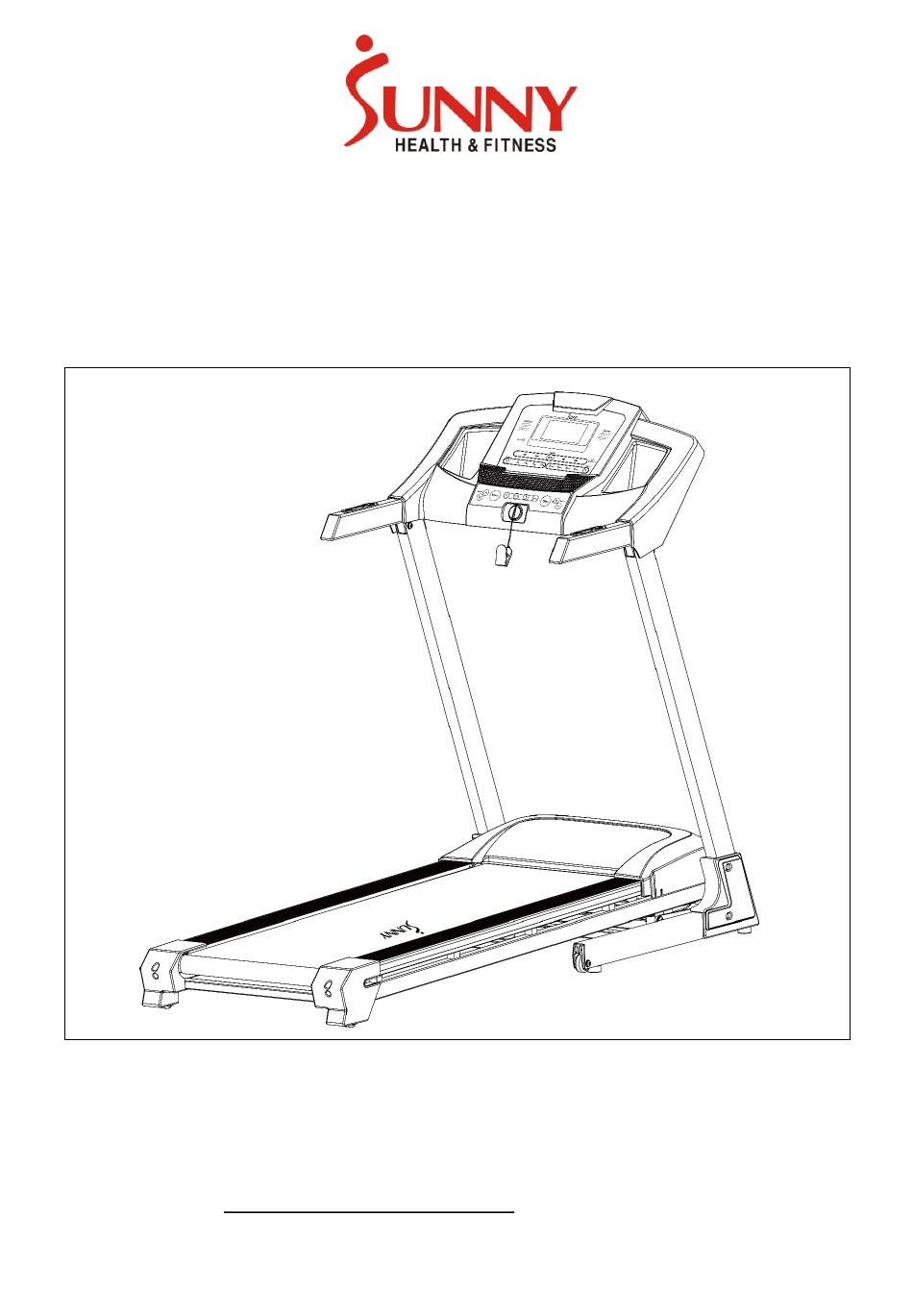

SMART TREADMILL WITH AUTO INCLINE
SF-T7515
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-T7515 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness SF-T7515

  • Page 1 SMART TREADMILL WITH AUTO INCLINE SF-T7515 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 4 ASSEMBLY CONTENTS WHEN YOU OPEN THE CARTON, YOU WILL FIND THE FOLLOWING PARTS: Half-roundhead Half-roundhead...
  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Safety Key Single Black Wire 250mm MP3 Wire Upper Computer Wire 800mm Key Panel Sticker Middle Computer Wire 1000mm Lower Metal Dome Array Lower Computer Wire 500mm Overlay Safety Key Sensor Cross Recessed Pan Upper Metal Dome Array ST4.2*45 Head Tapping Screw...
  • Page 6: Hardware Package

    Description Spec. Qty. Description Spec. Qty. Half-roundhead Hex M8*45 thread Left Side Cover 225*183*52 Bolt Φ31.5*Φ6*16 Flat Foot Pad Motor Bottom Cover 570*340*48 Base Frame Screw ST4.2*16 Φ20*Φ16*17.5 Φ45*Φ8.2*20 Round Cushion Moving Wheel Main Frame Incline Bracket Half-roundhead Hex M10*25 thread Φ45*Φ8.2*20 Transportation Wheel Bolt...
  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Open the carton and remove all contents. Place the Main Frame (No. 71) on level ground and ensure that you have a clean, adequate work space.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Secure the Top Console (No. 89) to both support tubes using 2 Half-roundhead Hex Bolts (No. 15) and 2 Serrated Gaskets (No.
  • Page 9: Lubricating The Treadmill

    LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use! RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Belt (No. 50) and Running Board (No. 49) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. 50) regularly. If find wear Running...
  • Page 10: Adjusting The Running Belt

    MAINTENANCE GUIDE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides of the Running Belt (No. 50) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from the shoes does not wear the Running Board (No.
  • Page 11: Folding Instructions

    FOLDING INSTRUCTIONS NOTE: Please make sure the incline is at ZERO when folding and unfolding. FOLDING: To fold the treadmill, place your hands at the end of the running board and lift the running board all the way up until you hear the safety lock ‘Click’...
  • Page 12: Incline Instructions

    INCLINE INSTRUCTIONS Console Keys and + - INCLINE Handrail Keys are used to control the incline level. Increase or decrease the incline level by pressing the incline buttons once per level or holding an incline key down to skip through to the desired level. INCLINE LEVELS (0%) = 1.5°...
  • Page 13: How To Move The Treadmill

    HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, make sure that it has been properly folded. Then, unplug the power cord. To tilt, start by placing one hand at position "P" to support the top end of the treadmill. Next, place one foot at position "K"...
  • Page 14: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user.
  • Page 15: The Display Console

    THE DISPLAY CONSOLE WINDOW DISPLAY The treadmill will start after a 3 second countdown. 1. PROGRAM: In addition to manual mode, there are 12 preset programs and 3 countdown functions. 2. SPEED: The speed range is 1- 8 MPH. The initial default speed is 1 MPH. 3.
  • Page 16: Countdown Mode

    FUNCTION KEYS/MANUAL MODE 1. START/STOP: Insert the Safety Key (No. 1) into the top console and press START to start the treadmill. The treadmill will initiate at the default running speed of 1 MPH. Press STOP to bring the running belt to a stop. 2.
  • Page 17 PROGRAMS Each program is divided into 10 exercise segments in an equal time division.
  • Page 18 USER PROGRAMS (U1-U3): Each program is made up of 10 segments. User Programs allow you to personalize each segment of your exercise program by programming each individual segment’s time duration, desired speed, and incline. To begin, press the PROG button to select U1, U2, or U3 then press MODE to enter the setting mode and set the TIME of the 1 segment.
  • Page 19: Bluetooth Instructions

    Syncing your treadmill with Bluetooth will enable you to listen to your favorite tunes on your music app from your treadmill. Don’t worry about getting distracted with a phone call while on the treadmill. The SF-T7515 Smart Treadmill allows you to answer your calls without having to interrupt your exercise! NOTE: When syncing your treadmill with Bluetooth, please unplug the MP3 Wire (No.
  • Page 20: Exercise Instructions

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise programs, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
  • Page 21: Troubleshooting

    TROUBLESHOOTING Code Description How to Troubleshoot 1. Insert the safety key properly. ----- Safety key fault. 2. Replace the safety key sensor or safety key. If there’s still a problem, replace the top console. Possible Reasons: Communication obstructed between control board and top console, please check to make Communication abnormality: no sure the wires are connected properly, and the wires communication from the top...
