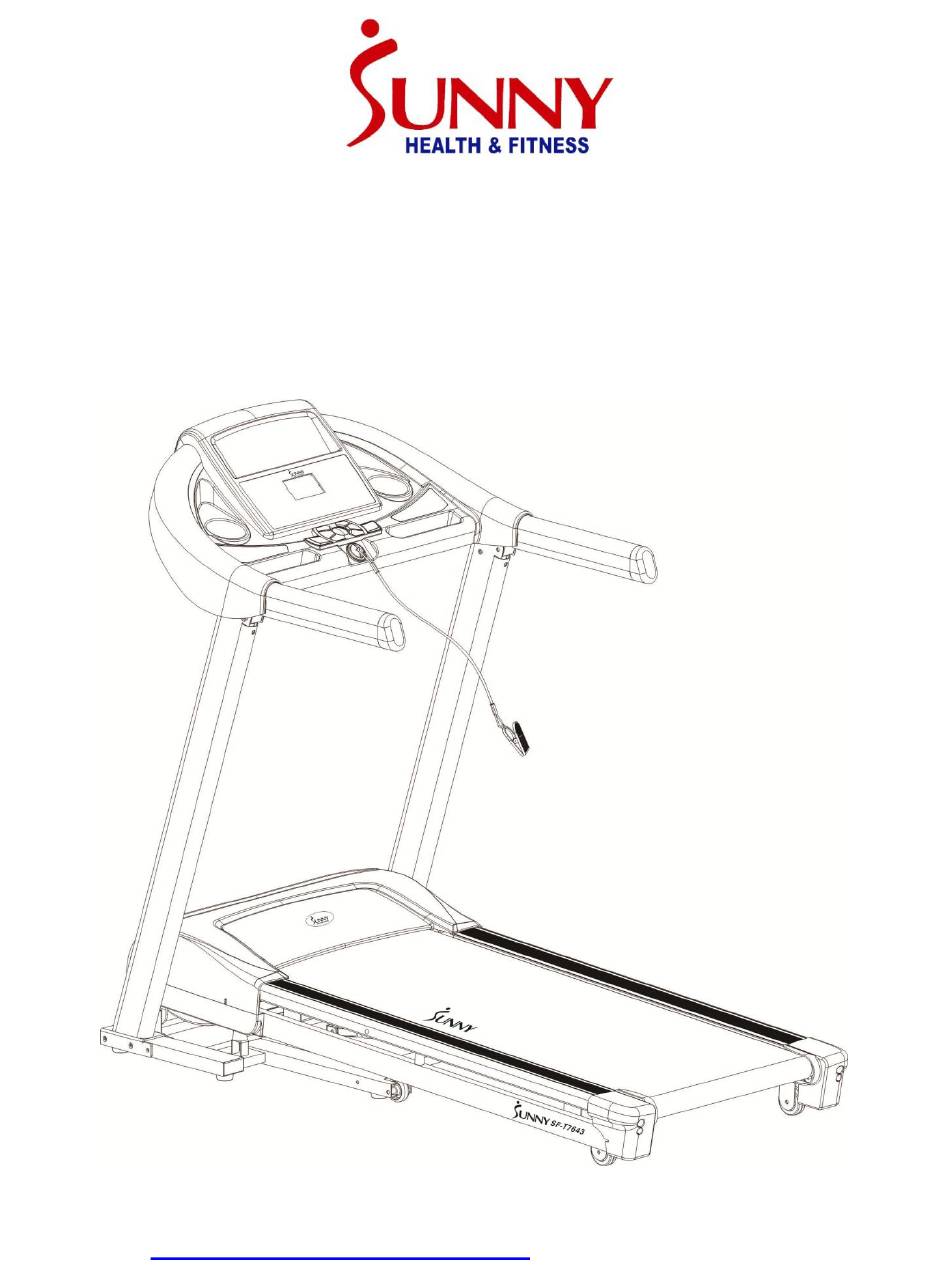

- Page 1 HEAVY DUTY WALKING TREADMILL SF-T7643 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. It is important to read this entire manual before assembling and using the equipment. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. 1. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Drawing
EXPLODED DRAWING... -
Page 6: Parts List
PARTS LIST Description Specification Description Specification Base Frame Running Board Main Frame Square Switch Computer Bracket Overload Protector Left Upright Tube Magnetic Ring Right Upright Tube Magnetic Core Motor Bracket Power Wire Front Roller AC Signal Wire 200mm Blue Rear Roller AC Signal Wire 200mm Brown Spanner w/ Screw Driver... - Page 7 Cone-shape Cushion Screw ST3.5*8 Console Screw ST4.2*20 Control Board Filter Upper Signal Wire Filter Strengthen Board Lower Signal Wire AC Single Wire 350mm Brown Safety Key Connecting Wire AC Single Wire 350mm Blue Safety Key Grounding Wire 350mm Sensor Screw ST4.2*12 DC Motor...
-
Page 8: Assembly Hardware
ASSEMBLY HARDWARE CARTON CONTENTS: Description Specification Qty Description Specification Qty Main Frame Safety Key Console Bolt M8*48 B03 Spanner W/ Screw Driver S=13,14,15 Bolt M8*15 Allen Wrench Washer ASSEMBLY TOOLS Allen Wrench (5mm) – 1PC Spanner with Screw Driver (S=13, 14, 15) – 1PC We recommend having two people do the assembly. - Page 9 ASSEMBLY INSTRUCTIONS STEP 1: Open carton remove contents. Place the Main Frame (A) on the ground and ensure you have a work area that is clean and has adequate space. Do not cut the Packing Belt until assembly is complete! STEP 2: Lift up the Left Upright Tube (No.
- Page 10 STEP 3: Connect the Upper Signal Wire (No. D03) to the Lower Signal Wire (No. D04). Fix the Console (No. B) to the Left and Right Upright Tubes (No. A04 & A05) with 2 Bolts (No. E07), 4 Bolts (No. E12) and 6 Lock Washers (No.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5: Loosen the Bolt (No. E12) in Base Frame (No. A01) by using Allen Wrench (No. B04). STEP 6: See Page 14 for instructions on how to fold the machine. Fold the machine and loosen the Bolt (No. E12) in Main Frame (No.
- Page 12 ASSEMBLY INSTRUCTIONS STEP 7: The assembly is now complete! You may now insert the Safety Key (No. D06) into the magnetic area on the Console (B). IMPORTANT NOTE! You will need to lubricate your treadmill before the first use. See Page 13.
-
Page 13: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes do not wear out the running board and belt. -
Page 14: Lubricating The Treadmill
LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly. -
Page 15: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: Place your hand at position “D” and lift the Main Frame (A02) until Pressure Cylinder (B06) “C” locks into the tube. When Pressure Cylinder (B06) successfully locks into the tube, you will hear a clicking sound. UNFOLDING: Before lowering the Main Frame (A02), ensure that the... -
Page 16: How To Move The Machine
HOW TO MOVE THE MACHINE Before attempting to move the treadmill, please make sure that been properly folded. Unplug power cord. Start by placing one hand at position “D” to support the top end of the treadmill. Next, place one foot at position “E” to hold the bottom end of the treadmill steady. -
Page 17: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user. -
Page 18: The Display Console
THE DISPLAY CONSOLE QUICK START 1. Insert the magnet end of the safety key into the computer console. 2. Press the START button, and the system will automatically display a 3 second countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.5 MPH. -
Page 19: Window Display
THE DISPLAY CONSOLE WINDOW DISPLAY 1. SPEED: Displays current speed (range 0.5-6.0 MPH). When in setting mode, the window displays H-1, H-2, H-3. 2. TIME: Displays the exercise time from 0:00-99:59 MINS. If the time reaches 99:59, the machine will stop smoothly and display “End” and will enter into standby mode after 5 seconds. - Page 20 5. 1, 3, 5 MPH (QUICK SPEED BUTTONS): These buttons are preset to the speeds of 1, 3, 5 MPH for convenience. LUBRICATION REMINDER Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping sound every 10 seconds and display an “OIL” icon on your LCD display to remind you when it’s time.
-
Page 21: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 22: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted Insert Safety Key Running belt tension not Tighten the adjustment bolts Running belt not centered correct on the left or right on the left and right side of the sides of the running board rear roller... - Page 23 Check motor wires to see if the motor is connected. The motor wire is not the wire has been punctured E06: Motor Abnormality connected or the motor is or damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor Check the upper and middle...
