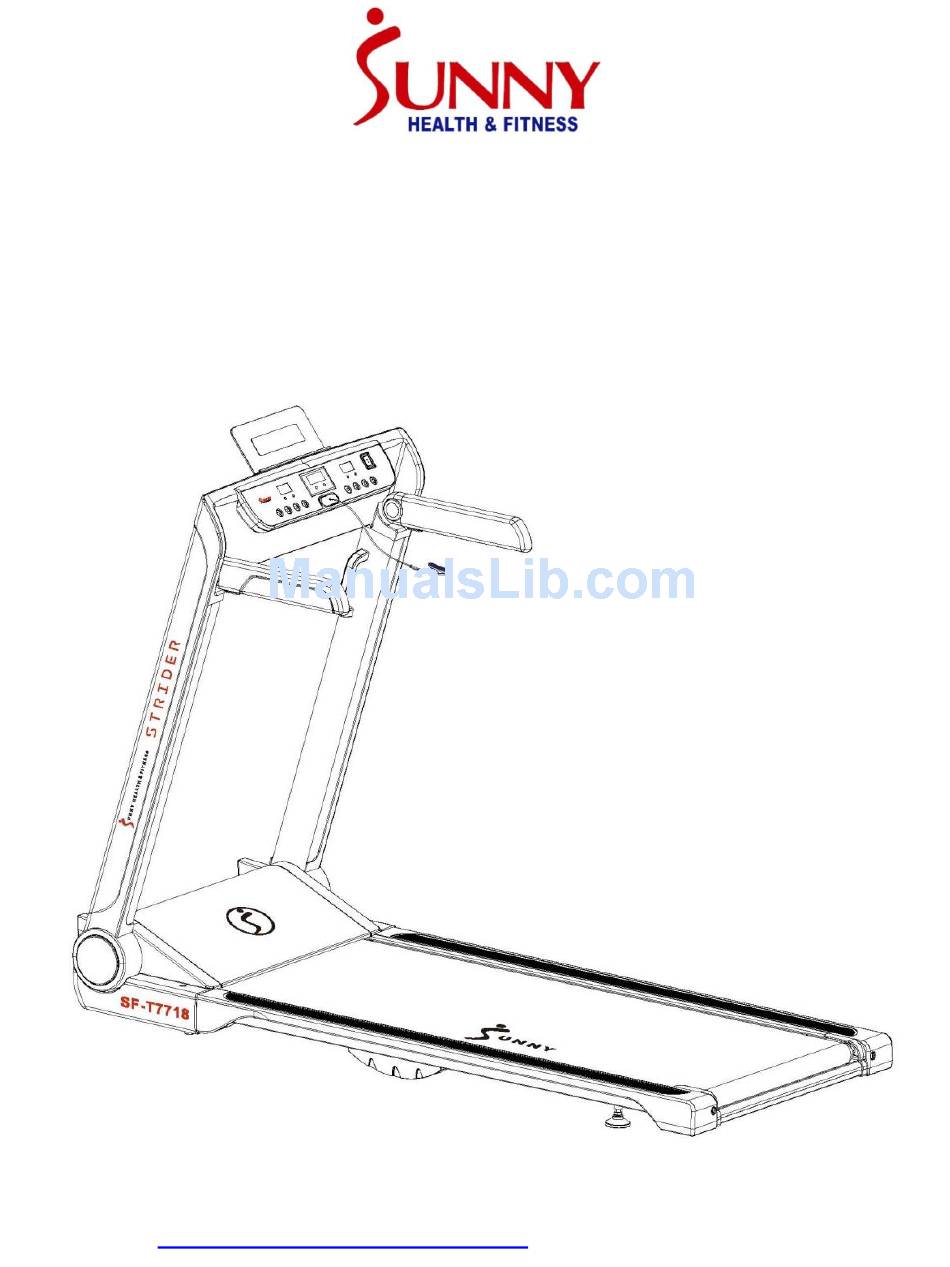

STRIDER TREADMILL WITH
20" WIDE LOPRO DECK
SF-T7718
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product.
Retain owner's manual for future reference. For customer service, please
contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-T7718 and is the answer not in the manual?

Questions and answers

joseph rosabella
May 2, 2025

how do i reset lube alarm when i finish lubing

1 comments:
Mr. Anderson
May 17, 2025

To reset the lube alarm on the Sunny Health & Fitness SF-T7718, press and hold the STOP button for 3 seconds after applying the lubricating oil. This will clear the reminder.

This answer is automatically generated

Summary of Contents for Sunny Health & Fitness SF-T7718

  • Page 1 STRIDER TREADMILL WITH 20” WIDE LOPRO DECK SF-T7718 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical equipment, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug the equipment from the electrical outlet immediately after using and before cleaning.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. It is important to read this entire manual before assembling and using the equipment. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. 1.
  • Page 4: Important Note

    IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Use the adjustment keys on the main console to set the desired speed. The speed will increase gradually. 4.
  • Page 5: Exploded Drawing

    EXPLODED DRAWING...
  • Page 7: Parts List

    PARTS LIST Description Specification Description Specification Base Frame Left Handle Bar Guide Rod Connecting Right Handle Bar Frame 1 Guide Rod Connecting Left Handle Bar Front Cover Frame 2 Main Frame Right Handle Bar Front Cover Folding Frame Handle Bar Side Cover Left Upright Motor Top Cover Right Upright...
  • Page 8 Amplifier Board Bolt M8*15 Amplifier Power Upper Wire Bolt M8*30 Amplifier Power Lower Wire Bolt M6*50 USB Power Upper Wire Bolt M6*25 USB Power Lower Wire Bolt M6*10 Audio Socket Wire Bolt M5*16 USB Module Bolt M5*12 Speaker Upper Wire Bolt M5*8 Speaker Lower Wire...
  • Page 9: Assembly Hardware

    ASSEMBLY HARDWARE CARTON CONTENTS: Description Specification Qty Description Specification Qty Treadmill Power Wire Spanner W/ Screw Driver S=13,14,15 MP3 Wire Allen Wrench Lubricant Oil Safety Key TOOLS Allen Wrench (5mm) Spanner with Screw Driver (S=13, 14, 15)
  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: Open the carton and remove contents. Place the Treadmill (A) on level ground. Ensure that you have a work area that is clean and has adequate space. STEP 2: Pull out the Rotating Plate (No. A12) with your right hand. At the same time, place your left hand at the Handle [Position B], then pull up the Upright Tubes (No.
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 3: Turn down the Left and Right Handle Bars (No. C10 and C11) to the fixed position. STEP 4: Stand behind the treadmill. Pull out the Plastic Nut (No. C09) with your left hand and turn up the Holder (No.
  • Page 12: Maintenance And Care

    MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt.
  • Page 13: Lubricating The Treadmill

    LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is recommended that the running board and belt be inspected regularly.
  • Page 14: Folding Instructions

    FOLDING INSTRUCTIONS STEP 1: NOTE: Always unplug treadmill from the electrical outlet before folding. Pull out the Plastic Nut (No. C09) with your left hand and turn down the Holder (No. C08) with your right hand. Once the holder reaches a suitable angle, let go of the Plastic Nut (No.
  • Page 15 FOLDING INSTRUCTIONS STEP 3: Pull out the Rotating Plate (No. A12) with your right hand and place your left hand at the Handle [Position B]. Then push down the Upright Tubes (No. H&G) at the same time. When pushing down Upright Tubes (No.
  • Page 16 FOLDING INSTRUCTIONS STEP 5: Place your hand on Position E, and using your foot, turn the Folding Fixed Board (No. A13) horizontal position. STEP 6: Grasp the treadmill at Position E with your hand. Next, using your foot, firmly push against treadmill at position J.
  • Page 17: Storage Of Machine

    STORAGE OF MACHINE This treadmill is designed for saving space. You can choose to store treadmill vertically or horizontally. A. Vertical Storage After folding, place the machine near the wall to avoid falling down. Keep out of reach of children. B.
  • Page 18: How To Move The Machine

    HOW TO MOVE THE MACHINE Place your hands at Position E. Put the Folding Frame (No. A05) inside the bottom of the treadmill and turn the Folding Fixed Board (No. A13) to vertical with your foot to fix the Folding Frame (No. A05).
  • Page 19: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.
  • Page 20 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. D07) from the computer console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the computer will show “- - -“ and the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
  • Page 21: Exercise Instructions

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
  • Page 22: Quick Start

    OPERATING INSTRUCTIONS QUICK START: 1. Insert the magnet end of the safety key into the computer console. Turn on the power switch. 2. Press the START button, and the system will automatically display a 3 second countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.6 MPH.
  • Page 23: Function Keys

    it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will count down from the setting data to 0.00. When it reaches 0.00, the machine will stop smoothly and display “End” and automatically reset to the initial setting after 5 seconds. When setting PROGRAMS, the speed is programmed in intervals;...
  • Page 24: Playing Music

    PLAYING MUSIC You can connect your mobile device to the treadmill to play music. You select music tracks and adjust the volume of music using your device buttons. There are 2 ways to connect: 1. Connect your device using the MP3 wire (No.D20). 2.
  • Page 25 Press the START button to start the interval program. The interval program is divided into 10 sections. Each exercise time equals the setting time divided by 10. When the speed enters the next interval, the treadmill will beep, and the speed will be changed according to the set interval.
  • Page 26: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted Insert Safety Key Tighten the adjustment bolts Running belt tension not on the left and right side of the Running belt not centered correct on the left or right rear roller.
  • Page 27 Check motor wires to see if the motor is connected. If The motor wire is not the wire has been punctured E06: Motor Abnormality connected or the motor is or damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor Check the upper and middle...
