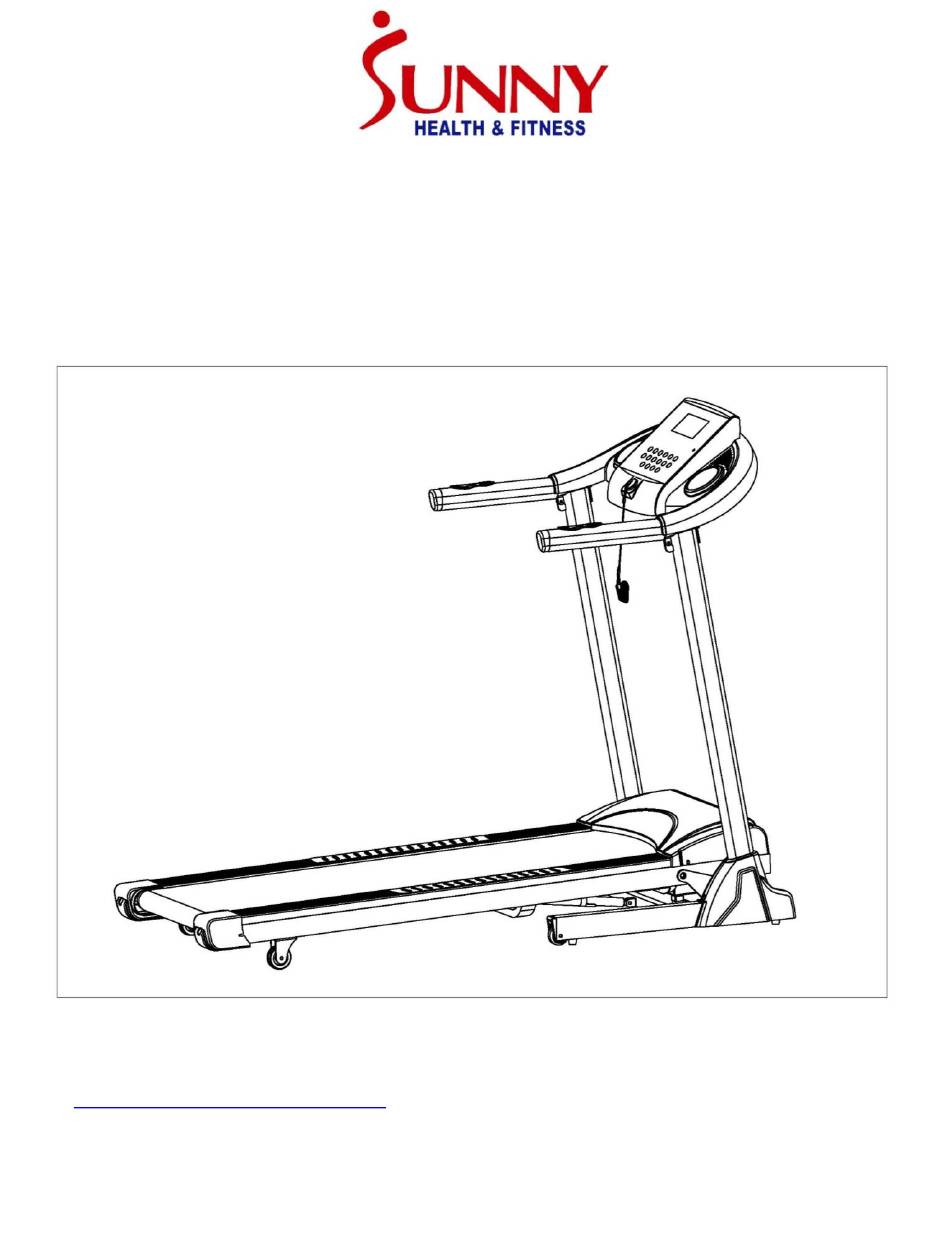

TREADMILL WITH AUTO INCLINE
SF-T7873
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US:
support@sunnyhealthfitness.com
or 1 - 877 - 90SUNNY (877-907-8669).
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SF-T7873 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-T7873

Summary of Contents for Sunny Health & Fitness SF-T7873

  • Page 1 TREADMILL WITH AUTO INCLINE SF-T7873 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1 - 877 - 90SUNNY (877-907-8669).
  • Page 2 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
  • Page 3 EXPLODED DIAGRAM...
  • Page 4 PARTS LIST Description Specification Qty. Description Specification Qty. Base Frame Bolt M8X25 Main Frame Bolt M8*15 3L/R Upright Tube 1 pr. Bolt M6X18 Console Frame Bolt M8X35 Reinforcement Tube Bolt M8X60 Incline Frame Bolt M8X18 Loudspeaker Bolt M6X55 Filter Connecting Board Bolt M6X30 Front Roller...
  • Page 5 HARDWARE PACKAGE # 60 Φ8X1.2 8PCS # 45 M8*15 8PCS # 90 S=13,14,15 1PC # 89 S=5 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓...

  • Page 6: Base Frame (

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: We recommend having two people to do the assembly. Open the carton and remove contents. Place the Main Frame (No.
  • Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 4 Screws (No. 55) from the Base Frame (No. 1) by Spanner (No. 90).
  • Page 8 LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. Lubricating the Running Board (No.15) and Running Belt (No. 14) is essential as the friction between the two affects the life span and function of the treadmill. Inspect the Running Board (No. 15) and Running Belt (No.
  • Page 9 MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 14) to prevent dust from accumulating underneath the Running Belt (No. 14). Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.

  • Page 10: Cylinder 1

    FOLDING INSTRUCTIONS FOLDING Turn off the power before folding. Restore the incline to flat position (Incline Level 0). Place your hand at position “A” and lift up on the Main Frame (No. 2) to push top of the running board forward until Cylinder (No.
  • Page 11 HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “M”...
  • Page 12 IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 13: Side Rail

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
  • Page 14 THE DISPLAY CONSOLE DISPLAYS 1. Start: Normal startup after 3 seconds countdown. 2. Number of programs: Manual mode, 9 preset programs, HRC, FAT. 3. Safe lock function: Remove the safety key in any mode, and the treadmill will slow down rapidly till it stops. The console will beep continuously and “---”...

  • Page 15: Shortcut Key

    KEY FUNCTION 1. START: Press to start up the treadmill in the stop state. The default speed displayed is 0.6 MPH. 2. PAUSE / STOP: When the treadmill is running, press PAUSE / STOP once to pause the motor, and PAUSE will show on the display.

  • Page 16: Safety Key

    SPEED: 0.6 – 11.0 (MPH) PULSE: 50 – 200 (BPM) INCLINE: 0 – 15% HEART RATE MEASUREMENT FUNCTION While the treadmill is on, hold the pulse sensor for 5 seconds and the heart rate value will be displayed. The initial value is the actually measured heart rate, and the display range is 50-200 BPM. In the heartbeat measurement process, there will be a heart shaped icon flashing.

  • Page 17: Switch

    values go to zero and treadmill is now in standby state. 7. If a value reaches the maximum value, it will reset to 0 and the treadmill will stop. In manual mode, the treadmill will stop when the time accumulates to be more than 99: 59 (100 min) PROGRAM MODE 1.
  • Page 18 HEART RATE CONTROL (HRC) 1. The treadmill will adjust the speed automatically by checking the heart rate wirelessly and comparing to the chart below. Use a heart rate chest strap (not included) with the HRC program. The treadmill is compatible with chest strap that uses 5.3 KHz frequency. Lowest-Highest: the adjustable range in the heart rate from the lowest to the highest.
  • Page 19 To select HRC, press PROG to cycle through the preset programs to reach HRC. Press SPEED + / - to adjust speed. After setting the values, press START to start the treadmill. a: Age setting range: 13-80 years old, default value is 30 years old. b: Default target heart rate: (220-age)*0.6 c: Users can revise target heart rate d: Time setting range: 5-99 minutes, default time is 30 minutes.
  • Page 20 TROUBLESHOOTING Problem Potential reasons Solutions 1. Place back the safety key back; 2. Replace safety key switch or magnetic sensor in the electronic ------- Safety key falls down meter; if the problem still fails to be solved, replace the electronic meter;...
  • Page 21 1. Check whether lifting signal wires are damaged. 2. Check whether lifting signal terminals and the controller’s lifting terminals are firmly connected. Lifting sensor has no signal 3. Check whether lifting power cords are damaged. 4. Check whether lifting power cord terminals and the controller’s lifting terminals are firmly connected.
