Hinweis
Beachten Sie ebenfalls unsere
Garantie- und allgemeinen
Verkaufs- und Lieferbedingungen.
Bitte setzen Sie sich bei Fragen oder
Unklarheiten mit Ihrer lokalen
ISMATEC
-Vertretung in Verbindung.
®
Please note
We also recommend you observe
our Warranty Terms as well as our
Terms and Conditions of Sale.
In case of any queries, please contact your
local ISMATEC
®
representative.
Remarque
Veuillez lire également nos conditions
de garantie, nos conditions générales de
vente ainsi que nos conditions de livraison.
Pour toute demande, veuillez prendre contact
avec votre représentant ISMATEC
.
®
IPC/IPC-N, 14-013, REV. D

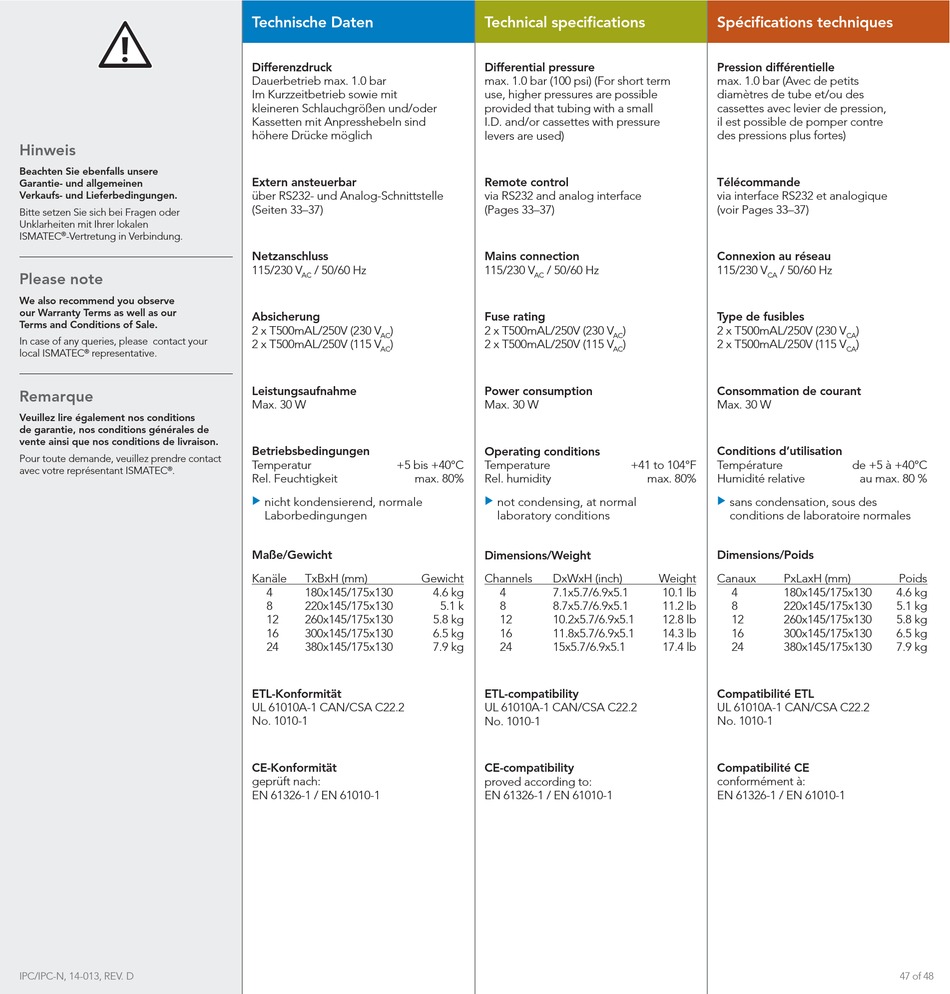

Technische Daten
Differenzdruck
Dauerbetrieb max. 1.0 bar
Im Kurzzeitbetrieb sowie mit
kleineren Schlauchgrößen und/oder
Kassetten mit Anpresshebeln sind
höhere Drücke möglich
Extern ansteuerbar
über RS232- und Analog-Schnittstelle
(Seiten 33–37)
Netzanschluss
115/230 V
/ 50/60 Hz
AC
Absicherung
2 x T500mAL/250V (230 V
)
AC
2 x T500mAL/250V (115 V
)
AC
Leistungsaufnahme
Max. 30 W
Betriebsbedingungen
Temperatur
+5 bis +40°C
Rel. Feuchtigkeit
max. 80%
X
X
nicht kondensierend, normale
Laborbedingungen
Maße/Gewicht
Kanäle
TxBxH (mm)
Gewicht
4
180x145/175x130
8
220x145/175x130
12
260x145/175x130
16
300x145/175x130
24
380x145/175x130
ETL-Konformität
UL 61010A-1 CAN/CSA C22.2
No. 1010-1
CE-Konformität
geprüft nach:
EN 61326-1 / EN 61010-1
Technical specifications
Differential pressure
max. 1.0 bar (100 psi) (For short term
use, higher pressures are possible
provided that tubing with a small
I.D. and/or cassettes with pressure
levers are used)
Remote control
via RS232 and analog interface
(Pages 33–37)
Mains connection
115/230 V
/ 50/60 Hz
AC
Fuse rating
2 x T500mAL/250V (230 V
2 x T500mAL/250V (115 V
Power consumption
Max. 30 W
Operating conditions
Temperature
Rel. humidity
X
X
not condensing, at normal
laboratory conditions
Dimensions/Weight
Channels
DxWxH (inch)
4.6 kg
4
7.1x5.7/6.9x5.1
5.1 k
8
8.7x5.7/6.9x5.1
5.8 kg
12
10.2x5.7/6.9x5.1
6.5 kg
16
11.8x5.7/6.9x5.1
7.9 kg
24
15x5.7/6.9x5.1
ETL-compatibility
UL 61010A-1 CAN/CSA C22.2
No. 1010-1
CE-compatibility
proved according to:
EN 61326-1 / EN 61010-1
Spécifications techniques
Pression différentielle
max. 1.0 bar (Avec de petits
diamètres de tube et/ou des
cassettes avec levier de pression,
il est possible de pomper contre
des pressions plus fortes)
Télécommande
via interface RS232 et analogique
(voir Pages 33–37)
Connexion au réseau
115/230 V
/ 50/60 Hz
CA
Type de fusibles
)
2 x T500mAL/250V (230 V
AC
)
2 x T500mAL/250V (115 V
AC
Consommation de courant
Max. 30 W
Conditions d'utilisation
+41 to 104°F
Température
max. 80%
Humidité relative
X
X
sans condensation, sous des
conditions de laboratoire normales
Dimensions/Poids
Weight
Canaux
PxLaxH (mm)
4
180x145/175x130
10.1 lb
11.2 lb
8
220x145/175x130
12.8 lb
12
260x145/175x130
14.3 lb
16
300x145/175x130
17.4 lb
24
380x145/175x130
Compatibilité ETL
UL 61010A-1 CAN/CSA C22.2
No. 1010-1
Compatibilité CE
conformément à:
EN 61326-1 / EN 61010-1
)
CA
)
CA
de +5 à +40°C
au max. 80 %
Poids
4.6 kg
5.1 kg
5.8 kg
6.5 kg
7.9 kg
47 of 48
