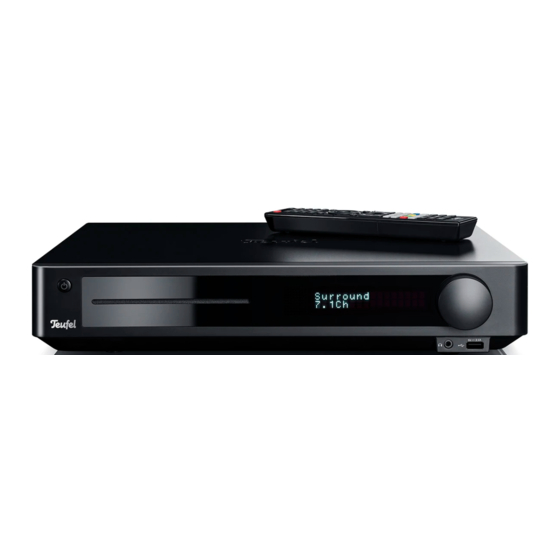

- Page 1 Technical description and user manual Impaq 8000 7.1 AV receiver with 3D Blu-ray player...
-
Page 2: Table Of Contents
Photo playback ............42 Adjusting the sound ..........17 AVCHD playback ..........43 Surround mode selection........17 Care and Cleaning ........... 44 Setting the audio delay ........18 Adjusting the channel level .........18 Troubleshooting ............45 Main menu ............... 19 Technical data ............51 • Impaq 8000... -
Page 3: General Notes And Information
HDMI logo are trademarks or registered prior notice and in no way constitutes any liability on trademarks of HDMI Licensing LLC in the USA and the part of Lautsprecher Teufel GmbH. other countries. No part of this user manual may be reproduced in... -
Page 4: Original Packaging
TV set. Empty boxes are not available! Only use the Impaq 8000 as described in this user manual. Any other use will be deemed as not in accordance with the instructions and may lead to Complaints damage of property or even persons. -
Page 5: For Your Safety
Repairs may only be carried out by an authorised specialist workshop. Only parts that match the origi- nal specifications may be used. • Only use the accessory products specified by the manufacturer. • Only use the device indoors. • Impaq 8000... -
Page 6: Warning Of Damage To Property
• Do not look into the beam, even if you are using optical instruments. This product contains magnetic material. • If necessary, consult your physician and ask for effects on implants such as pacemakers or defibril- lators. • Impaq 8000... -
Page 7: Explanation Of Symbols
Please only turn in batteries and rechargea- ble batteries which are empty! *) labelled with: Cd = cadmium, Hg = mer- cury, Pb = lead • Impaq 8000... -
Page 8: Overview
• Carefully open the box and carefully lift the device and accessories out of the box. ① Pack contents ① 1 × AV receiver Impaq 8000 ② 1 × remote control IP 8000 RC ② ③ 1 × mains cord for the AV receiver ④... -
Page 9: Operational Controls And Connections
Input jacks for analogue source devices audio source devices HDMI TV HDMI output jack for TV set SUB OUT Output jack for active USB port subwoofer Antenna connection AUX OUT / Analogue audio output RC PRE OUT jacks • Impaq 8000... -
Page 10: Remote Control
INFO SOURCE Selecting a source MEMORY +/– Displaying the control options Skip back/exit the menu DISC MENU Accessing the BD/DVD menu SEARCH Video: selecting the title, chap- ter, time Radio: auto store station Turning the device on/off • Impaq 8000... -
Page 11: Inserting Batteries
The remote control relays the control signals by means of infrared light. For this, you will have to point the front side of the remote control towards the Impaq 8000. Make sure that the infrared light is not obstructed by objects. Fluorescent lamps and energy-saving lamps installed in the direct vicinity may affect the functions of the remote control or impair them. -
Page 12: Setup
Front Center Front To set up a 7.1 system, the Impaq 8000 can emit the rear channels via the jacks 20 “AUX OUT / RC PRE OUT”. You can connect an external stereo amplifier, active speaker or radio system to it. Then the speakers are mounted behind (b) or above the viewers. -
Page 13: Connecting The Speakers
1. Split the speaker cables down to approx. 30 mm on both ends. 2. Remove approx. 10 mm of the insulation on each end. 3. Twist the single wire so that no strands are protrud- ing. • Impaq 8000... -
Page 14: Tv Set
If your TV set does not emit audio via HDMI ARC, you programmes. See the user manual of your television can assign one of the audio inputs of the Impaq 8000 set for more information. to the TV set in the “Audio Mapping” menu (see page 14). -
Page 15: Fm/Usw Antenna
Wi-Fi tem has lightning protection. If you use the optional Teufel WiFi link USB adapter ⑥: To receive FM stations, connect the antenna to the 1. Fold the adapter antenna into a 90° position. -
Page 16: Basic Functions
(3) and SRC (8) on the front side of the Impaq 8000 are illuminated sensor buttons: Light- ly touching them will cause them to switch. Activating and deactivating • Switch the Impaq 8000 on or to standby with the button (1) or (54). When in standby, the button (1) will be illuminated in red. -
Page 17: Adjusting The Volume
REPEAT INFO MEMORY Dolby Digital and DTS Surround mode is locked for the playback of Dolby Digital or DTS-coded multichannel tracks and so the SURROUND button (36) is not functional during play- back of such multi-channel streams. • Impaq 8000... -
Page 18: Setting The Audio Delay
3. Set the relative volume (–10 dB to +10 dB) with the navigation buttons ▲▼ (25). Shortly after the last button is pushed, the original readout will appear again on the display. The new settings have now been saved. • Impaq 8000... -
Page 19: Main Menu
Main menu Most functions of your Impaq 8000 are configured via the main menu. You can navigate through the menu with the remote control and it will be shown on the connected television set. Both devices must be turned on in order to view the picture from the receiver on the television set. -
Page 20: My Media
More information on each menu item is displayed on the right side. After you select a data carrier or server, the available data and folders are shown in a list and can be select- ed for playback. • Impaq 8000... -
Page 21: Main Menu "Settings
• Off – if “Autom” displays incorrect colours. Here you can set the resolution in which the “HDMI 1080p 24Hz” Impaq 8000 supplies all videos and images to the TV set. Movies are saved on Blu-ray discs with the full res- olution and 24 frames/second (1080p24). -
Page 22: Menu "Speaker Settings
• 96 kHz – corresponds to DVD quality If you use satellites and subwoofers, you should select • 192 kHz – no down-sampling (Blu-ray quality) the optimal crossover frequency in the Impaq 8000. Otherwise, the sound quality will suffer and the satel- lites could be damaged. -
Page 23: Menu "Audio Mapping
Ethernet cable . The next menu offers three options: • Wi-Fi – The Teufel WiFi Link USB adapter is fitted in • Search – Displays all existing Wi-Fi base stations one of the USB ports (6) or (14), which establishes with a corresponding selection. - Page 24 Impaq 8000 can establish a connection without any further input for two minutes. • PIN – the Impaq 8000 issues a random code for entry on the AP (base station, router). Please refer to the user manual for your AP for more information.
-
Page 25: Menu "Wireless
• Prohibited – Prevent access for all BDs. “Bluetooth” “ DLNA” 1. After selecting this menu item, the notice that The Impaq 8000 is a digital media player (DMP) that ® Bluetooth will be activated appears on the screen. complies with the specifications of the Digital Living Push the OK button (26) to continue or the button Network Alliance ( DLNA). -
Page 26: Menu "System
BD. Possible values: Alternatively, you can download the new firmware from the Teufel website and save it on a USB stick. As soon • On – playback starts automatically (not possible as you insert the USB stick in the USB port (14), the with some Blu-ray discs) new firmware will be detected. -
Page 27: Menu "Security
Menu “Security” Main menu “Sound” Setting for the child lock for BD/DVD playback. Some You can set the sound system of the Impaq 8000 in BD/DVDs are labelled for certain age groups and this menu. cannot be played back if a corresponding setting has been configured. -
Page 28: Sound
Speakers located at different distances to the listen- ing position may disturb the surround sound effect. Set the distances from the listening position to each speaker from 0 to 1200 cm in order to compensate these run-time differences. • Impaq 8000... -
Page 29: Source
Source Main menu “Source” You can set the source here. Notice: You can reach a DLNA server by selecting “Disc” or the main menu item “My media”. • Impaq 8000... -
Page 30: Radio Mode
In stereo mode, you may experience noticeable noise SOURCE VOLUME with weak stations. In this case, you switch to mo- no-mode by pushing the ZOOM/ button (42). TV /ARC) RADIO LEVEL TONE SURROUND LIP SYNC SUBTITLE REPEAT INFO MEMORY • Impaq 8000... -
Page 31: Station Memory
Station memory Your Impaq 8000 can save up to 30 FM stations. You can conveniently select the saved stations. Saving stations manually 1. Set the desired station as described above. 2. Push the MEMORY button (41). The number of the first available memory slot will blink on the display (4) and on the screen. -
Page 32: Bluetooth Mode
(e.g. smartphone). 2. Use the button (34) to select the “Bluetooth ® ” input on the Impaq 8000. “BT” will appear on the TV /ARC) RADIO display and after a moment “Disconnected”. LEVEL TONE SURROUND 3. -
Page 33: Playback
2. Hold your source device close to the NFC contact zone on the top side of the Impaq 8000 (see fig. right). If FM or AUX is selected as the source, the ®- Impaq 8000 will automatically switch to Bluetooth mode. -
Page 34: Bd/Dvd/Cd Mode
Ogg Vorbis always protect the discs against dirt and scratches. MPEG-1/-2 Real Media Your Impaq 8000 can compensate smaller damages Audio on the disc. Larger scratches or other damages can cause the disc to catch or lead to similar errors. Also... -
Page 35: Ejecting The Disc
However, a Blu-ray can also be played normally without the BD live memory. – If the main menu of the Impaq 8000 appears, SOURCE VOLUME select the item “My media” with the navigation but- tons ◀▶ (25) and push the selector button OK (26). -
Page 36: Usb Mode
USB Mode Your Impaq 8000 can read USB memory sticks and Removing the USB device USB hard-drives with the USB 1.0 to 3.0 specifica- NOTICE tions and play back the photos, music files and videos saved on them. It is also possible to directly connect... -
Page 37: Dlna Mode
(DMR) certified in accordance with the DLNA. SEARCH CLEAR As a DMP, the Impaq 8000 is able to connect with any local DLNA digital media server (DMS) via the network where it can display and play the media provided there. DMS are available as programmes for all phone and PC operating systems. -
Page 38: Playback Functions
Access the BD/DVD menu: Push the DISC MENU button (52). Access the pop up menu (if present on the BD/DVD): Push the POP UP MENU button (24). Continue playback: Push the POP UP MENU button (24) again. • Impaq 8000... -
Page 39: Display Information
– you can select another file for playback. 2D to 3D Level – Intensity of the 3D effect, can be set from 1 (low) to 32 (intense). Current track/ number of tracks – you can select another track. • Impaq 8000... -
Page 40: Repeat Function
5. Finish by pushing the OK button (26). Playback will start from the selected position. 6. Push the SEARCH button (53) to cancel. The info window will disappear. It will automatically disappear after 10 seconds of inactivity. • Impaq 8000... -
Page 41: File Selection
– Using the number buttons 1...0 (22) you can enter the number of a track, which will immediately begin to play then. The other functions are described in the section „Gen- eral playback information“ on page 38. • Impaq 8000... -
Page 42: Photo Playback
(Playback) mode – choose between normal or random playback. Slide show– image display duration: fast, medium, slow. Select with the OK button (26). Transition (only when the slide show is running): Select with the OK button (26). • Impaq 8000... -
Page 43: Avchd Playback
High Definition”) is a recording format for digital cam- corders developed by Sony and Panasonic. The Impaq 8000 is also capable of playing AVCHD folders on discs (CD, DVD), so-called AVCHD discs or If your camcorder records videos in AVCHD format and mini-BDs. -
Page 44: Care And Cleaning
In case of stubborn marks, a mild soap solution may be used. – Do not use caustic cleaning products, white spirit, thinners, petrol or similar under any circumstances. Such cleaning agents may damage the delicate surface of the housing. • Impaq 8000... -
Page 45: Troubleshooting
Speaker cable not stripped. Properly connect the speakers (page 13). The subwoofer hums. The subwoofer is connected to a Connect the subwoofer and Impaq 8000 to the different power circuit from the same power circuit. rest of the system. The hum is due to line distur- Buy a mains filter and connect both devices to it. - Page 46 Incorrect disc audio track select- Select another audio language (page 23 and 39). Playback speed has been acceler- Switch to normal playback with the button ated or slowed down. (31). Speaker cable not stripped. Properly connect the speakers (page 13). • Impaq 8000...
- Page 47 You cannot toggle sur- You are probably using a digital input. If a multi-channel Dolby or DTS signal is round mode. received on this input, the Impaq 8000 will automatically switch to the correct sur- round mode. • Impaq 8000...
- Page 48 Make sure that the Wi-Fi function on your Wi-Fi base station has been switched on. The Wi-Fi connection to Do not set up the Impaq 8000 directly next to or under obstacles and metallic ob- the Wi-Fi base station jects (e.g. in a closed cabinet).
- Page 49 Phone call 33 HD resolution 21 Colour rendering 21 Pillar box 21 Headphones 14 Colour spectrum 21 Playback 38 Control buttons 35 random 39 cordless 25 Playback speed 38 Country code 34 Power supply Crossover frequency 22 • Impaq 8000...
- Page 50 Sound control 17, 27 YCbCr 21 Sound system 27 Source devices 14, 16, 27 Speaker 12, 22 Zoom factor 38 Standby 16 Standby mode 26 Station 31 Station memory 31 Subnet mask 23 Subtitles 23, 38, 39 Subwoofer • Impaq 8000...
-
Page 51: Technical Data
You can find further technical data on our website. Technical changes reserved! Lautsprecher Teufel GmbH hereby declares that the “Impaq 8000” radio sys- tem complies with the Directives 2014/53/EU, 2014/30/EU and 2014/35/ EU. The full text of the EU declaration of conformity is available at the follow- ing Internet address: www.teufelaudio.com/konformitaetserklaerungen.html... - Page 52 Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 No responsibility is assumed for the BIKINI Berlin (toll-free) correctness of this information. Budapester Str. 44 Fax: +49 (0)30 - 300 930 930...
