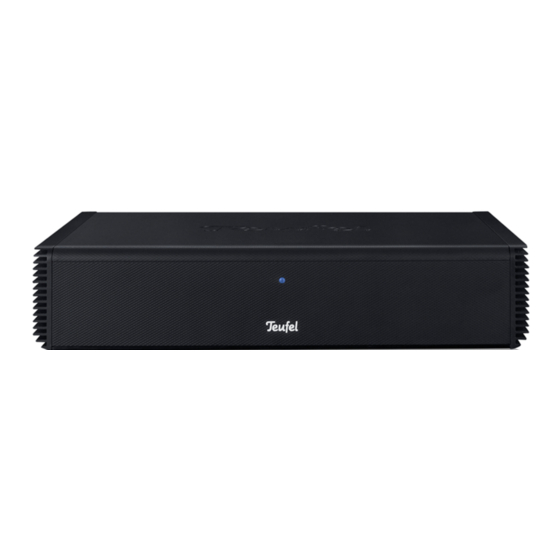

- Page 1 Technical description and instruction manual CoreStation Ultra-compact 5.1 AV Receiver with Wireless Technology...
-
Page 2: Table Of Contents
Checking the delivery ..........7 Crossover .............21 Optional accessories ..........7 Phase Sub ............21 Operational Controls and Connections ....8 Lip Sync ............21 CoreStation back side ...........8 Distance ............21 CoreStation front side ...........9 “System Setup” menu .........21 Remote control RC 1 ..........9 Special Keys ..........21 HDMI ............21... -
Page 3: General Notes And Information
Proper use owned by Bluetooth SIG, Inc. and any use of such Only use the CoreStation as described in these oper- marks by Lautsprecher Teufel GmbH is under license. ating instructions. Any other use will be deemed as... -
Page 4: For Your Safety
Please Read • Only use the accessory products specified by the manufacturer. Before operating the CoreStation, please first • Only use the device in indoor areas. read the safety notes and instruction manual carefully. Only in this way, can you ensure that •... - Page 5 • Only mount the CoreStation on a solid base with sufficient carrying capacity. • Place the CoreStation in such a way that it cannot be knocked over inadvertently and make sure that the cables do not pose a trip hazard.
-
Page 6: Explanation Of Symbols
This cury, Pb = lead ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environ- ment. For this reason, electrical equipment is marked with this symbol. • CoreStation... -
Page 7: Overview
• Do not in any case operate the device if it is dam- aged. Optional accessories • Optionally, you can purchase the Teufel Puck Con- trol – an innovative remote control for controlling volume, muting and selecting input sources – from www.teufelaudio.com. -
Page 8: Operational Controls And Connections
Operational Controls and Connections CoreStation back side Item Name Description — Connector jack for mains cable HDMI IN 1–4 Inputs for external HDMI source devices HDMI TV HDMI output to the TV set LINK Connector jack for additional expansions POWER Power LED —... -
Page 9: Corestation Front Side
CoreStation front side Item Name Description — Function LED Remote control RC 1 Item Name Description Mute (turn sound on or off) VOLUME Increase (+) / decrease (–) the volume +/– ◄►▲▼ Set buttons • Enter button MENU Access the main menu... -
Page 10: Setup / Mounting
Setup / Mounting Setup location You can set up the CoreStation in a concealed loca- tion as the remote control operates with radio signals. When setting the device up in a cabinet, make sure that it is adequately ventilated and aerated to prevent the CoreStation from overheating. - Page 11 3. If necessary, place the washers under the mounting brackets as a spacer. 4. Begin by only screwing the top of the CoreStation into place. 5. If the bottom bore holes of the mounting brackets match up with the bottom VESA fasteners, screw the CoreStation into place on the bottom as well.
-
Page 12: Connecting
Then fix the antenna in place. Inputs for source devices The CoreStation offers 4 HDMI inputs for digital audio/video signals (HDMI 1, 2, 3 and 4), three analogue audio inputs (AUX 1, 2 and 3) as well as one coaxial and two optical digital audio inputs. -
Page 13: Optical 1 And 2
MP3 player. Outputs Speaker outputs The CoreStation has power amplifiers for 5 speak- ers – only the active subwoofer is connected via RCA cable or radio signal. If possible, use high-quality, twin-core speaker single... -
Page 14: Subwoofer
(e.g. 3.1 mode: Convert the 5.1 audio signal to 2 stereo Teufel RearStation 4) to these jacks. You will need channels (2.0) (downmix), e.g. for relay- ing the audio signal to a second room. -
Page 15: Tv Set
1. Make sure that your active subwoofer and/or the active speakers are switched off. 2. Insert the IEC power plug of the mains cable into the jack (1). 3. Insert the mains plug into a mains power socket (230 V ~ / 50 Hz). • CoreStation... -
Page 16: Remote Control
“4” (28) until the indicator LED (31) blinks three times. If the indicator LED (31) blinks ten times, an error has occurred. Repeat the process. Note: The LED (31) on the remote control only lights up after it has been paired with the CoreStation. • CoreStation... -
Page 17: Basic Functions
Basic functions Activating and deactivating • You can switch the CoreStation on by briefly push- ing the button (6) on the back of the device or (32). The function LED (19) will briefly light up in white during start-up. • You can switch the CoreStation to standby by... -
Page 18: Setting The Volume
Dolby PLII Music Dolby ProLogic II for music Dolby Digital and DTS Surround mode is locked for the playback of Dolby Digital or DTS-coded multichannel tracks; thus the MODE button (29) is not functional when such signals are present. • CoreStation... -
Page 19: Menu Functions
This menu is only available in radio mode (FM). 1. Switch the CoreStation and your TV on. Presets 2. On the TV set, select the CoreStation as a source. Here, you can switch the station memory slots with 3. Push the MENU button (24). -
Page 20: Surround" Menu
L for large speakers. The last number Note: The equalizer is inactive with some high-defini- stands for the subwoofer (1 = present, 0 = not pres- tion formats. ent). In 3.1 mode, a 0 stands for “not present” concerning surround (3rd position). • CoreStation... -
Page 21: Crossover
TV set is switched on and to standby with this function. With many TV sets, you can also adjust the You can find information on the recommended cross- volume of the CoreStation with the remote control of over frequency in the technical data of the respective your TV set. -
Page 22: D/E
Wireless Sub To connect a wireless subwoofer to the CoreStation: In the “System Setup” menu, select the submenu “Wireless” and then the menu item “Wireless Sub”. On the wireless subwoofer, start the process to estab- lish a connection (see the corresponding operating instructions). -
Page 23: Bluetooth Playback
The Bluetooth wireless transmission system has a range of approximately 10 metres, that can be de- creased by walls and furnishings. If the connection is cut off, the CoreStation will attempt to re-establish a connection until you select another source. Pairing 1. -
Page 24: Radio Playback
“Tuner” menu under “Mode” (see page 19). Station memory slots The CoreStation can save up to 30 stations. You can conveniently select the saved stations with the push of a button. Saving stations In the “Tuner”... -
Page 25: Software Update
2. Unpack the downloaded file and save all files con- tained to the USB stick. 3. Pull the mains plug of the CoreStation out of the socket and wait about 5 minutes. 4. Insert the USB stick into the SERVICE jack (8). -
Page 26: Troubleshooting
You cannot toggle the surround You are probably using a digital input. If a Dolby or DTS signal is received at configuration. this input, the CoreStation will automatically switch to the correct surround configuration. No sound is emitted from the... -
Page 27: Technical Data
Weight 3 kg Operating voltage 230 V~/50 Hz Max. power consumption 500 watts You can find further technical data on our website. Technical changes reserved! This product conforms with Council of the European Union guidelines 2004/108/EC and 2006/95/EC. • CoreStation... - Page 28 Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 No responsibility is assumed for the Bikini Berlin (toll-free) correctness of this information. Budapester Str. 44 Fax: +49 (0)30 - 300 930 930...
