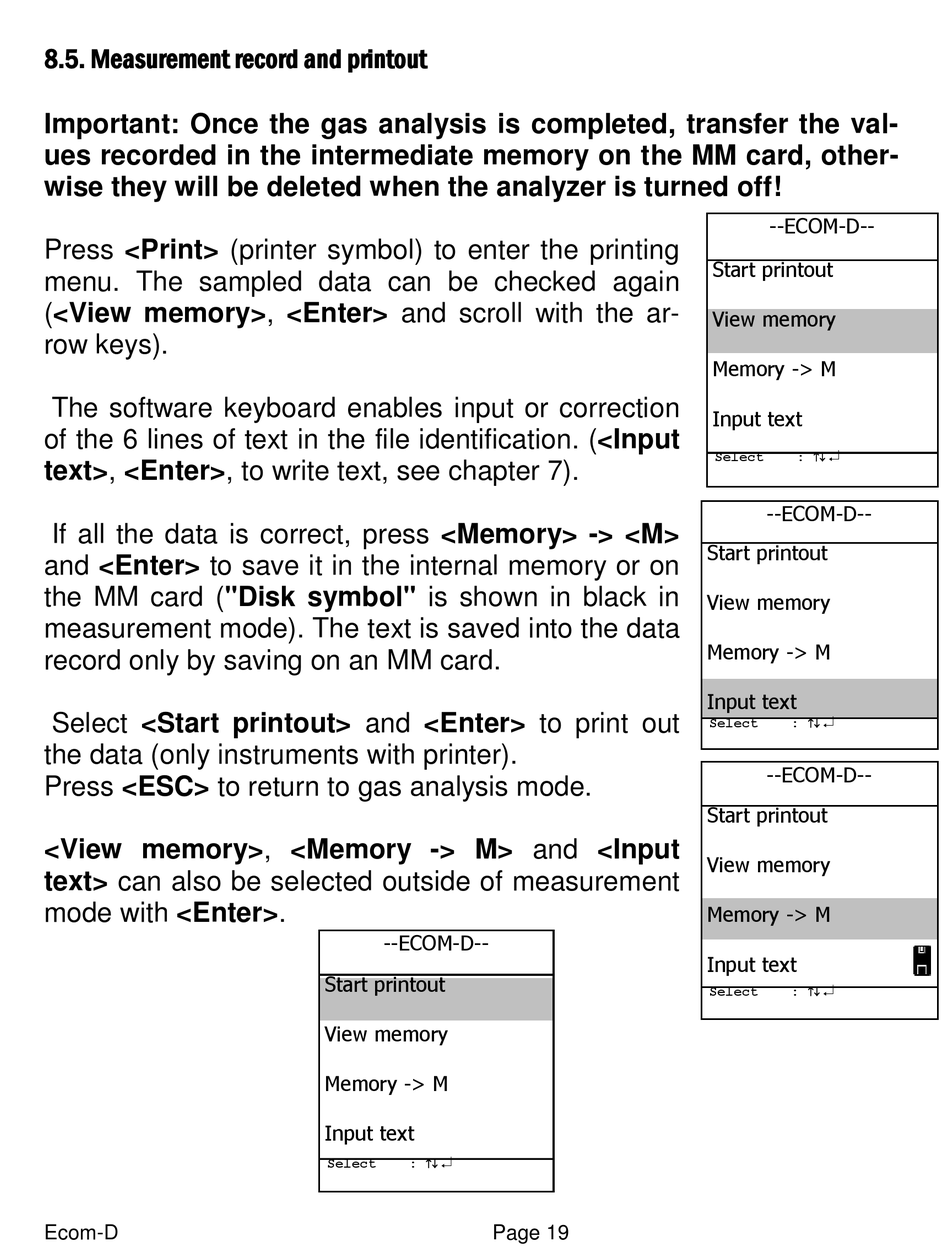

8.5. Measurement record and printout

Important: Once the gas analysis is completed, transfer the val-
ues recorded in the intermediate memory on the MM card, other-
wise they will be deleted when the analyzer is turned off!
Press <Print> (printer symbol) to enter the printing
menu. The sampled data can be checked again
(<View memory>, <Enter> and scroll with the ar-
row keys).
The software keyboard enables input or correction
of the 6 lines of text in the file identification. (<Input
text>, <Enter>, to write text, see chapter 7).
If all the data is correct, press <Memory> -> <M>
and <Enter> to save it in the internal memory or on
the MM card ("Disk symbol" is shown in black in
measurement mode). The text is saved into the data
record only by saving on an MM card.
Select <Start printout> and <Enter> to print out
the data (only instruments with printer).
Press <ESC> to return to gas analysis mode.
<View memory>, <Memory -> M> and <Input
text> can also be selected outside of measurement
mode with <Enter>.
Ecom-D
--ECOM-D--
Start printout
View memory
Memory -> M
Input text

Select :

Page 19
--ECOM-D--
Start printout
View memory
Memory -> M
Input text

Select :

--ECOM-D--
Start printout
View memory
Memory -> M
Input text

Select :

--ECOM-D--
Start printout
View memory
Memory -> M
Input text

Select :

