Analyzer Start-Up - Ecom -D Operating Instructions Manual

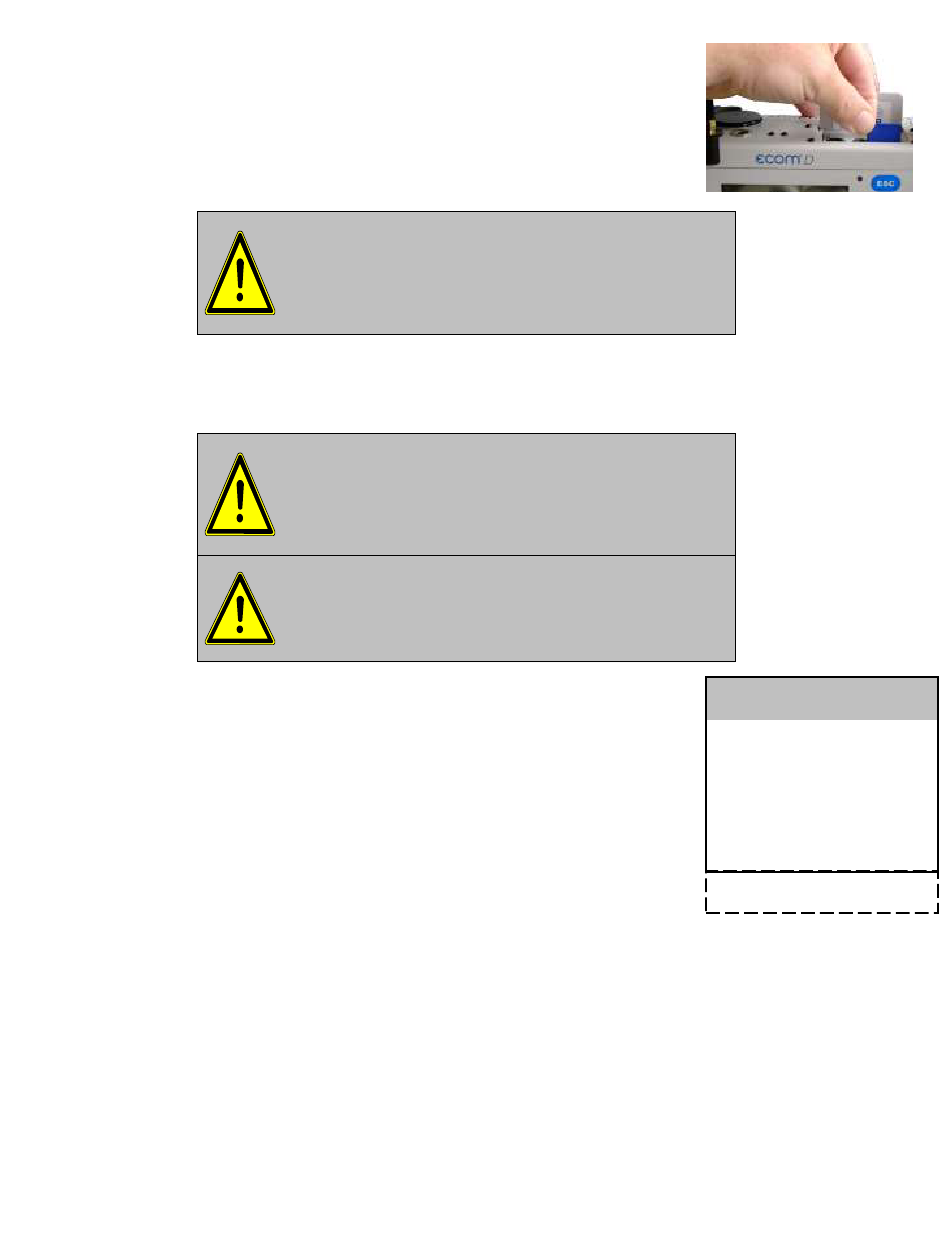

Inserting the card
Insert the multi-media card as shown. Make sure
that the card is inserted completely (so that none of
the card is seen) and is secured in place.

6. Analyzer Start-Up

Once the instrument is switched on (key <I/0>), the
main menu is displayed.
6 sub-menus with the following functions (non-
visible sub-menus can be viewed with the arrow
keys) are displayed:
- Gas analysis : Perform gas analysis
- Soot...Oil trace
- Data processing : Save measurements / Data transfer
- Adjustments
- Control
Page 8
Do not remove the card while opening/saving
This can cause damage to the card, card
reader, or data loss.
Always position the probe in the exhaust pipe
once the auto-zero phase is over!
Always use a filtering system as per our rec-
ommendation for combustion plants
firing solid combustibles!
: Input of soot measurement results
(Multi-media card required)
: Modify instrument settings
: Check operation state of instrument
data.
ECOM-D
Gas analysis
Soot..Oil trace
Data processing
Adjustments
Control
