Assembling the Cone

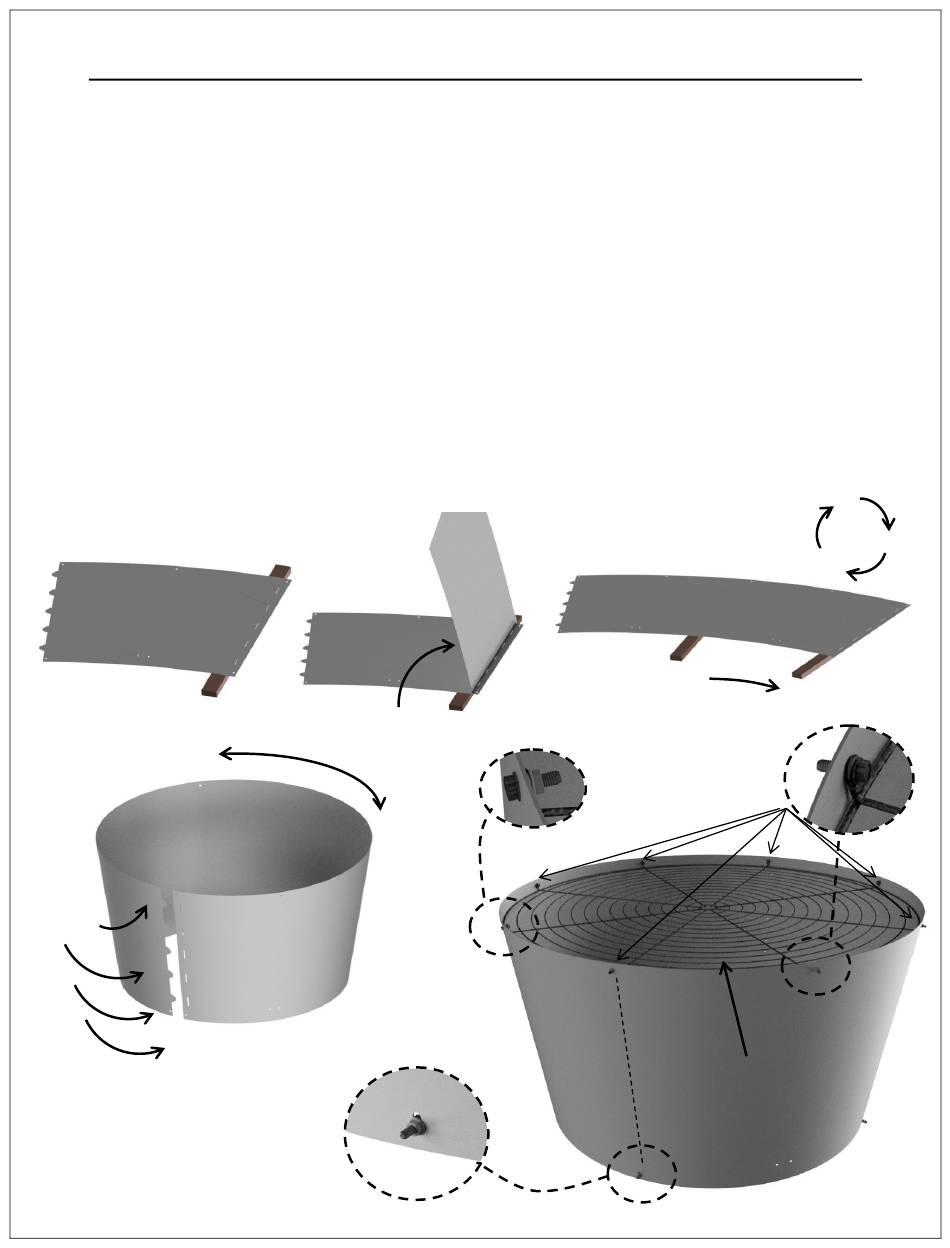

A) Lay one panel flat with the tabs oriented to the left. Place a 2x4 or similar underneath the
panel just left of the slots on the right side.
B) Place tabs of a second panel into the slots of the first and ensure they 'pop' together fully.
C) Lay this second panel flat then move the 2x4 over just to the left of the slots again.
D) Repeat these steps until all four panels are locked together.
E) Lift the panels up and curl them into a ring so that the larger diameter is upwards.
F) Snap the tabs of the first panel into the slots of the fourth panel.
a. Ensure all tabs are toward inside of cone!
G) Fasten all four bottom holes with (54287) bolts and (46764) nuts making sure the bolt
heads are on the inside of the cone and the threads are sticking to the outside.
H) Place the grill (56230) inside the cone and secure with eight more (46764) nuts and
(54287) bolts. Make sure seven of these bolts are oriented with the head inside the cone
and threads outside. The eighth bolt will be the bottom of the cone. It must be attached
with threads inside the cone and head outside the cone. It should not be on any of the four
seams between panels.
A
E
Tabs Toward Inside!
F
January 2018
B
Bottom Bolt Only
x4
G
C
x1
H
Seam between panels
D
Typical Bolt Condition
x7
Grill - #56230
MV2474A
