Attaching The Cable Assembly - Chore-Time Turbo Installation Manual

Attaching the Cable Assembly

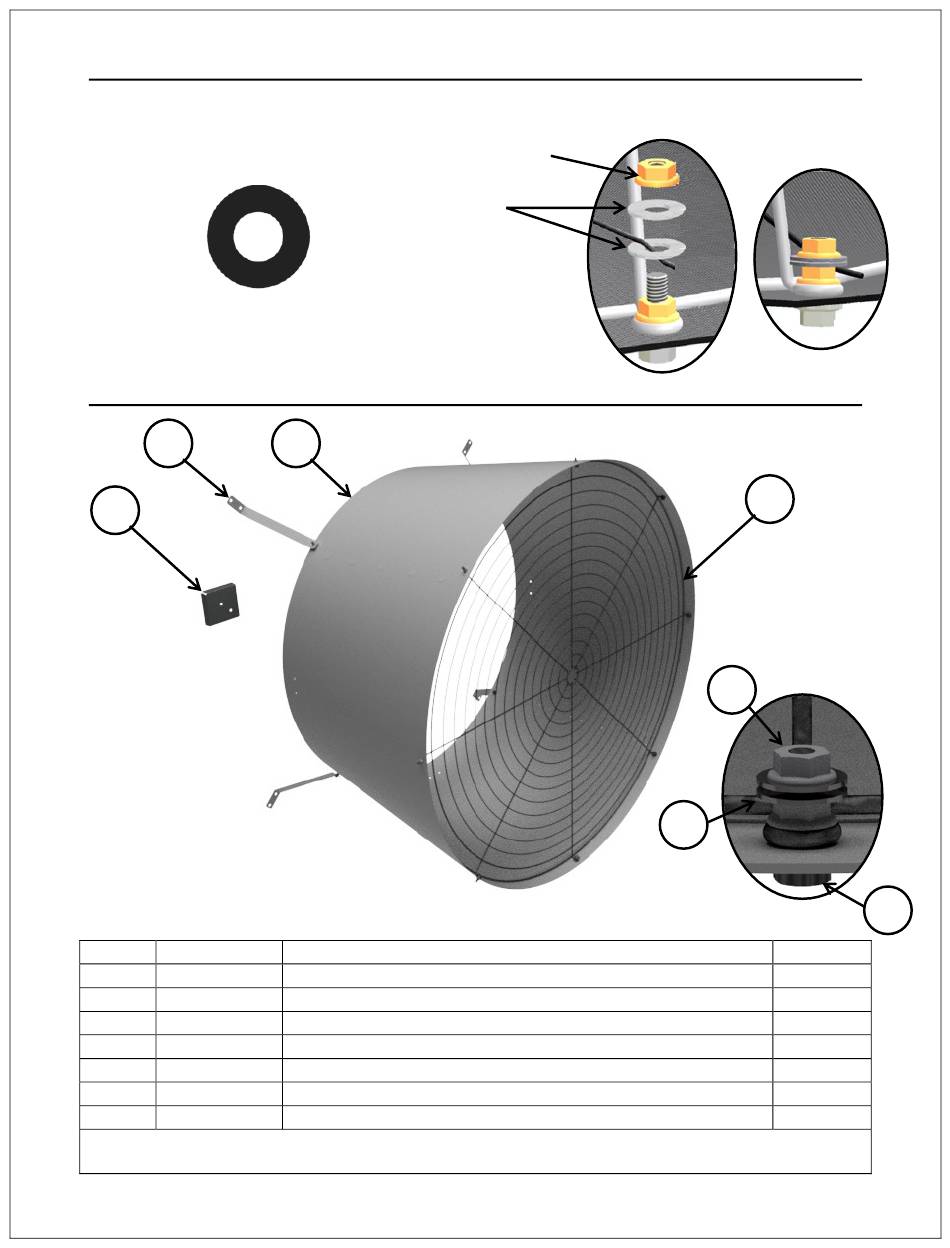

A) Secure the door stop cable assembly to the bottom bolt of the cone using two washers
(ST99070) and one nut (46764).
Full Scale Hardware
Part Numbers
2
4
Item Part No.
1 53184*
2 53185
3 56230
4 56255
5 46764
6 52784
7 ST99070
January 2018
Washer - #ST99070
1
CONE PANEL 52" FAN, 64" OD
BRACKET, 52" HYFLO TURBO CONE
TEMPLATE, 52" HYFLO TURBO 4 PC CONE
NUT, HX SERRATED FLANGE SS 5/16-18
BOLT, 5/16-18 X 1 HXWH SHLDR SS
-
All parts above can be ordered under kit number 56256*
*Add "B" to end of part number for black color option
Nut - #46764
Description
GRILL, 64" OD BLACK
WASHER, FLAT .38 SS
3
5
7
Qty.
4
4
1
1
25
1
2
MV2474A
6
