Mounting the Cone

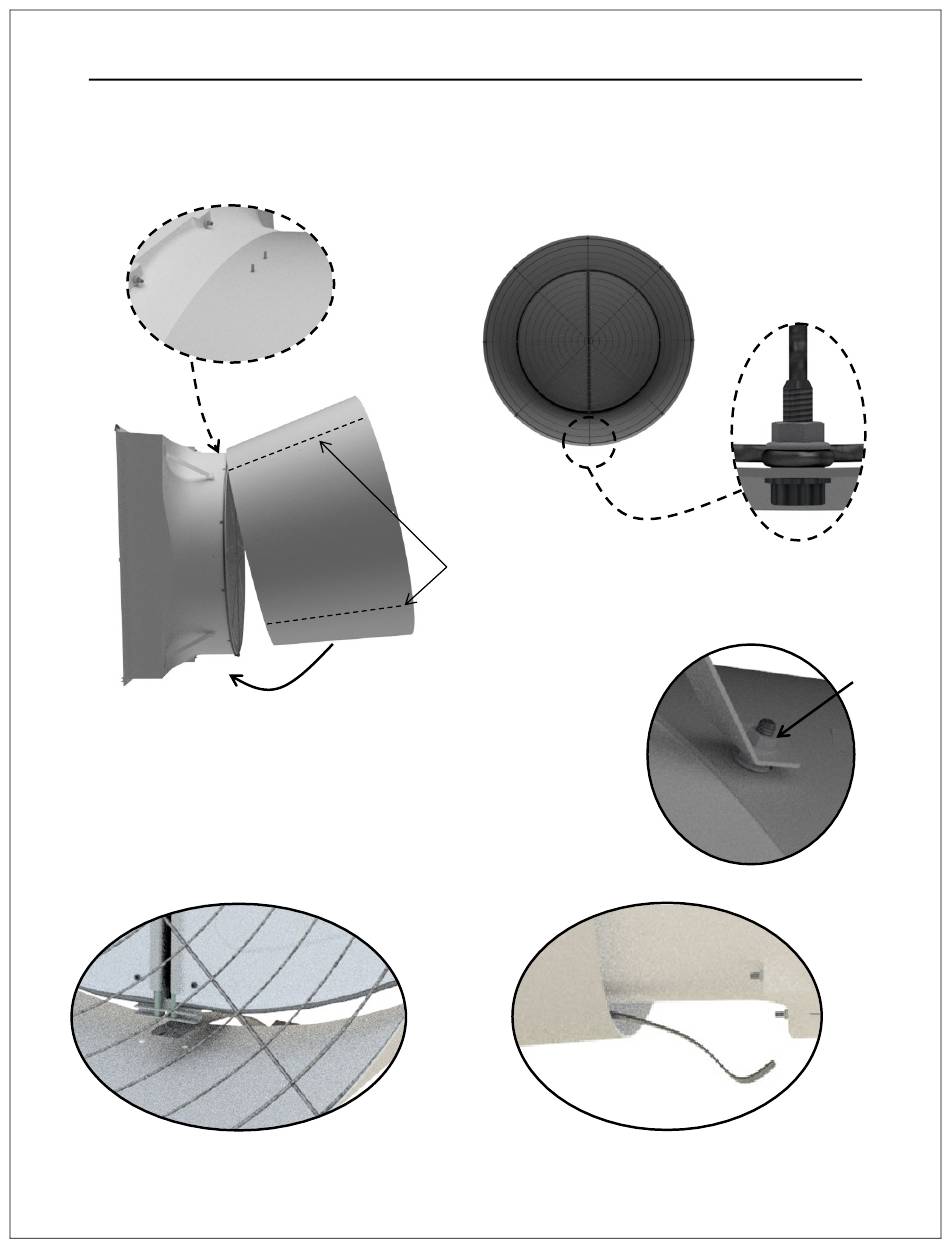

A) Pick up the assembled cone and hang it on the top two bolts. Make sure the four seams

are oriented towards the four corners of the fan shroud. The one bolt with threads toward

the inside of the cone should be at the bottom of the cone.

B) Fasten the top two corner brackets over the bolt threads and

secure using additional (46764) nuts.

C) With a thin piece of metal or a crowbar, work the cone

around the shroud orifice and over the bottom plate.

D) Secure the bottom two corner brackets with two additional (46764) nuts.

January 2018

Seams between panels

Bottom Bolt Condition

Nut - #46764

MV2474A
