- Page 1 CP-304 VGA to HDMI Video Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection Diagram ......3 8. -
Page 6: Introduction
1. INTRODUCTION The VGA to HDMI Video Scaler is designed to scale an analog video signal from a PC source to a digital HDMI output in a wide-range of HD and PC resolutions (up to 1080p/WUXGA). In addition to video scaling, the unit can convert an analog stereo audio input to digital and embed it in the HDMI output as 2-channel LPCM. -
Page 7: Operation Controls And Functions

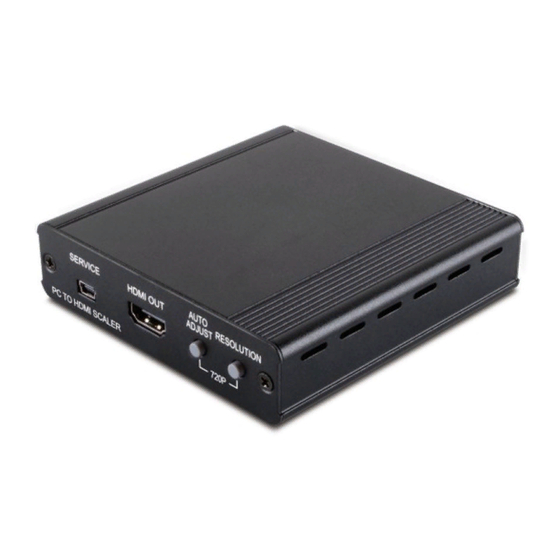

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUTO SERVICE HDMI OUT RESOLUTION ADJUST 720P PC TO HDMI SCALER SERVICE: Manufacturer use only. HDMI OUT: Connect the HDMI output to the HDMI input of a display or AV receiver. AUTO ADJUST Button: Press to auto adjust the image position when it does not fit the screen properly. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM PC or Laptop VGA Input Stereo Analog (D-sub 15-pin) Audio Input Power Supply DC 5V PC IN AUDIO IN AUTO SERVICE HDMI OUT RESOLUTION ADJUST 720P PC TO HDMI SCALER HDMI Output HDMI Display... -
Page 9: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Input Ports 1×VGA (D-sub 15-pin), 1×3.5 mm Mini-jack Output Port 1×HDMI Input Resolution Up to WUXGA (1920×1200@60RB) Output Resolution Up to 1080p & WUXGA (1920×1200@60RB) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 102 mm(W)×102 mm(D)×25 mm(H)/Jacks Excluded... -
Page 10: Supported Resolutions
8.2 Supported Resolutions INPUT (PC) OUTPUT (HDMI) VGA (640×480@60/72/75 Hz) Native SVGA (800×600@56/60/72/75 Hz) 640×480@60 Hz XGA (1024×768@60/70/75 Hz) 800×600@60 Hz XGA+ (1152×864@75 Hz) 1024×768@60 Hz 1280×720@60 Hz 1280×1024@60 Hz 1280×768@60/60 Hz (RB) 1600×1200@60 Hz 1280×800@60/60 Hz (RB) 1366×768@60 Hz 1280×960@60 Hz 1680×1050@60 Hz 1280×1024@60/75 Hz... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Widescreen Ultra eXtended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CP304...
