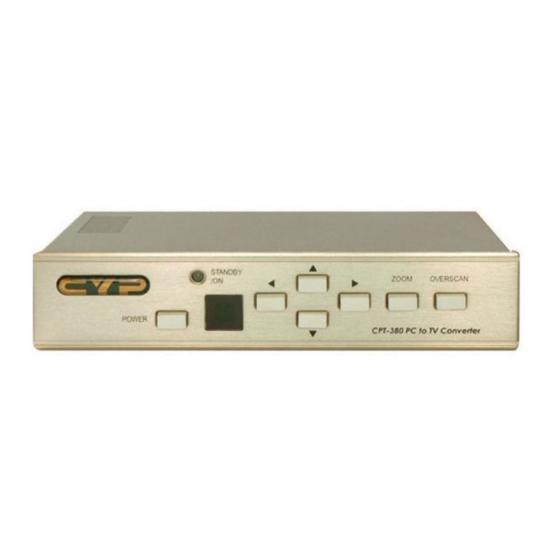

- Page 1 PC to TV Converter (CPT-380 RGB) Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 2 Introduction This unit is a PC to TV scaler converter, which is designed to convert a variety of computer images to interlaced NTSC / PAL / RGB or YUV. It is ideal for use in applications like video conferences, home theater, business presentation, lecturing room or viewing PC image on TV.
- Page 3 Operation Controls and Functions Front Panel 1. Power Button- This button is used to turn the unit on or standby. 2. Standby/On LED- This indicator illuminates in red when in STANDBY mode. The LED illuminates in green when the unit is in ON mode. 3.
- Page 4 Rear Panel 1. RS-232- Connect this port using a 9 Pin D-Sub connector. 2. RGB/YUV Output- This is the RGB/YUV output port. Connect the output port to your device using a HD-15 connector cable. 3. S-Video Output- This is the S-Video output port. Connect the output port to your device using a mini-din connector cable.
- Page 5 Remote Control 1. Power- This is the button used to turn the power On or Off. 2. Video setting adjustment- This button is used for the adjustment of picture contrast, brightness, colour and sharpness. 3. V-Reset- Press this button to reset picture adjustment to factory default values. 4.
-
Page 6: Software Installation
RS-232 Software operation PC OS: Windows 98/ME/2000/XP. Software Installation: 1. Place installation CD on CD-ROM Drive. 2. Execute setup.exe on installation CD. 3. OS maybe needs to update some files. Please restart the PC. After re-starting the PC, execute setup.exe again. 4. - Page 7 Software Operation 1. Close- Terminate application software. 2. Position/Pan and Size/Expand Adjustments- Position/Size for Underscan, Pan/Expand for Overscan. 3. Output Format- Select the output format desired- toggle through C-Video/S- Video, RGB or YUV. 4. Screen freeze- Still screen. 5. Video Settings- Contrast, brightness, colour and sharpness adjustment. Connection and Installation The AC adaptor power unit should not be plugged into a wall outlet until all connections are complete.
- Page 8 Specifications Input Terminal HD-15 R/G/B/H/V Input Resolution Common resolution lists: VGA @ 60 Hz up to 140 Hz refresh rate. SVGA @ 60 Hz up to 120 Hz refresh rate. XGA @ 60 Hz up to 85 Hz refresh rate. SXGA @ 60 Hz refresh rate.
-
Page 9: Pin Definition
Remote Control Protocol * The connection between the converter and the remote control is with a RS-232 modem cable. Pins definition of modem cable CPT-380-RGB Remote Controller Definition Definition T x D R x D R x D T x D S- 232 Transmission Format: Baud Rate: 9600 bps Data Bit: 8 bits...
