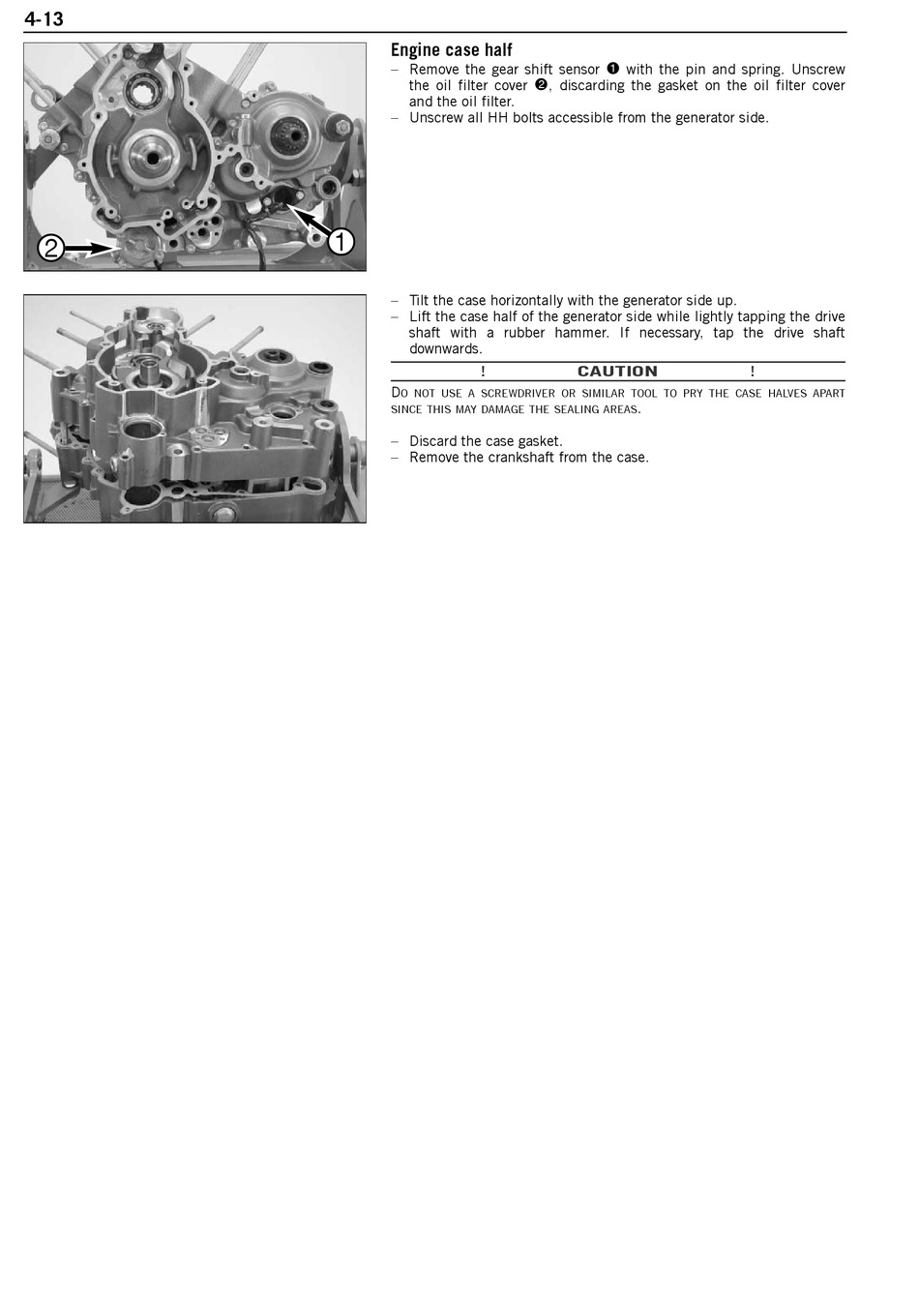

Engine case half

– Remove the gear shift sensor
the oil filter cover
and the oil filter.
– Unscrew all HH bolts accessible from the generator side.
1
– Tilt the case horizontally with the generator side up.
– Lift the case half of the generator side while lightly tapping the drive
shaft with a rubber hammer. If necessary, tap the drive shaft
downwards.
!
D
O NOT USE A SCREWDRIVER OR SIMILAR TOOL TO PRY THE CASE HALVES APART
SINCE THIS MAY DAMAGE THE SEALING AREAS
– Discard the case gasket.
– Remove the crankshaft from the case.
with the pin and spring. Unscrew
1
, discarding the gasket on the oil filter cover
2
CAUTION
.
!
