Thinklogical VelocityKVM-5 Product Manual page 24

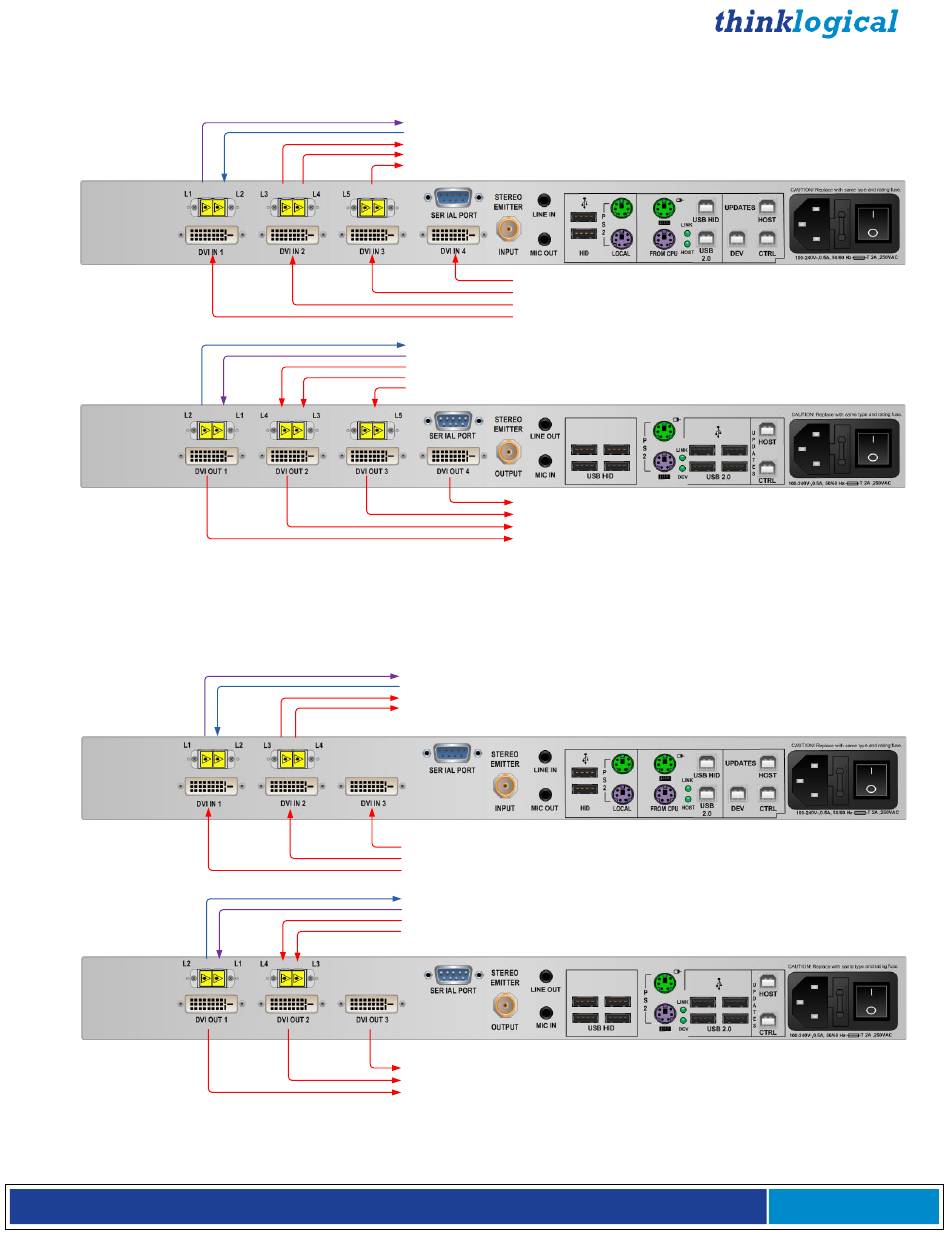

Velocity-34 KVM Multi-Mode Extender
DVI, 4 Display
Transmitter
VEL-W00M34-LCTX
Receiver
VEL-W00M34-LCRX
Velocity-35 KVM Multi-Mode Extender
DVI, 3 Display
Transmitter
VEL-W00M35-LCTX
Receiver
VEL-W00M35-LCRX
V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v .
L1 Fiber: Data Tx to Rx & Video 1
L2 Fiber: Data Rx to Tx
L3 Fiber: Video 2
L4 Fiber: Video 3
L5 Fiber: Video 4
DVI IN 4 (from source)
DVI IN 3 (from source)
DVI IN 2 (from source)
DVI IN 1 (from source)
L2 Fiber: Data Rx to Tx
L1 Fiber: Data Tx to Rx & Video 1
L4 Fiber: Video 3
L3 Fiber: Video 2
L5 Fiber: Video 4
DVI OUT 4
DVI OUT 3
DVI OUT 2
DVI OUT 1
L1 Fiber: Data Tx to Rx & Video 1
L2 Fiber: Data Rx to Tx
L3 Fiber: Video 2
L4 Fiber: Video 3
DVI IN 3 (from source)
DVI IN 2 (from source)
DVI IN 1 (from source)
L2 Fiber: Data Rx to Tx
L1 Fiber: Data Tx to Rx & Video 1
L4 Fiber: Video 3
L3 Fiber: Video 2
DVI OUT 3
DVI OUT 2
DVI OUT 1
C , F e b r u a r y , 2 0 1 7 Page 23
