REVO-TC / TU-RS485-PNT0TCMxx Communication Manual

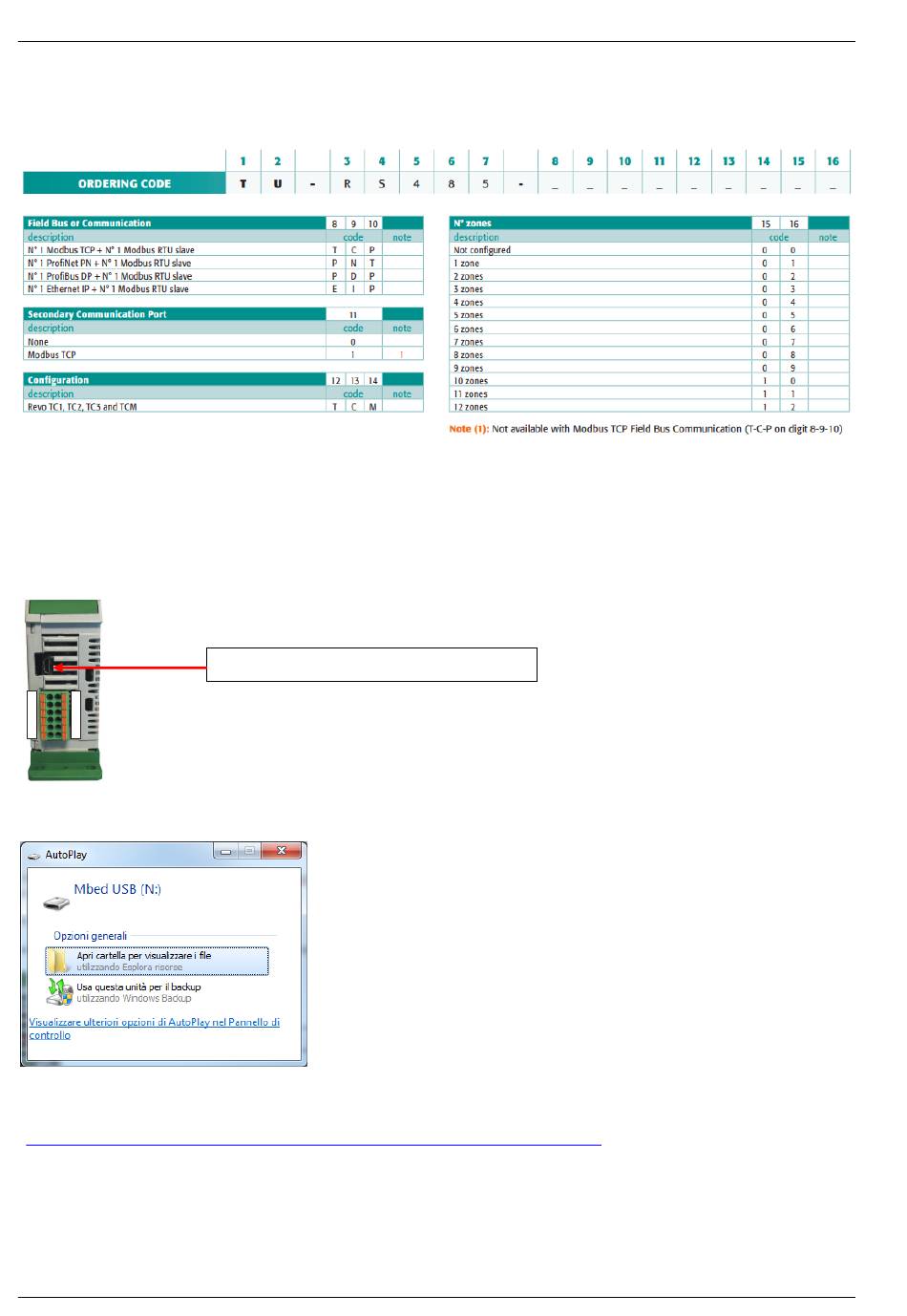

4 Who to set right configuration

The field bus module can be order configurated with right number of zone or empty

To set the right zone number is enough connect the usb cable to a PC and copy the right

configuration file.

The procedure is:

1) connect a PC with a micro USB and connect to service port

2) Will appear a USB disk that contain the actual configuration or empty if not configurated

3) copy and paste the right configuration file

you can download the file from web site

https://www.cdautomation.com/it/products/cd-automation-marchio/

4) when the file copy is finish remove USB cable

5) switch off and switch on the TU-RS485-TCM module communication board

USB Service port
