REVO-TC / TU-RS485-PNT0TCMxx Communication Manual

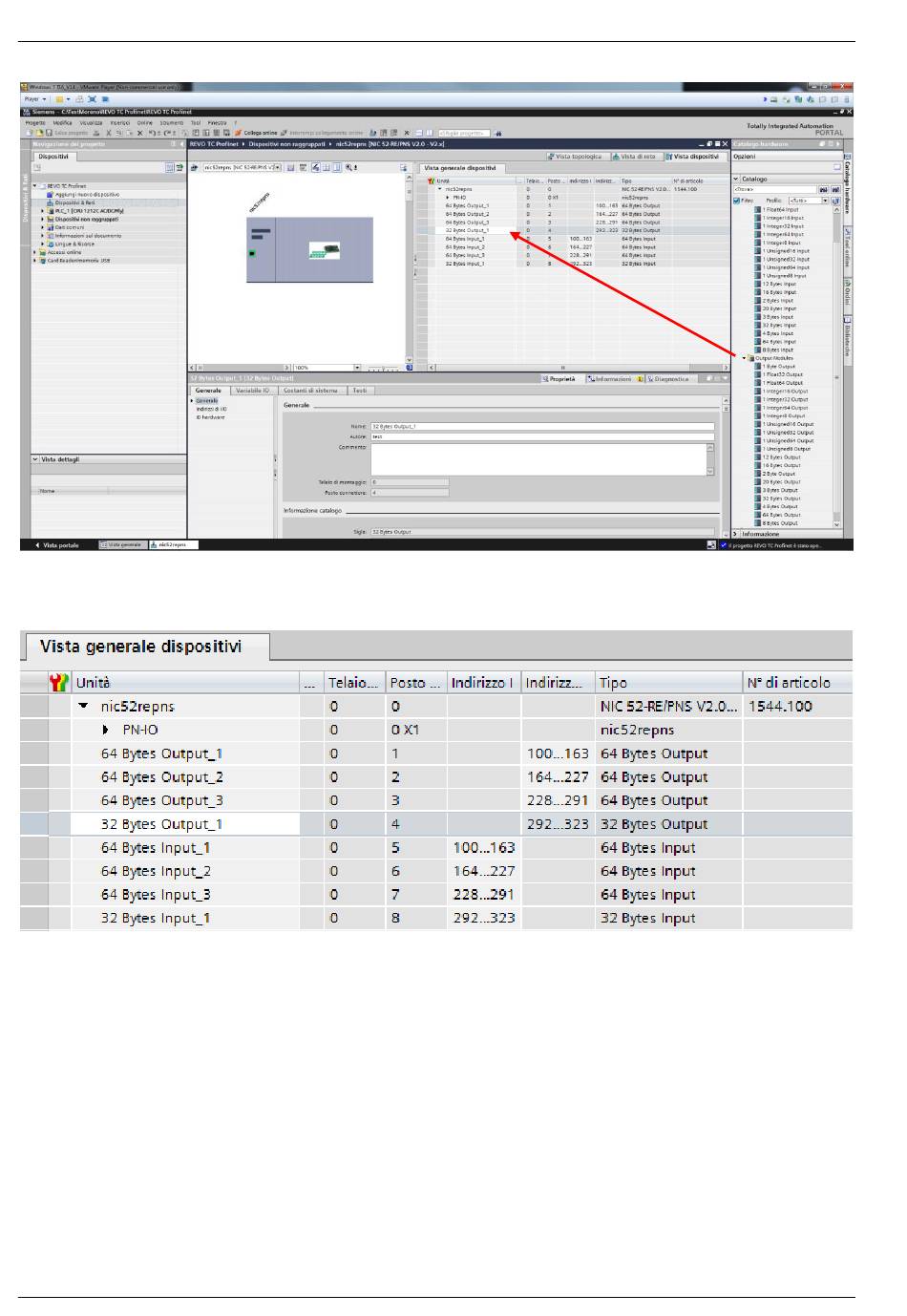

Set output and Input with drag and drop
NOTE:
The module must have the right sequence
Is important the position, and the:
•
Position 5 must be 64 Bytes Out
•
Position 6 must be 64 Bytes Out
•
Position 7 must be 64 Bytes Out
•
Position 8 must be 32 Bytes Out
•
Position 5 must be 64 Bytes IN
•
Position 6 must be 64 Bytes IN
•
Position 7 must be 64 Bytes IN
•
Position 8 must be 32 Bytes IN
6
