Avaya J139 Quick Reference

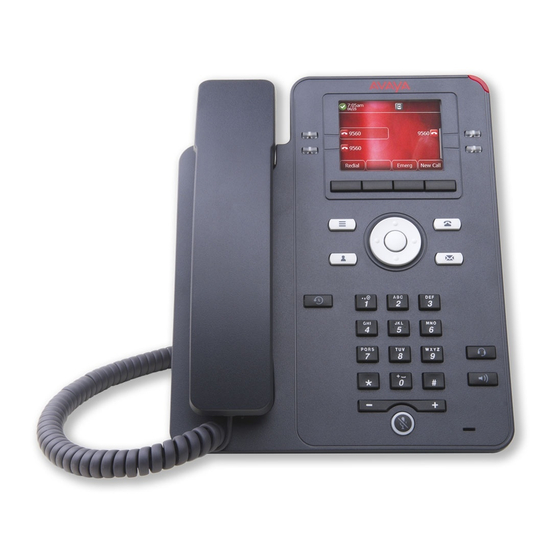

Avaya J139 IP Phone SIP

Quick Reference

Navigation

Main Menu

The following table lists the Main Menu icons used in
Avaya J139 IP Phone:
Icons Name Description
Features To access administrator
activated features.
Applications • To access phone
applications such as
Contacts, Recents, and
activate screen saver.
• To sign off the phone,
and to protect your
settings.
Settings To change your phone
settings, customize
button labels, adjust
brightness, audio
settings, assign speed
dial entries, and more.
Network To check network
Information settings.
Administration To access administration
settings.
Icons
Release 3.0
Issue 1
June 2018
General phone icons
©
2018, Avaya Inc.
All Rights Reserved.
The following table lists the icons used in Avaya J139 IP
Phone:
Icon
Table continues...
Name Description
About To display the phone
software version.
Description
Microphone is muted.
Missed call on your phone.
Incoming call; indicates you have
answered this call.
Outgoing call; indicates you have
made this call.
Incoming call is alerting.
Call is active.
Call is on hold.
Call redirection
Conference is active.
Conference is on hold.
Table continues...
Icon Description
Use the Right or Left navigation arrow
to see more pages/screens/options.
Scroll left for other options.
Scroll right for other options.
Indicates that the phone is not
connected to the Session Manager
and is operating in "failover" mode.
Some features might not be available
or work correctly.
If the appearance line displays the
icon, the icon indicates that the phone
has encountered a failure and has
preserved the media session until the
near user hangs up. Icon also
indicates non-AST mode.
The EC500 feature is on.
Indicates that the call is using a
wideband codec for excellent voice
quality.
Indicates a low network performance
or presence of local network issues
that might result in lower call quality.
Indicates that the SLA Mon
has taken control of the phone.
Indicates that the call is being
recorded for SLA Mon
Indicates that the end to end call is
secured.
Indicates that the ringtone is off.

Getting started

Entering the file server address
Use this procedure to enter the file server address if the
phone prompts. For example, when you connect the
phone to the network for the first time.
™
