Pved-Cc Series 5 - Danfoss PVG 16 Service And Parts Manual

Service and Parts Manual
PVG 16/32/128/256
Installation
Pin layout for PVEP
Type Connector
PVEP 2x4 AMP
2x4 DEUTSCH
1
Internally connected
32 | © Danfoss | October 2018

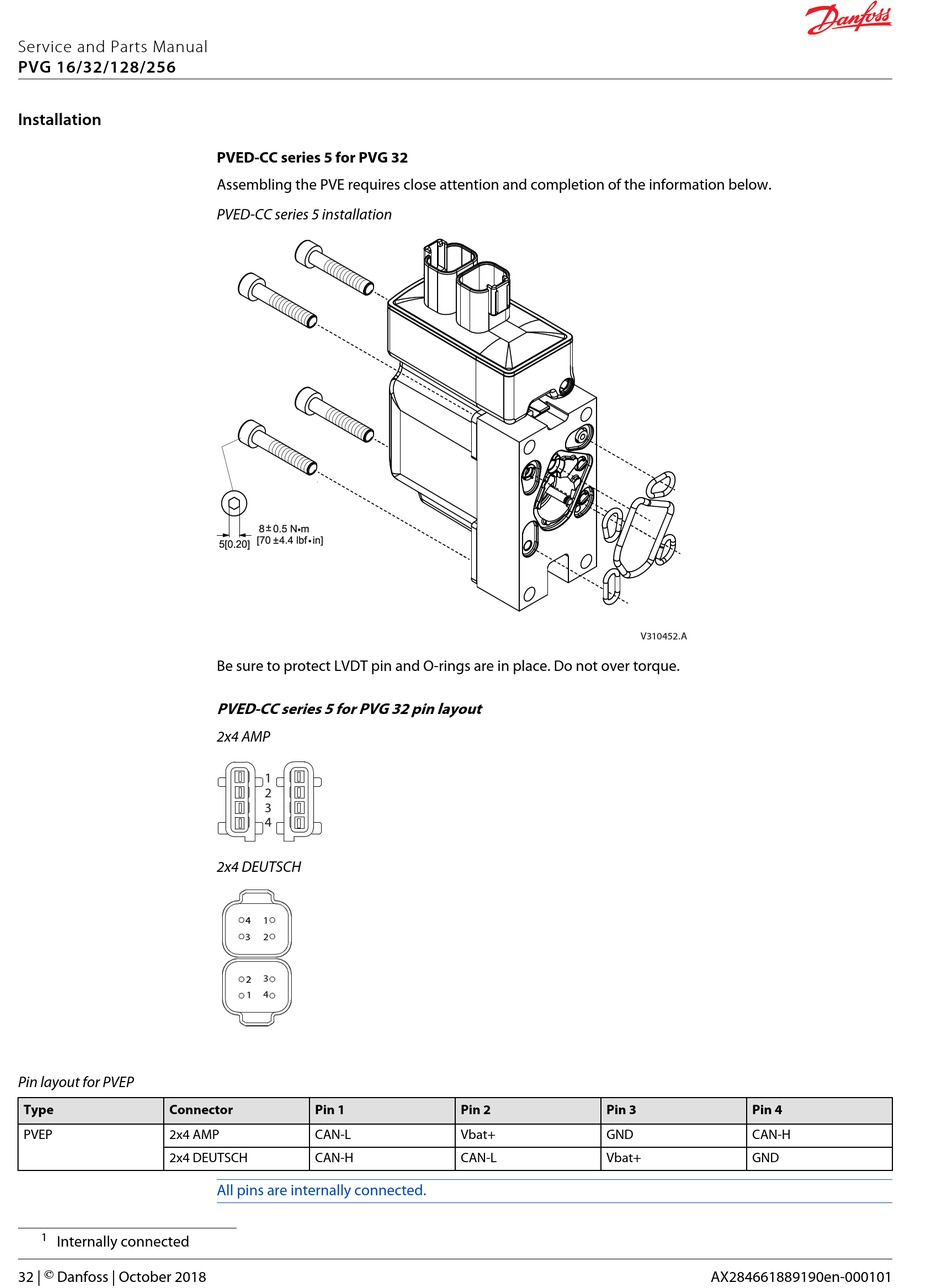

PVED-CC series 5 for PVG 32
Assembling the PVE requires close attention and completion of the information below.
PVED-CC series 5 installation
Be sure to protect LVDT pin and O-rings are in place. Do not over torque.
PVED-CC series 5 for PVG 32 pin layout
2x4 AMP
1
2
3
4
2x4 DEUTSCH
4 1
3 2
3
2
4
1
Pin 1
CAN-L
CAN-H
All pins are internally connected.
V310 452.A
V310452.A
Pin 2 Pin 3
Vbat+ GND
CAN-L Vbat+
Pin 4
CAN-H
GND
AX284661889190en-000101
