1. Description

1.1 Introduction

This document describes the integration of Modbus TCP systems with BACnet ASHRAE 135 –
2001 Annex J - BACnet protocol compatible devices or systems using the gateway
IntesisBox BACnet/IP Server - Modbus TCP Master.
This document assumes that the user is familiar with Modbus TCP and BACnet/IP technology
and technical terms.
From now on, and with the aim of easy the read of this document, the words "gateway" or
"IntesisBox" are used instead of IntesisBox BACnet/IP Server - Modbus TCP Master. Any
other use of the word "gateway" not meaning IntesisBox BACnet/IP Server - Modbus TCP
Master will be specifically indicated.
The aim of this integration is to make accessible Modbus TCP system signals and resources
from a BACnet/IP based control system or device, as if it was a part of the own BACnet
system and vice-versa. For this, the gateway acts as a BACnet/IP Server device in its
BACnet interface, allowing other BACnet/IP devices to perform subscription (COV) requests,
and also read and write its internal points. From the Modbus TCP system point of view,
IntesisBox simulates a Modbus master device, the readings of the Modbus TCP slave
device(s) is performed by IntesisBox by automatic continuous polling.
BACnet IP
client
BACnet IP
client
LinkBoxBacnet
configuration
software

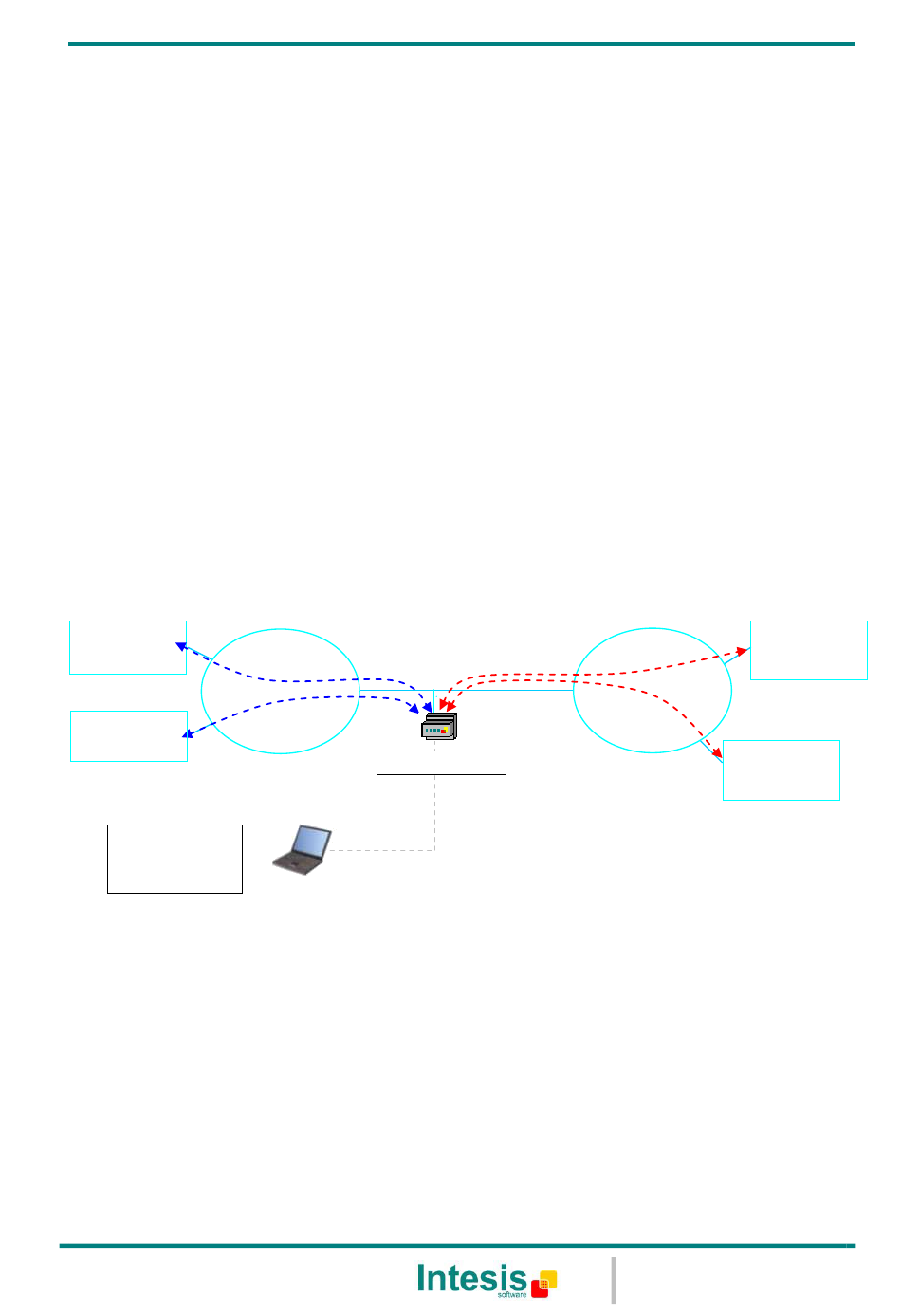

Figure 1.1 Integration of Modbus TCP and BACnet/IP using IntesisBox BACnet/IP
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
BACnet IP
Ethernet
LAN
TCP/IP
IntesisBox
RS232
Only needed for configuration
Server - Modbus TCP Master gateway
User's Manual r1 eng
Modbus
TCP
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
Modbus
slave
Modbus
slave
