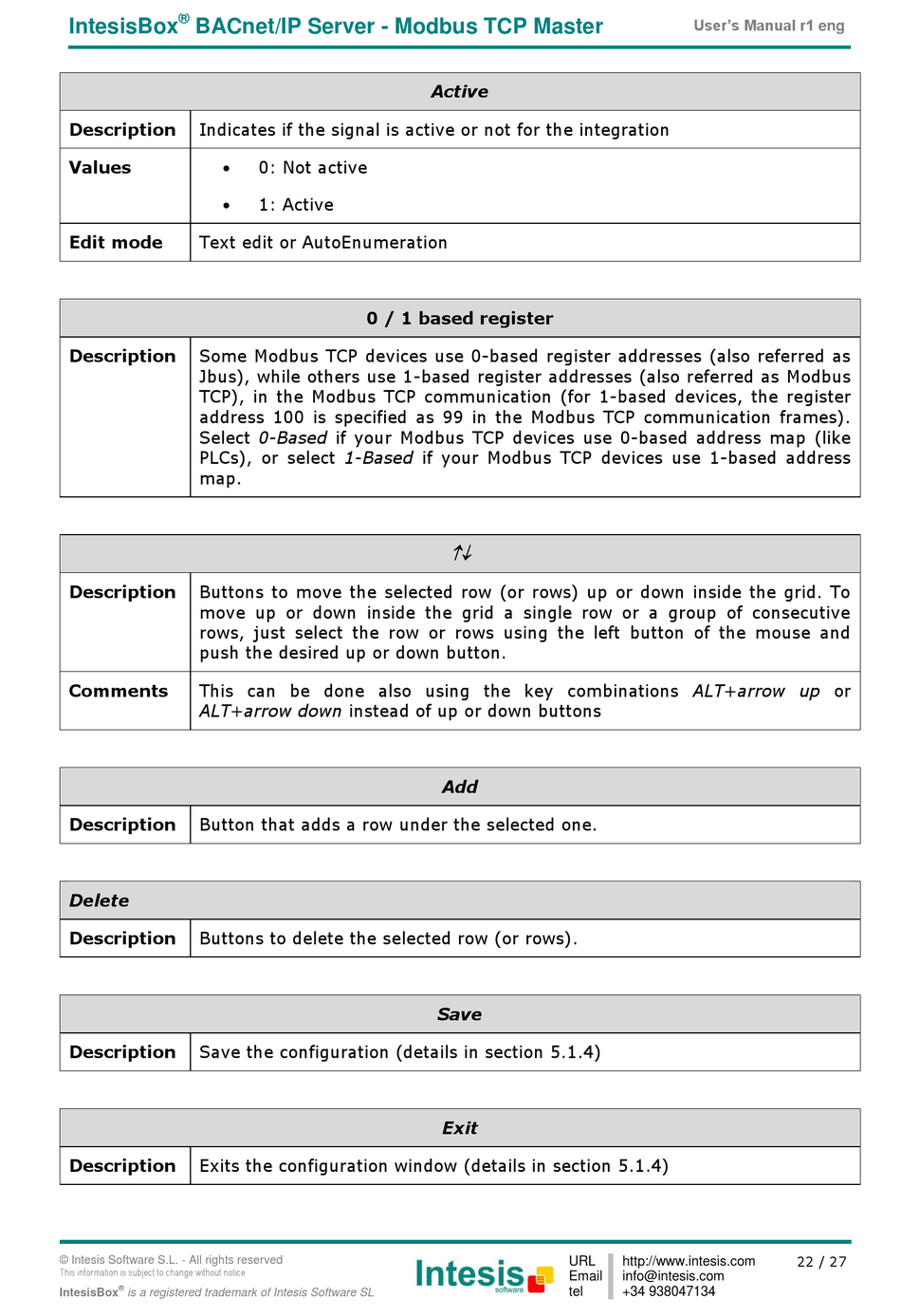

IntesisBox IBOX-BAC-MBTCP-100 User Manual page 22

®
IntesisBox BACnet/IP Server - Modbus TCP Master
Description Indicates if the signal is active or not for the integration
Values 

Edit mode Text edit or AutoEnumeration
Description Some Modbus TCP devices use 0-based register addresses (also referred as
Jbus), while others use 1-based register addresses (also referred as Modbus
TCP), in the Modbus TCP communication (for 1-based devices, the register
address 100 is specified as 99 in the Modbus TCP communication frames).
Select 0-Based if your Modbus TCP devices use 0-based address map (like
PLCs), or select 1-Based if your Modbus TCP devices use 1-based address
map.
Description Buttons to move the selected row (or rows) up or down inside the grid. To
move up or down inside the grid a single row or a group of consecutive
rows, just select the row or rows using the left button of the mouse and
push the desired up or down button.
Comments This can be done also using the key combinations ALT+arrow up or
ALT+arrow down instead of up or down buttons
Description Button that adds a row under the selected one.
Delete
Description Buttons to delete the selected row (or rows).
Description Save the configuration (details in section 5.1.4)
Description Exits the configuration window (details in section 5.1.4)
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
0: Not active
1: Active
0 / 1 based register
Active

Add
Save
Exit
