IntesisBox BACnet/IP Server - Modbus TCP Master
 Device: Enter the BACnet device number for the gateway (must be unique inside the
BACnet system).
 Device Name: Select the BACnet device name for the gateway (by default "Modbus
TCP Gateway"). This name will be collected by BACnet browsers among others.
 Version: Select the gateway model used: tiny,basic or extended. You can check the
gateway model in the identification given by the device when it connects to
LinkBoxBacnet, it appears in the IntesisBox Communication Console window once
connected to the gateway
IntesisBox_Bacnet_Modbus TCP-100...
IntesisBox_Bacnet_Modbus TCP-A...
IntesisBox_Bacnet_Modbus TCP-B...
Modbus TCP interface configuration parameters:
 Devices: List of Modbus TCP slave devices to communicate to. Check the devices
you want to activate. Select a device to configure its properties.
 +/- : Use this button to define the number of Modbus TCP slave devices to
communicate to (Up to 254 devices)
For every Modbus TCP device defined, the following properties must be entered:
 IP: IP of each slave device
 Port: Port of each slave device
 Name: Enter the device name (optional, just for identification purposes).
 Timeout between Connections (ms): time to wait before retrying the connection
again if it failed
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

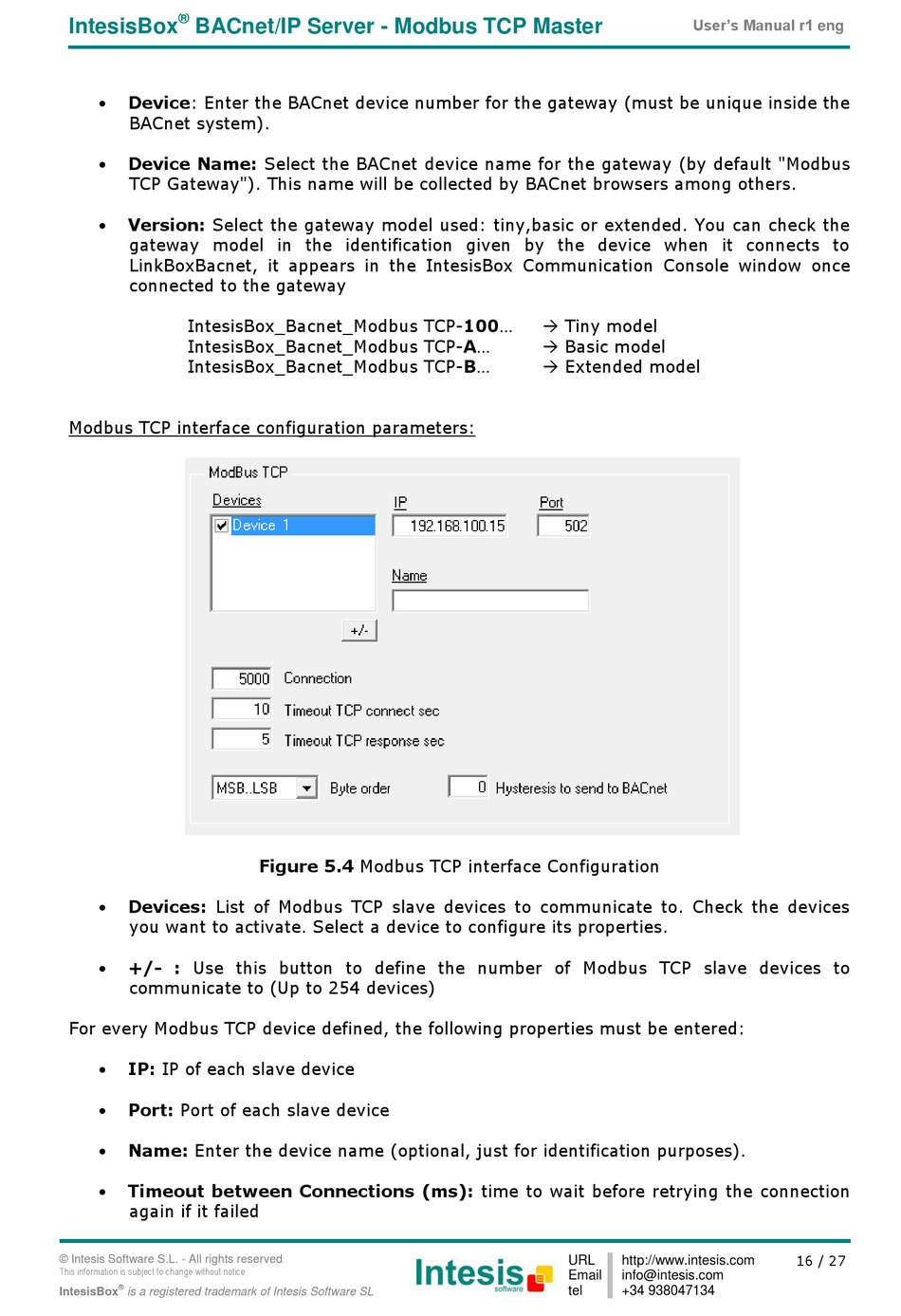

Figure 5.4 Modbus TCP interface Configuration
User's Manual r1 eng
 Tiny model
 Basic model
 Extended model
